3.4.7 Connecting rod - top and bottom end bearings

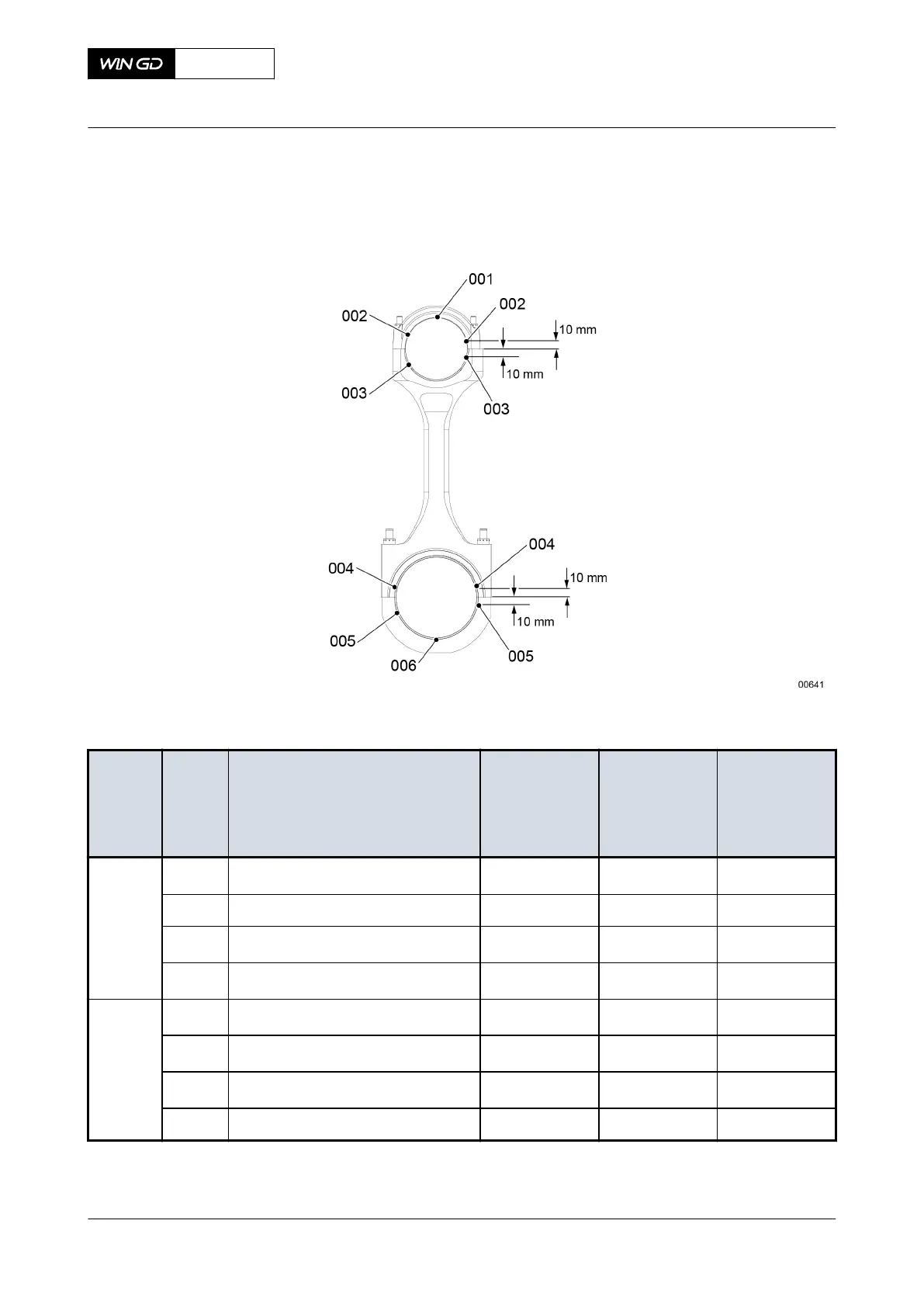

Fig 3-9 Connecting rod - top and bottom end bearings
Tab 3-9 Connecting rod - top and bottom end bearings
Location
code
Key Item Measured di-
rection
Nominal di-
mension (usu-
al, new) [mm]
Maximum
clearance di-
mension (be-
cause of wear)
[mm]
3303,
3326
Top end bearing
001 Bearing clearance Vertical 0.50 to 0.70 0.9
*002 Lateral clearance Total 0.45 to 0.65
*003 Lateral clearance Total 0.35 to 0.60
3303 Bottom end bearing
004 Bearing clearance Vertical 0.55 to 0.75
0.95
*005 Lateral clearance Total 0.55 to 0.80
*006 Lateral clearance Total 0.55 to 0.80
NOTE: * = Measure the lateral clearances at the locations shown.
