17 Torque symmetrically the bolts (002) to the correct value, refer to section 16.1
Tightening instructions.
18 Put the bolts (001) in position in the top cylinder half.
19 Torque the bolts (001).

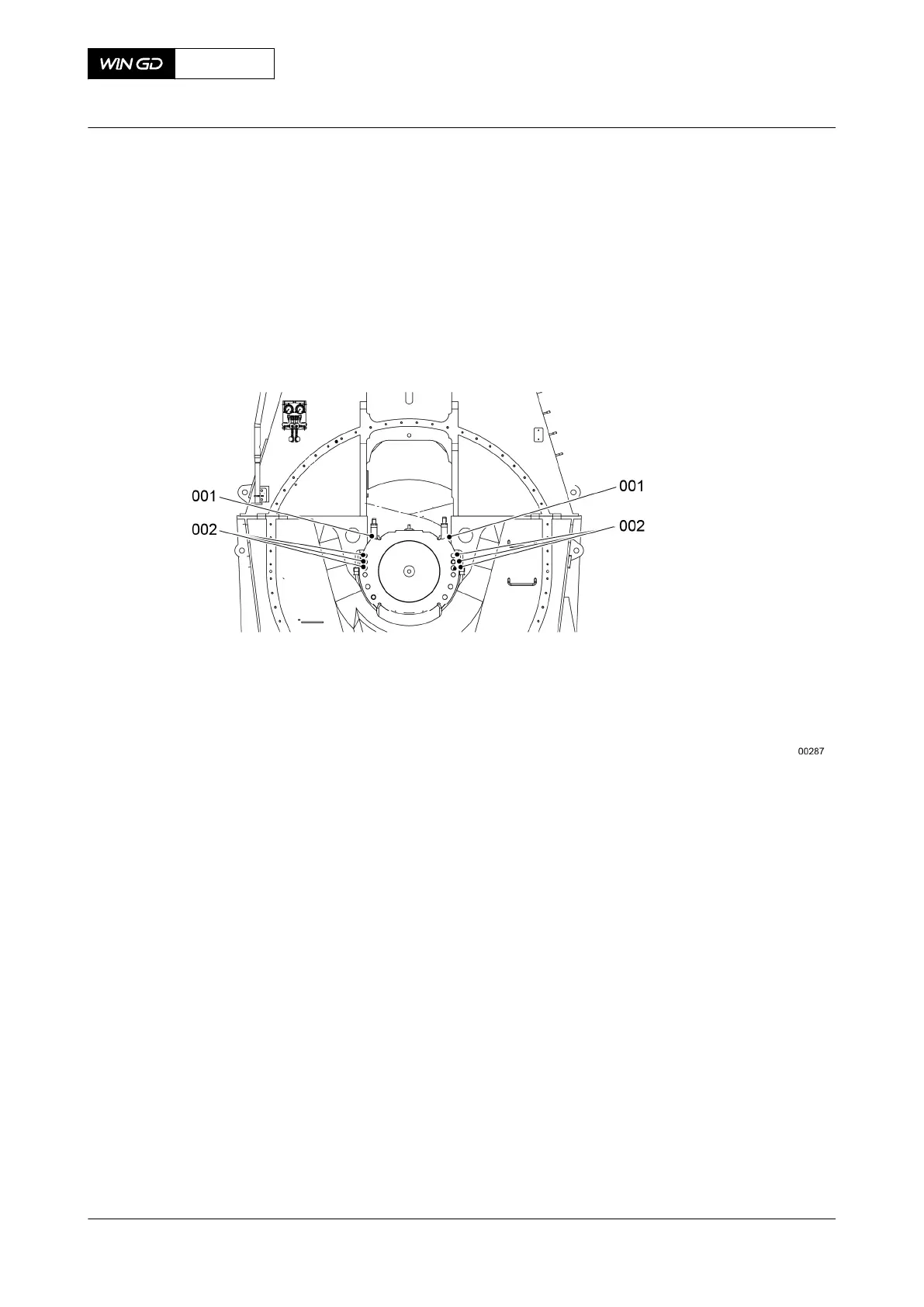

Fig 8-11 Axial vibration damper - bolts
20 Install the pipes (002, Figure 8-12).
21 Install the oil supply pipe (003).
22 Connect the two cables (001).
23 Install the housing (004).
X72DF
AA00-3140-00AAA-710A-A
Maintenance Manual Axial vibration damper - assemble
Winterthur Gas & Diesel Ltd.
- 369 - Issue 002 2020-10
