PROCEDURE
CAUTION
Damage Hazard: The surfaces of the cylinder liner and the nozzle tip make a metallic
seal. The seat angles in the cylinder liner and on the nozzle tip are different. Do not use a
gasket between the cylinder liner and the nozzle tip. This could cause damage to the
equipment.
1 Make sure that the sealing surfaces (001, Figure 7-15) are clean and have no damage.
NOTE: If a component of the lubricating quill is defective, you must replace all
components of the lubricating quill.

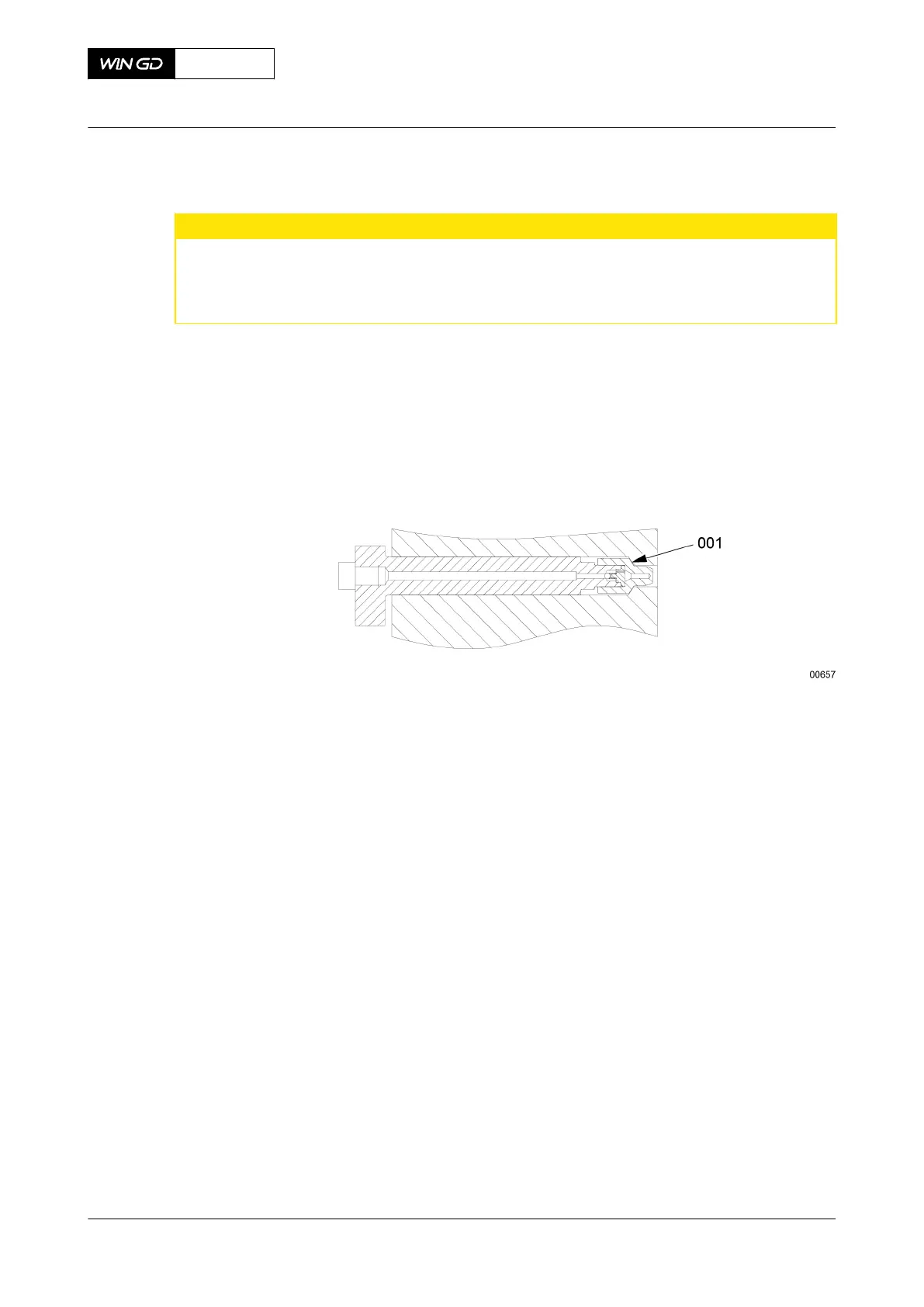

Fig 7-15 Sealing surface
2 Apply oil to the threads of the screws (004, Figure 7-16).
3 Attach the lubricating quill (003) to the cylinder liner (001) with the screws (004).
4 Torque the screws (004) to the related value, refer to section 16.1 Tightening
instructions.
5 Remove the plugs from the pipe (002).
6 Attach the pipe (002) to the lubricating quill (003).
7 Tighten the nuts (005) of the unions.
X72DF
AA00-2138-00AAA-720A-A
Maintenance Manual Lubricating quill - install
Winterthur Gas & Diesel Ltd.
- 199 - Issue 002 2020-10
