WinGD X72DF - HP Fuel Pipe - Removal

PROCEDURE
1 Remove the four screws (008, Figure 13-8) from the flange (007).
2 Remove the four screws (003) from the flange (004).
3 Carefully remove the HP fuel pipe (001) from the injection valve (009) and the and flow
limiting valve (005).
4 Apply protection to the sealing faces (002, 006) and the open ends of the HP fuel pipe
(001).

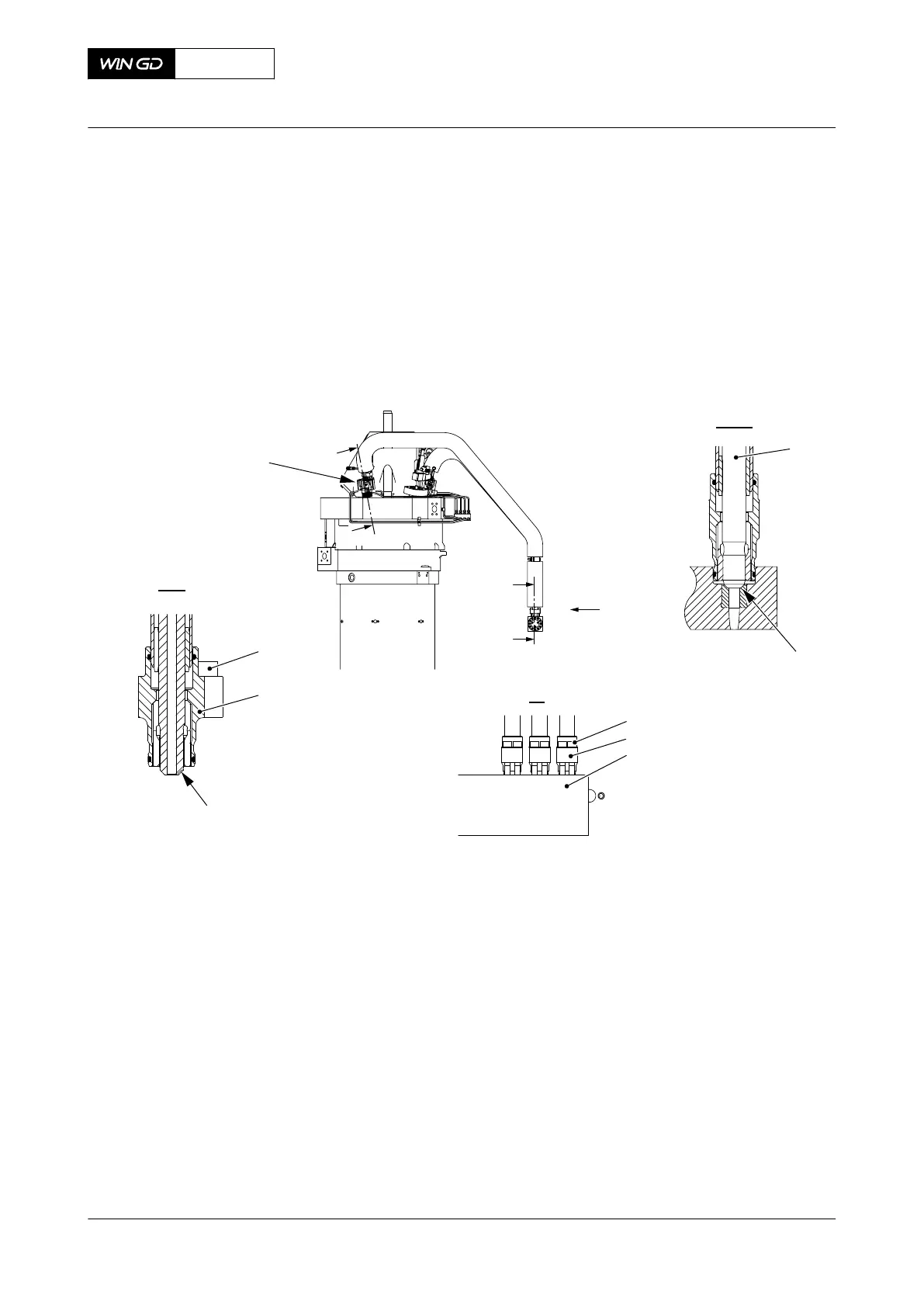

Fig 13-8 HP fuel pipe - removal
I
001
00555
I
II
II
III
I - I
III
II - II
008
003
002
007
006
005
004
009
CLOSE UP
• None
X72DF
AA00-8733-00AAA-520A-A
Maintenance Manual HP fuel pipe (fuel rail to injection valve) - remove
Winterthur Gas & Diesel Ltd.
- 747 - Issue 002 2020-10
