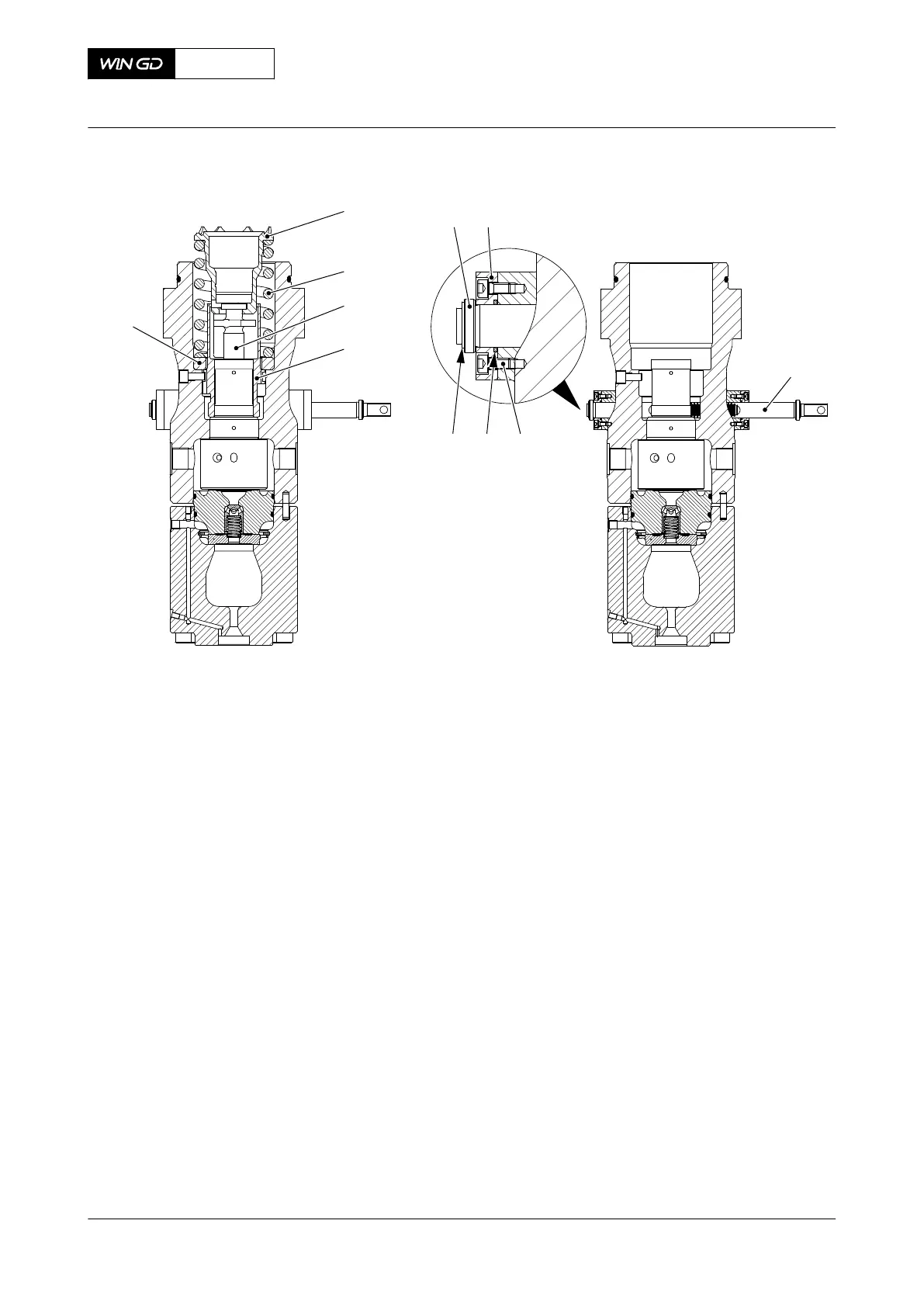

Fig 10-10 Toothed rack removal
008
002
009
003
010
004
006
005
007
00424
011
001
3 To remove the toothed rack, do the steps that follow:
3.1 Disassemble the bottom spring carrier (001, Figure 10-10) together with the
pump plunger (003).
3.2 Put the pump plunger (003) in a dry, clean area to prevent damage.
3.3 Remove the compression spring (002).
3.4 Remove regulating sleeve (004) together with the top spring carrier (005).
3.5 Remove the screws (008).
3.6 Remove the circlip (010) and the stop ring (006).
3.7 Remove the flange (007) together with the rod seal ring (009).
3.8 Push out the toothed rack (011).
X72DF
AA00-5556-00AAA-530A-A
Maintenance Manual Fuel pump - disassemble
Winterthur Gas & Diesel Ltd.
- 557 - Issue 002 2020-10
