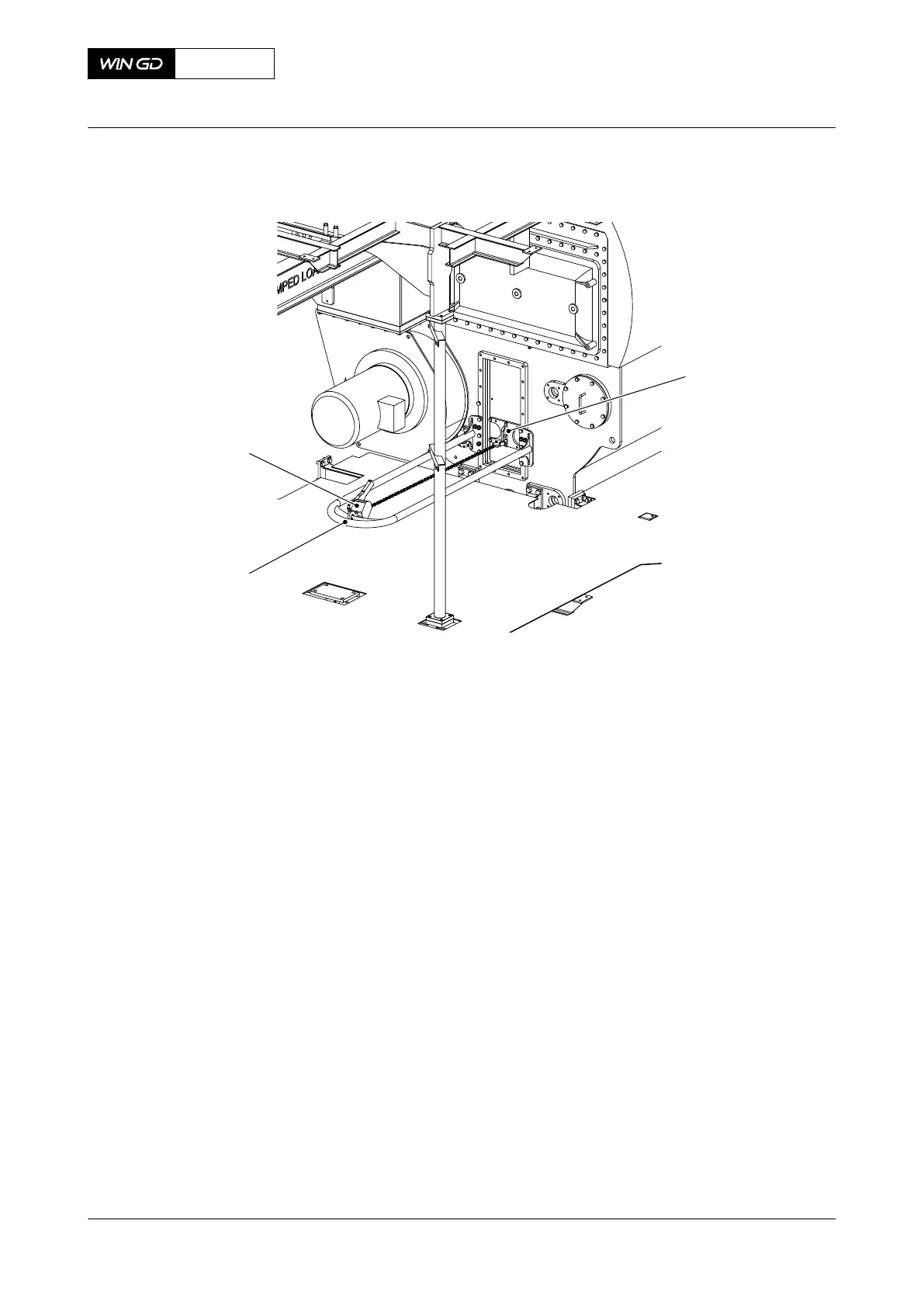

Fig 11-22 Water separator - view 2
001
002
003
00446
2 Install the lifting tool (001, Figure 11-22) to the front of the water separator.
3 Install the disassembly tool (003) to the housing of the receiver.
NOTE: Depending on the specific engine, the sight glass beside the blower can
interfere with the above step. In this case, add a 20mm distance plate between
the tool and the underslung frame.
4 Attach the lever chain hoist (002) between the lifting tool (001) and the disassembly tool
(003).
X72DF
AA00-6708-00AAA-520A-A
Maintenance Manual Water separator - remove
Winterthur Gas & Diesel Ltd.
- 660 - Issue 002 2020-10
