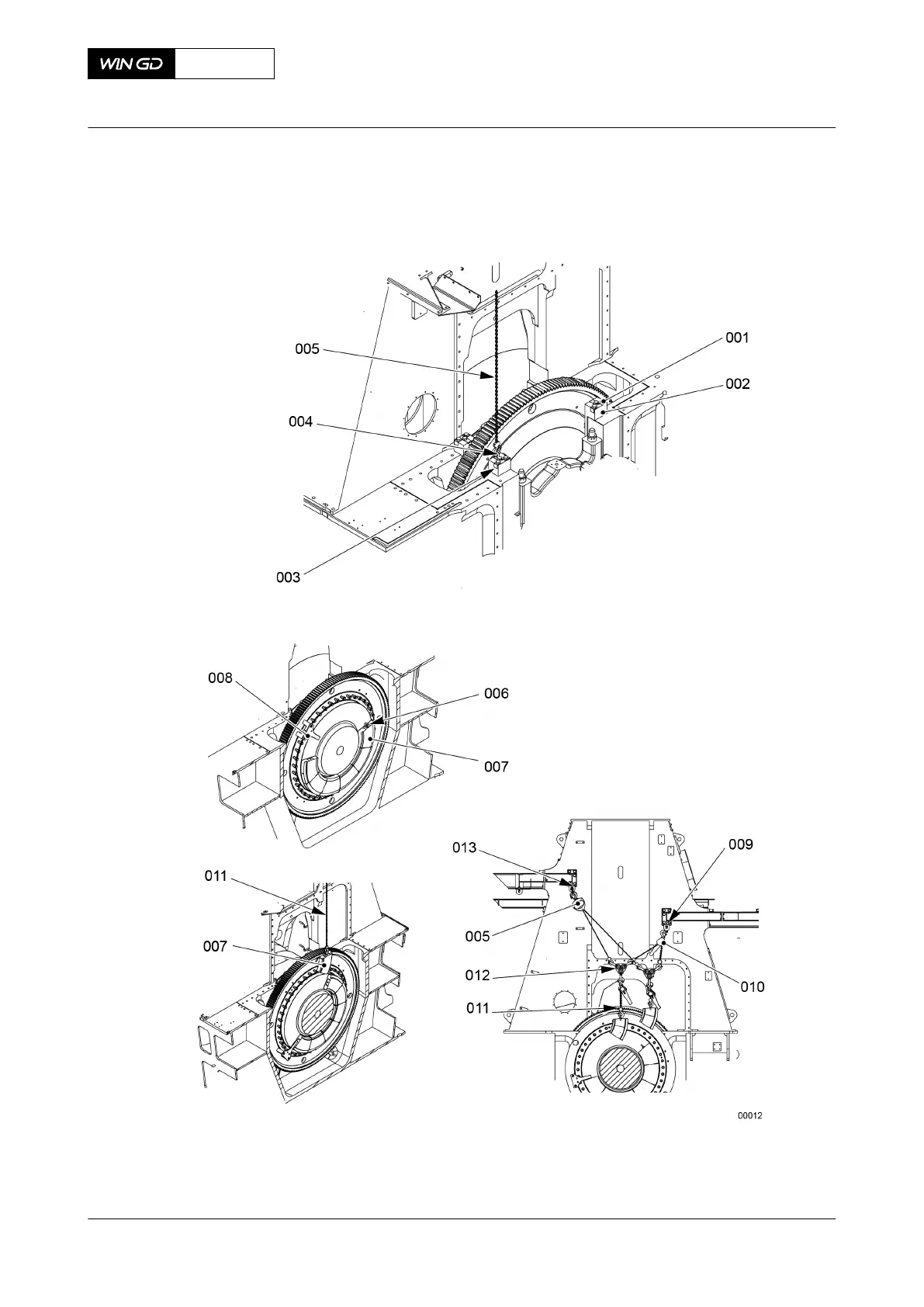

Fig 6-20 Thrust pad - removal
NOTE: If some of the thrust pads are removed, the remaining thrust pads will keep the
crankshaft in position. If all thrust pads from the same side are removed, for
example all the astern pads, the crankshaft can move.
23 To prevent crankshaft movement, do as follows:
X72DF
AA00-1203-00AAA-520A-A
Maintenance Manual Thrust bearing - remove the pads
Winterthur Gas & Diesel Ltd.
- 143 - Issue 002 2020-10
