3.4.4 Cylinder liner

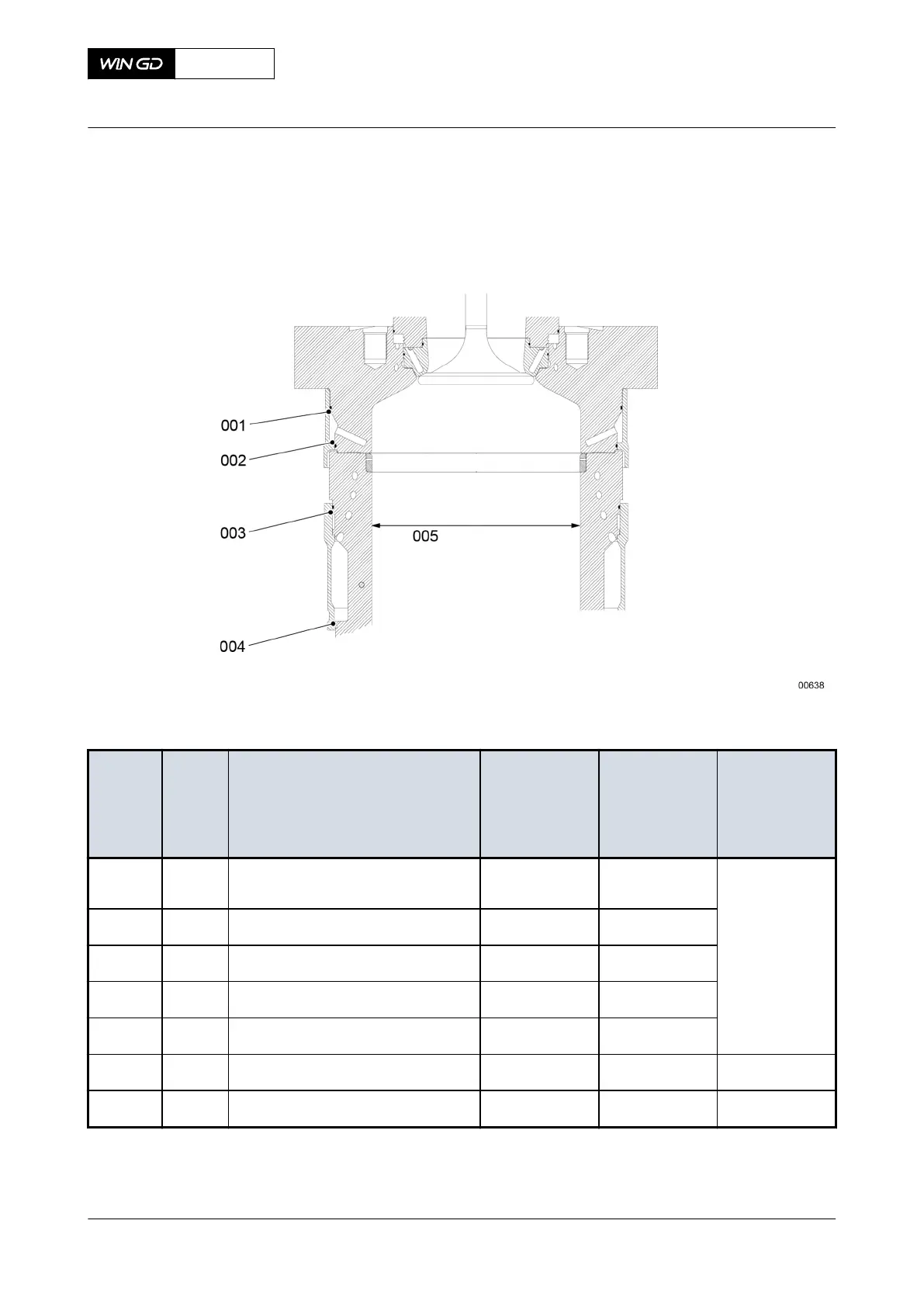

Fig 3-6 Cylinder liner

Tab 3-6 Cylinder liner

Location

code

Key Item Measured di-

rection

Nominal di-

mension (usu-

al, new) [mm]

Maximum

clearance di-

mension (be-

cause of wear)

[mm]

2130 Water guide jacket on cylinder cov-

001 Clearance - top part

Total

0.40 to 0.80

002 Clearance - top part Total

1.40 to 1.80

003 Clearance - bottom part Total 0.50 to 0.90

004 Clearance - bottom part Total 0.50 to 0.90

2124

Cylinder liner

*005 Cylinder liner bore

Radial

720 725

NOTE: The cylinder liner bore must be measured at the location shown.

X72DF

AA00-0000-00AAA-034C-A

Maintenance Manual Clearances

Winterthur Gas & Diesel Ltd.

- 68 - Issue 002 2020-10
