3.4 Clearances

3.4.1 Crankshaft and thrust bearing

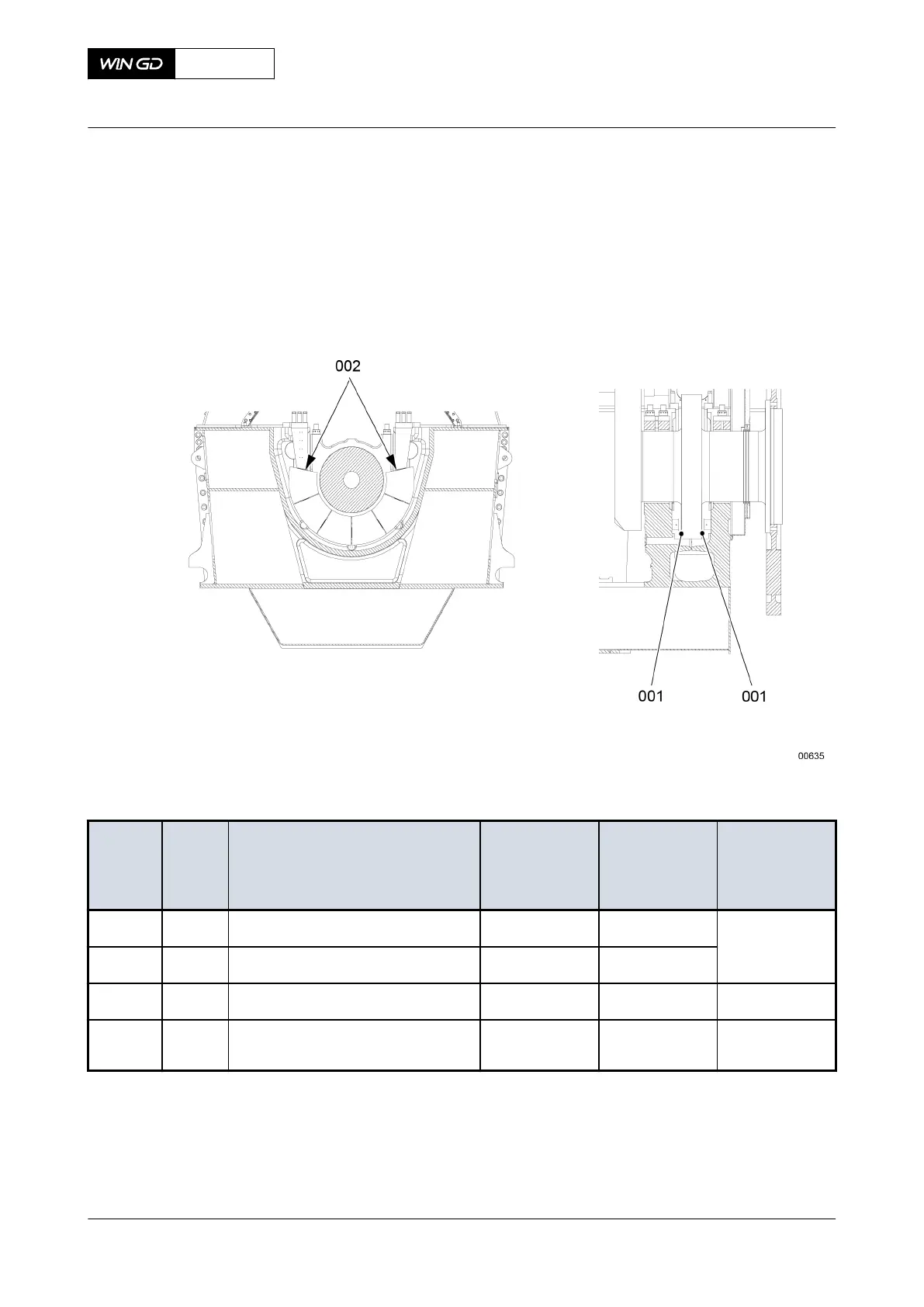

Fig 3-3 Crankshaft and Thrust Bearing

Tab 3-3 Crankshaft and thrust bearing - clearances

Location

code

Key Item Measured

direction

Nominal

dimension

(usual, new)

[mm]

Maximum

dimension (be-

cause of wear)

[mm]

1203 Thrust bearing

1224

Thrust bearing pad Thickness

115

-0.5

-0.6

001 Thrust bearing clearance Axial (total) 0.8 to 1.3 2.5

002 Clearance between thrust pad and

bracket

Each side 3.0

X72DF

AA00-0000-00AAA-034C-A

Maintenance Manual Clearances

Winterthur Gas & Diesel Ltd.

- 64 - Issue 002 2020-10
