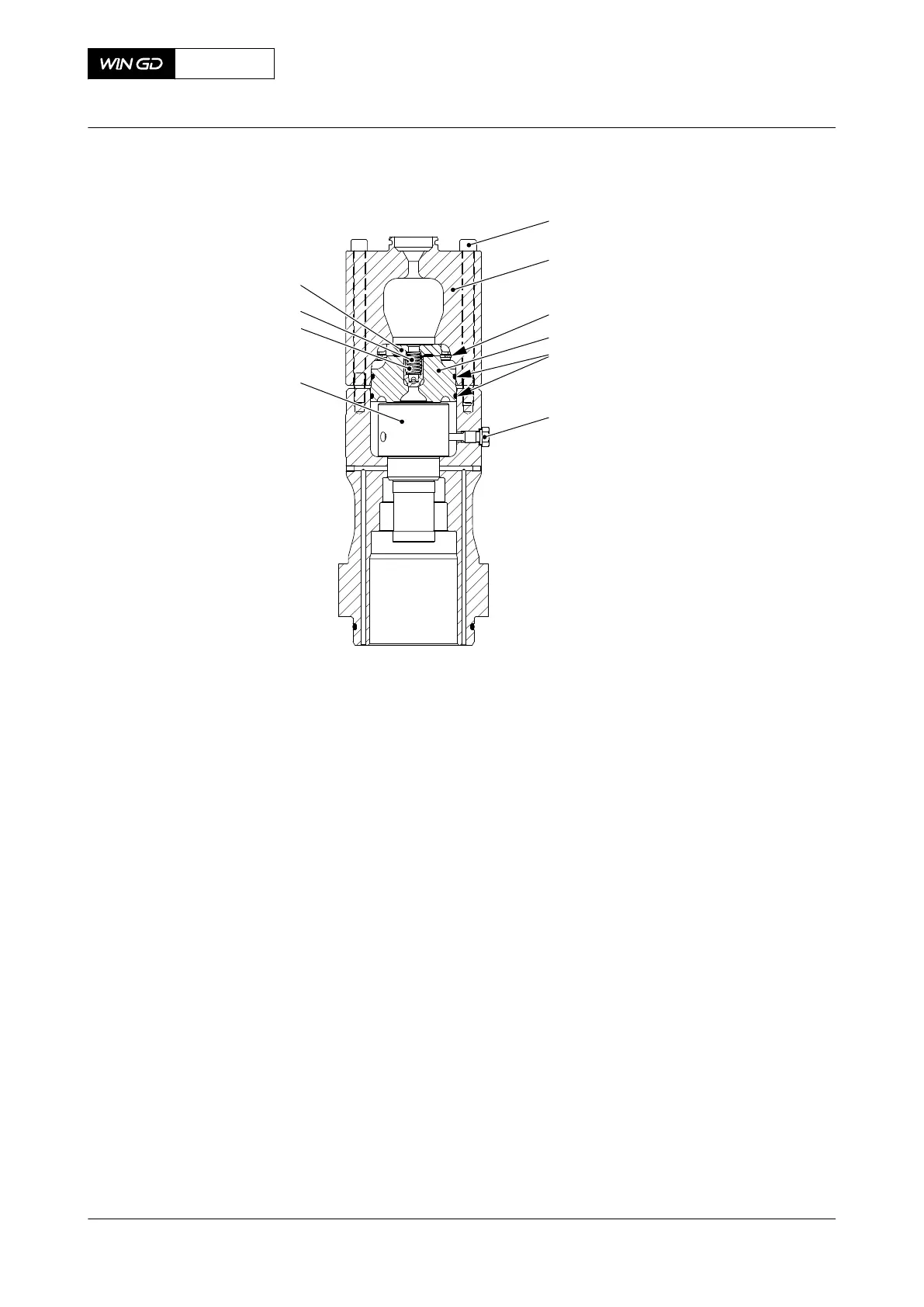

Fig 10-11 Pump cylinder removal
007
008
009
010
003
004
005
00425
002
001
006
4 To remove the pump cylinder, do the steps that follow:
4.1 Turn the pump cover (002, Figure 10-11) to point up.
4.2 Use applicable equipment to hold the pump cover (002) to the work bench.
4.3 Remove the screws (001).
4.4 Remove the pump cover (002), valve block (004), valve body (008) and
compression spring (009)
4.5 Remove the circlip (005).
4.6 Remove the intermediate disc (010).
4.7 Remove the screw (006).
4.8 Remove the pump cylinder (007).
NOTE: The pump cylinder (007) and pump plunger (003) must stay together
as a set.
X72DF
AA00-5556-00AAA-530A-A
Maintenance Manual Fuel pump - disassemble
Winterthur Gas & Diesel Ltd.
- 558 - Issue 002 2020-10
