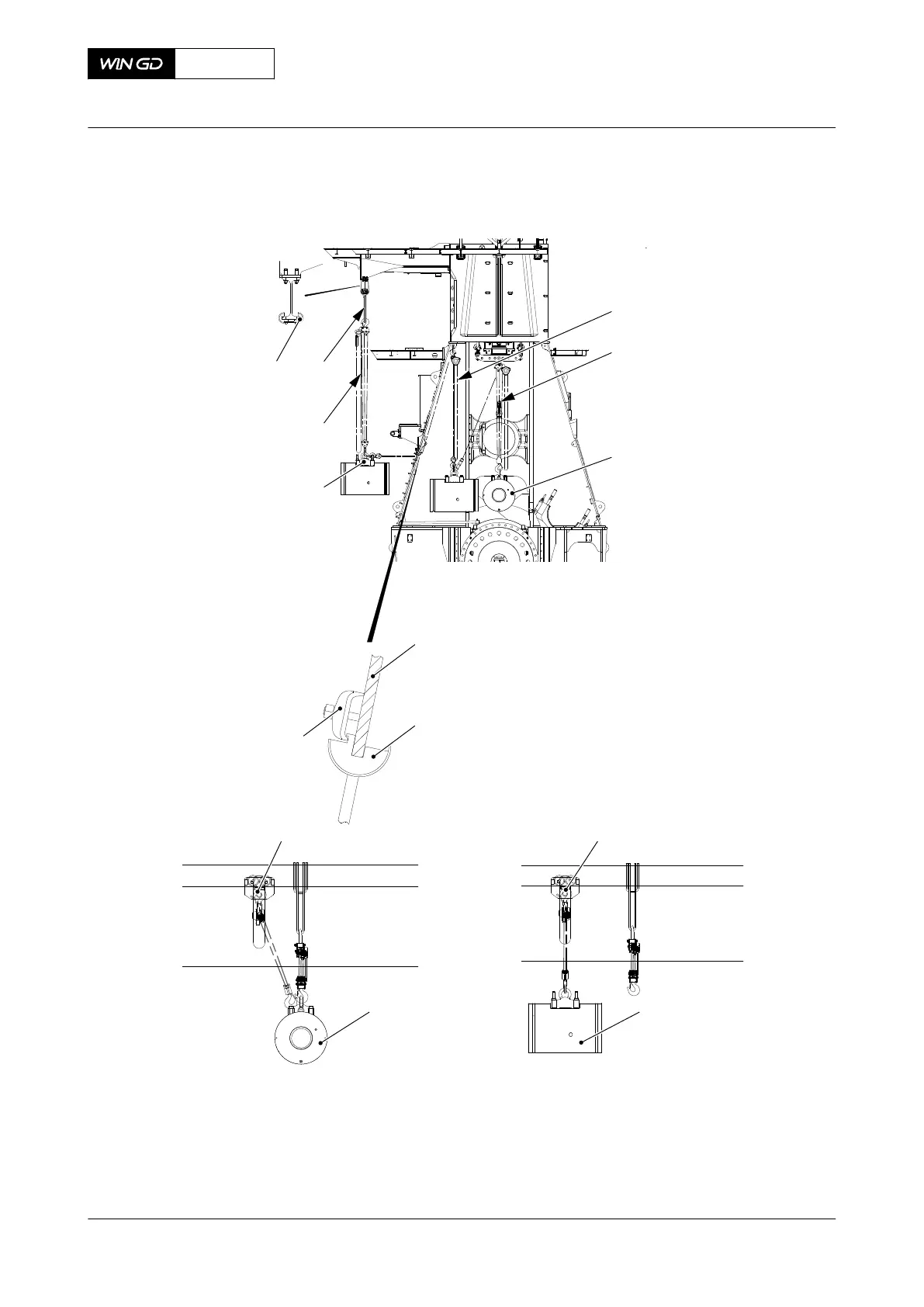

Fig 8-55 Crosshead - remove
001
002
003
004
005
006
007
008
009
010
003
003
011
00750
011
64 Record the positions of the guide shoes (003, Figure 8-56). The shims of the guide
shoes can have different dimensions (0.3 mm, 0.5 and 1 mm thickness). This will help
you during the installation procedure.
65 Operate the chain blocks (002) to lower the guide shoes (003).
X72DF
AA00-3326-00AAA-520A-A
Maintenance Manual Crosshead - remove
Winterthur Gas & Diesel Ltd.
- 455 - Issue 002 2020-10
