PROCEDURE
1 Remove the protection cover (001, Figure 6-26) from the tie rods (004).
2 Clean the surface of the intermediate ring (003).
3 Attach the two pre-tensioning jacks to the applicable tie rod (004).
4 Remove the round nut (002), refer to section 4.3 Loosen a round nut with a pre-
tensioner.
5 Loosen the two set screws (006).
6 Use two round nuts to remove the tie rod (004) from the nut (007).
7 Attach an eye bolt to the tie rod (004).
8 Attach the engine room crane to the eye bolt.
9 Operate the engine room crane to lift the tie rod (004) from the cylinder jacket (005).
10 Move the tie rod (004) to an applicable area.

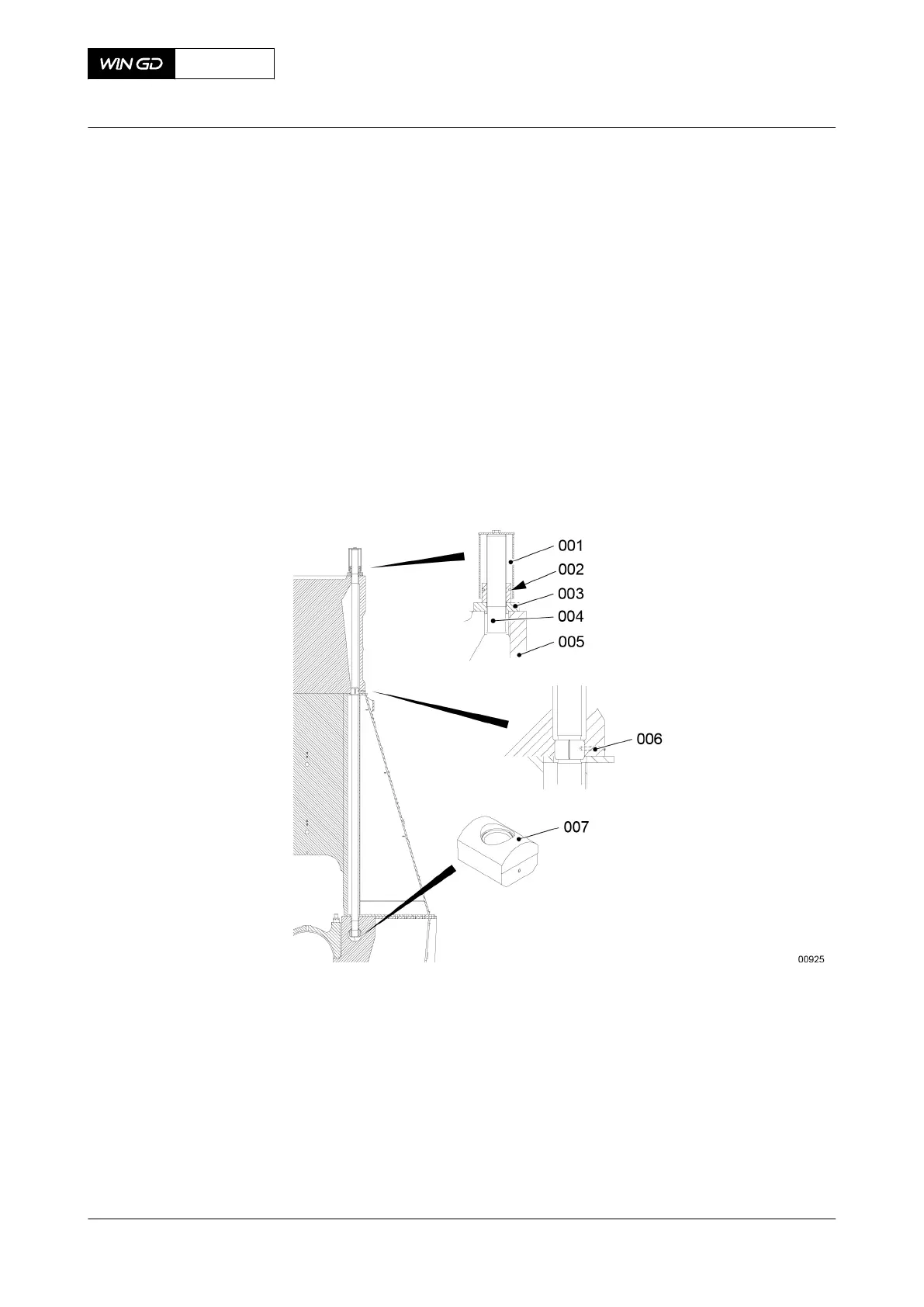

Fig 6-26 Tie rod - removal
CLOSE UP
• None
X72DF
AA00-1903-00AAA-520A-A
Maintenance Manual Tie rod - remove
