WinGD X72DF - Pressure Control Valve - Remove

PROCEDURE
1 Loosen the angle union (006, Figure 10-23).
2 Remove the fuel return pipe (005) from the pressure control valve (PCV) (001).
3 Disconnect the electrical connection from the solenoid valve (009).
4 Loosen the screws (008).
5 Remove the PCV (001) from the valve block (003).
6 Put the PCV (001) to a clean, dry area.
7 Put protection on the valve block (003) to prevent contamination.

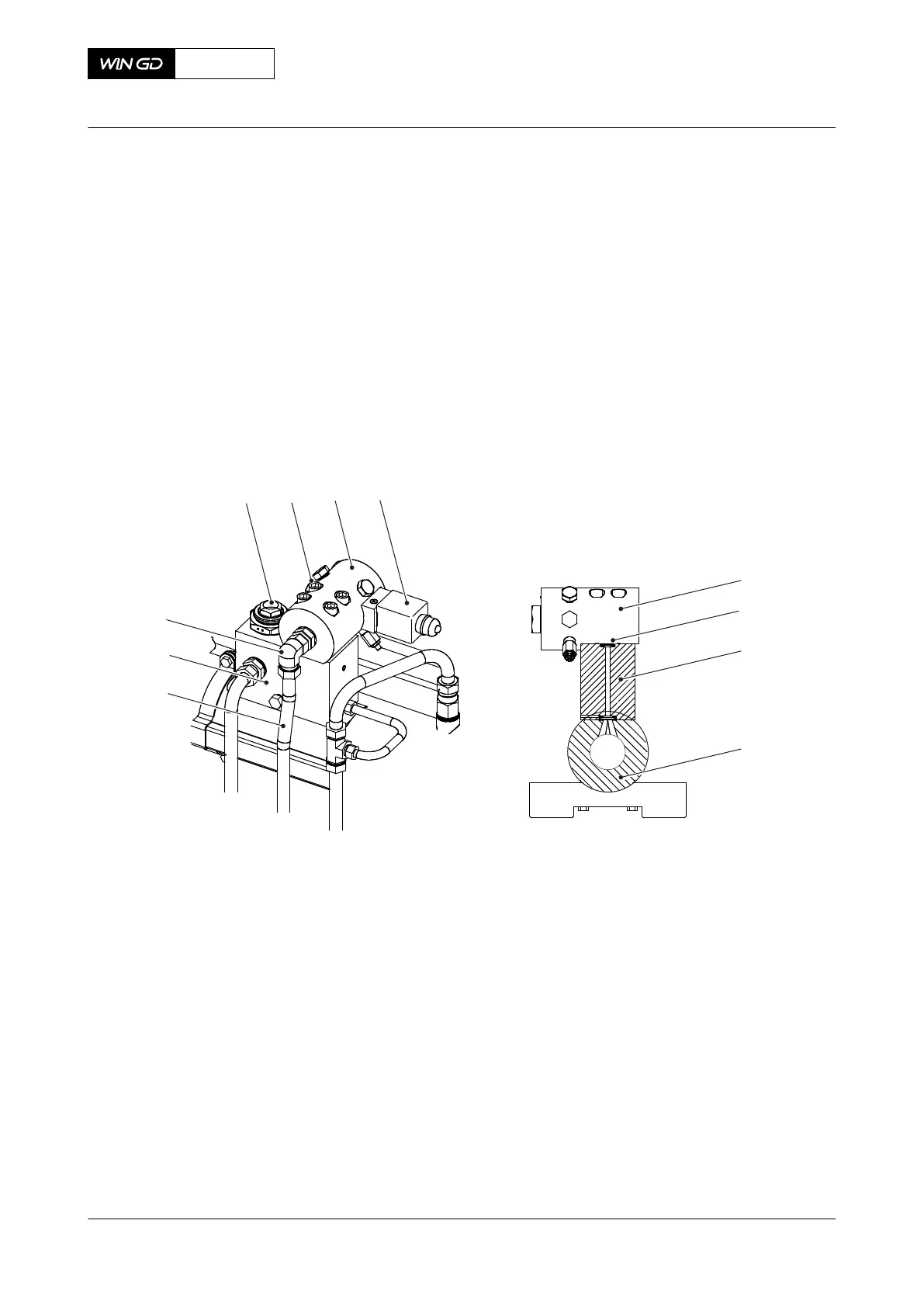

Fig 10-23 Pressure control valve - remove
001
002
003
004
006
003
005
007 008 001 009
CLOSE UP
• None
X72DF
AA00-5562-00AAA-520A-A
Maintenance Manual Fuel rail - remove the pressure control valve
