WinGD X72DF - Guide Shoe - Move

PROCEDURE
1 If necessary, attach the eye bolt to the guide shoe (003, Figure 8-59).
NOTE: Make sure that you install the guide shoes in their original positions.
2 Attach the spur-geared chain block (004) and the spur-geared chain block (001) to the
eye bolt on the guide shoe (00X).
3 Operate the chain blocks (004, 001) to move the guide shoe (003) through the column
door frame.
4 Attach the spur-geared chain block (002) to the eye bolt on the guide shoe (003).
5 Remove the chain blocks (001, 004).
6 Operate the chain block (002) to lift the guide shoe (00X).
7 Do Step 1 to Step 6 for the other guide shoe.

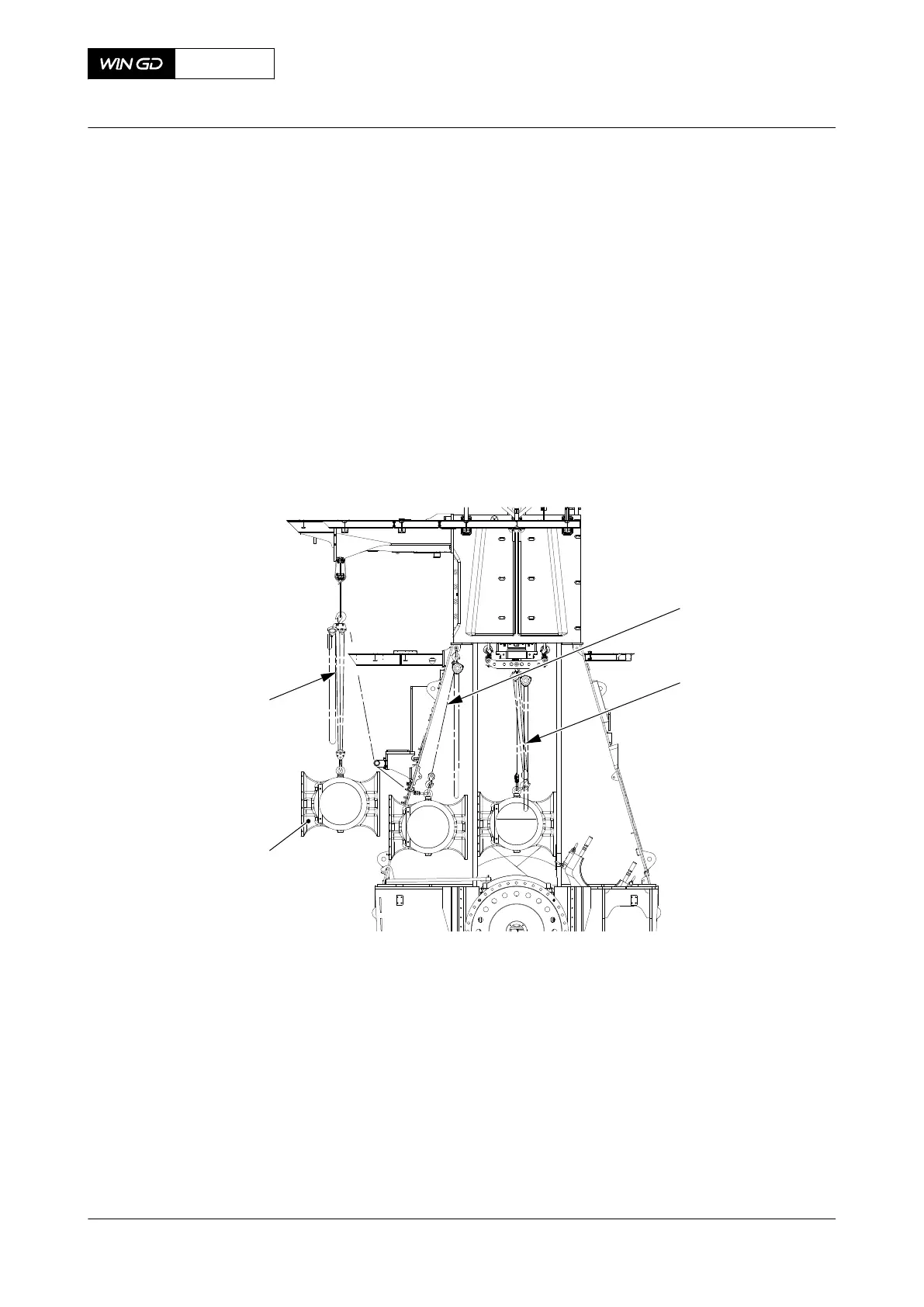

Fig 8-59 Guide shoe - move
001
002
003
004
00753
8 Clean the (003, Figure 8-60) and all surfaces that touch.
9 Make sure that the surfaces of the crosshead pin (003) are clean and have no damage.
10 Apply to all surfaces that touch on the crosshead pin (003).
11 If necessary, attach the lifting tool (007) to the crosshead pin (003).
12 Attach the chain blocks (008, 001) to the eye bolt on the lifting tool (007).
13 Operate the chain blocks (008, 001) to lift the crosshead pin (003).
14 Operate the chain blocks (008, 001) to move the crosshead pin (003) through the
column door frame.
15 Attach the chain block (002) to the lifting tool (007).
16 Apply tension to the chain block (002).
17 Remove carefully the chain blocks (008).
X72DF
AA00-3326-00AAA-720A-A
Maintenance Manual Crosshead - install
Winterthur Gas & Diesel Ltd.
- 464 - Issue 002 2020-10
