WinGD X72DF - Pilot Fuel Supply Unit

PROCEDURE
1 Remove the cover (003, Figure 10-3).
2 Remove the two Allen screws (004).
3 Remove the service cover (002).
4 Turn the flange (001) until you see the grease nipple.
5 Lubricate the coupling with an applicable grease for gear couplings.
6 Attach the service cover (002) with the two screws (004).
7 Attach the cover (003).

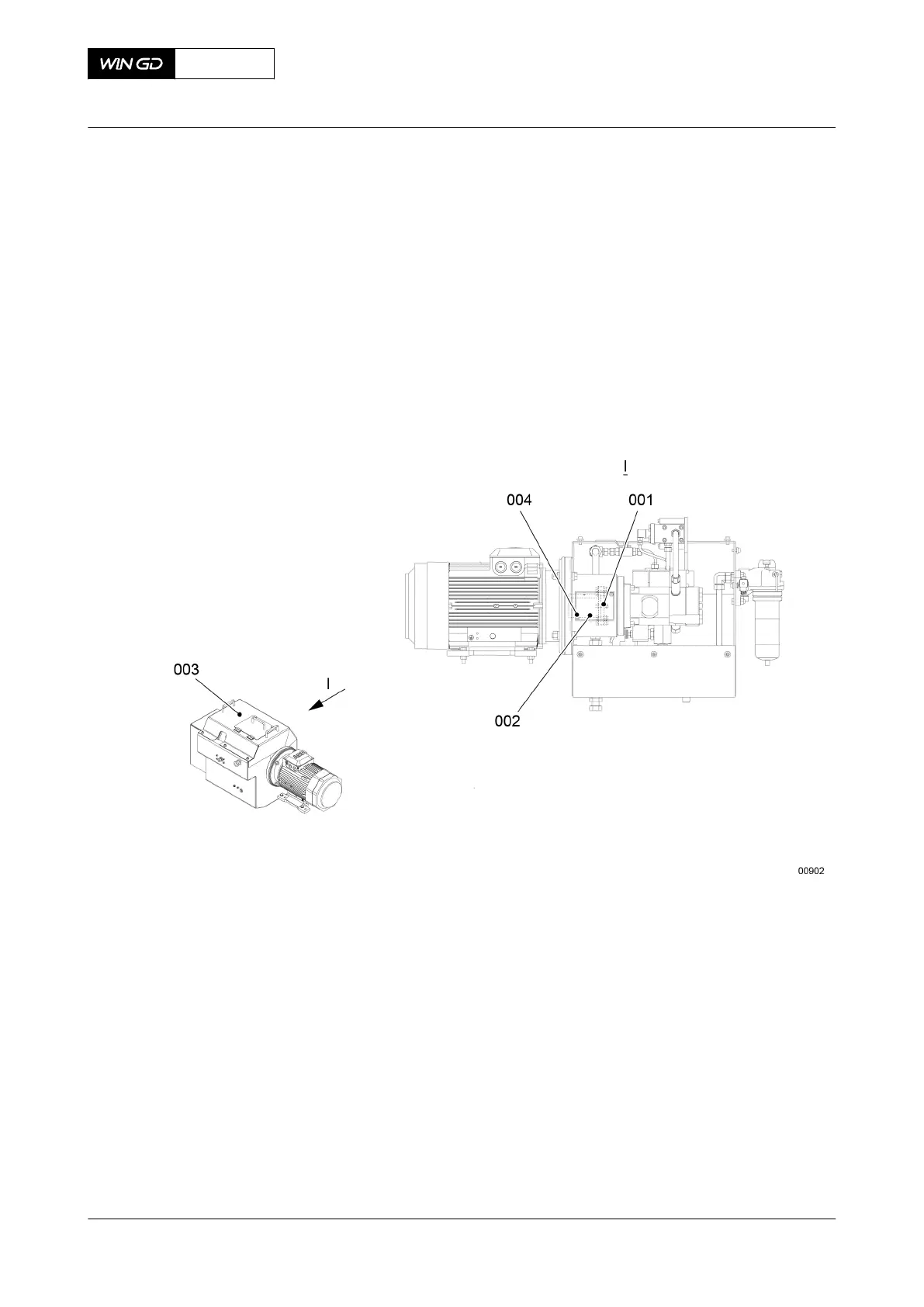

Fig 10-3 Pilot fuel supply unit
CLOSE UP
• None
X72DF
AA00-5555-00AAA-913A-A
Maintenance Manual Supply unit for pilot fuel - lubricate the coupling
