WinGD X72DF - GAV - Assemble

PROCEDURE
1 Do step 1 to step 9 in 7.3.3 Gas admission valve - do a check for gas leakage.
2 Remove the GAV from the vice.
3 Remove the pusher (003, Figure 7-23).
4 Remove the plate (002).
5 Remove the disassembly/assembly tool (001).

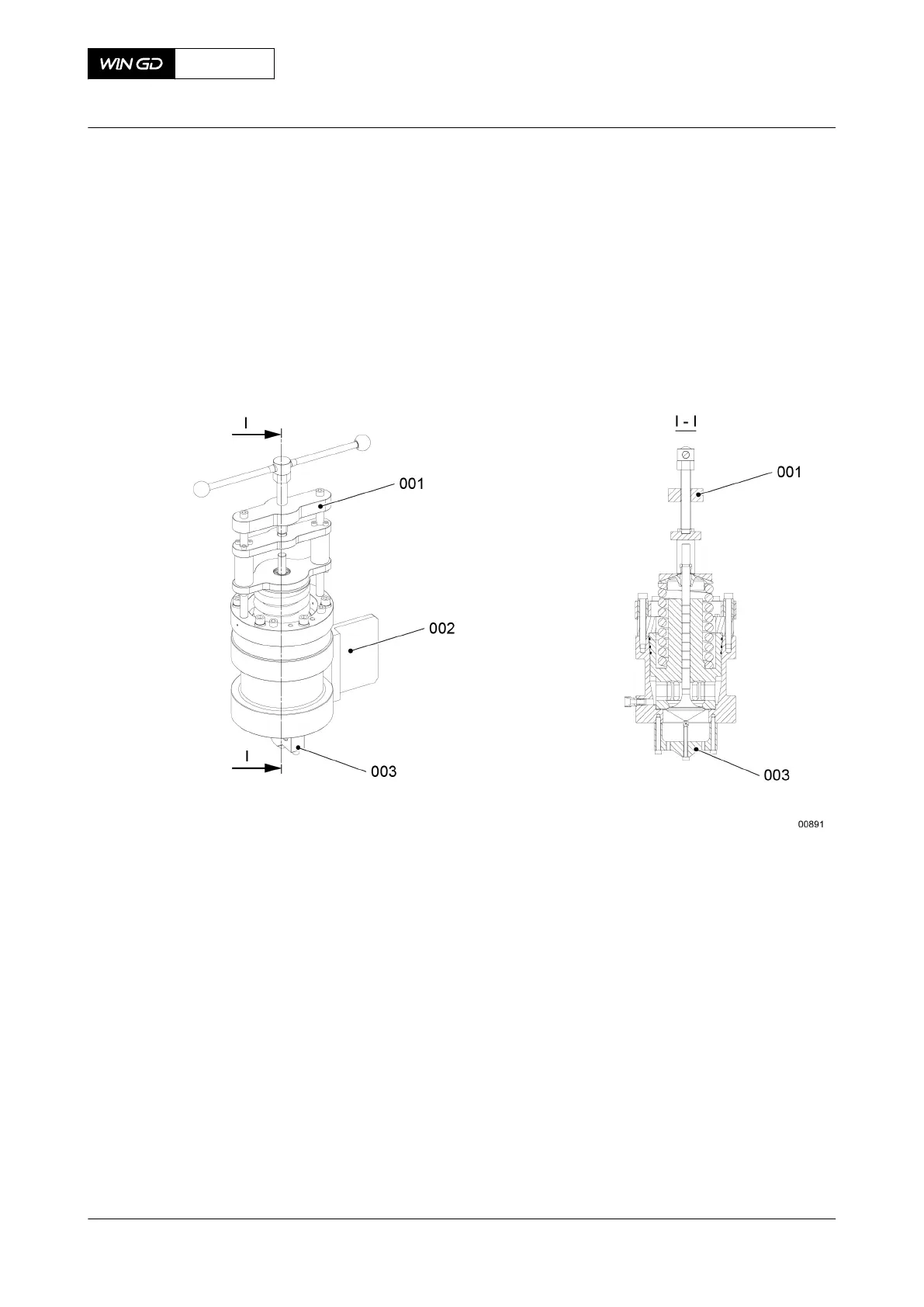

Fig 7-23 GAV - assemble
CLOSE UP
• None
X72DF
AA00-2140-00AAA-710A-A
Maintenance Manual Gas admission valve - assemble
Winterthur Gas & Diesel Ltd.
- 219 - Issue 002 2020-10
