WinGD X72DF User Manual

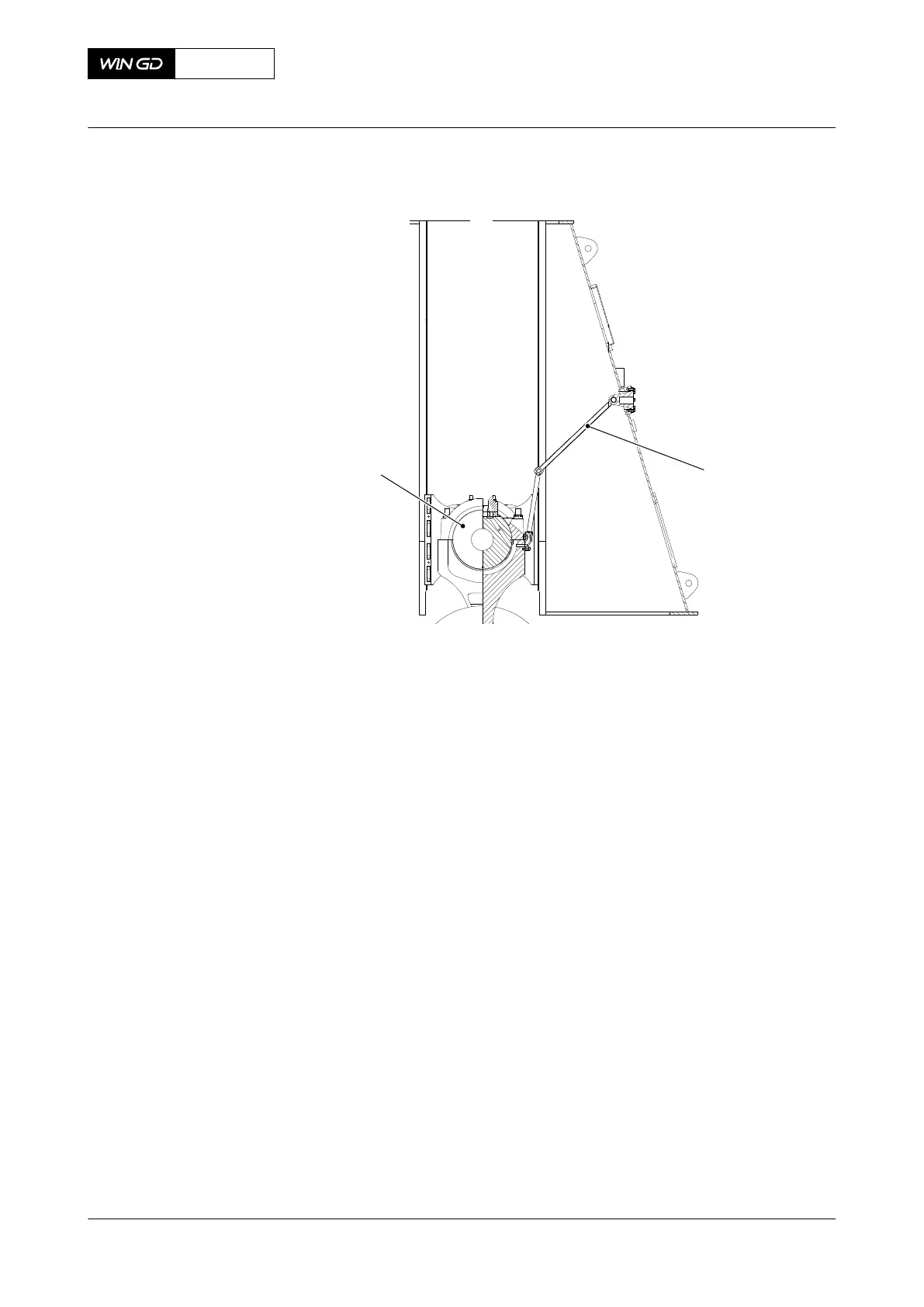

Fig 8-64 Toggle lever - attach
NOTE: THE CRANK SHAFT IS AT BDC
001
002
00757
60 Apply Loctite 243 to the thread of the temperature sensor (002, Figure 8-65).
61 Attach the temperature sensor (002) to the crosshead (001).
62 Connect the electrical connection to the temperature sensor (002).
X72DF
AA00-3326-00AAA-720A-A
Maintenance Manual Crosshead - install
Winterthur Gas & Diesel Ltd.
- 470 - Issue 002 2020-10
