Manual 37278B GCP-30 Series - Genset Control
© Woodward Page 143/174
The designation 0 % stands for either 4 mA or 0 mA; the designation 100 % stands for 20 mA. The values may
also be assigned with prefixes (see relay manager function 1).

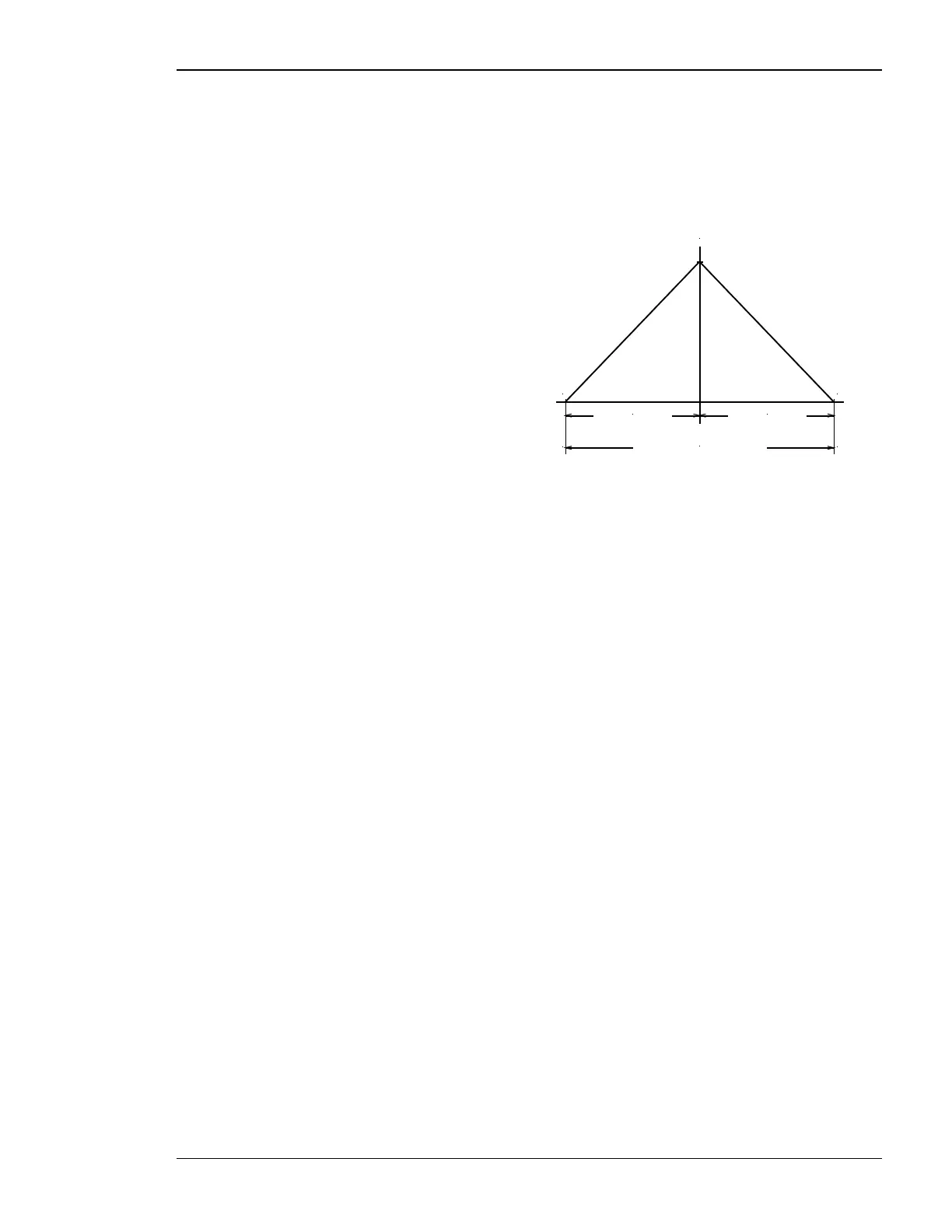

Definition of power factor cos ϕ scaling: According to the scaling of the analog output, the power factor cos ϕ
can be output within the range from capacitive values ranging from c0.00 via power factor ϕ = 1 to inductive
values up to i0.00.
Scalable range (0..20 mA)
eg. k0.70..1.00..i0.70
Power factor = 1,00
k 0.00
Capacitive
Lower distance
eg. 0030
Higher distance
eg. 0030
i 0.00
Inductive
Figure 4-1: Analog outputs - cosϕ scaling
