WORKSWELL WIRIS PRO - Digital Inputs; S.BUS Input

7. SYSTEM ASSEMBLY
7.11 Input Interfaces
The device’s input ports are all interfaced through one shared connector in the rear, with a cable split to an SBUS,
CAN, GPS and Trigger connectors.

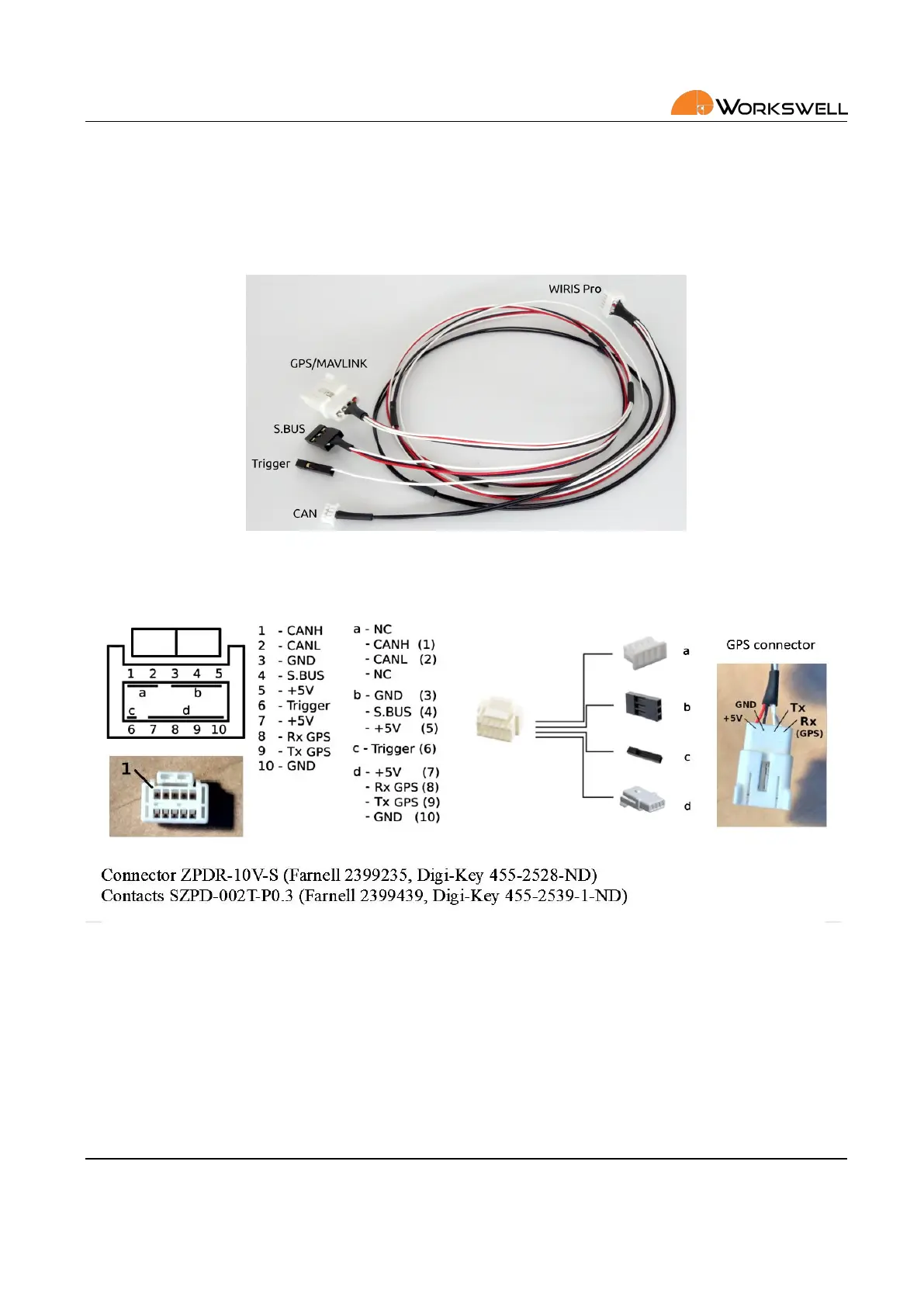

Figure 7.10: The shared input cable.
Figure 7.11: The input cable pinout descripon.
