11. DIGITAL OUTPUT
11 Digital Output
WORKSWELL WIRIS Pro has opnal digital output feature. This is a replacement for CAN interface and it must be
specied during the order, synce it needs dierent hardware.
The digital output uses the CANH and CANL wire. The CANH wire is changed to signal and CANL is changed to
GND.

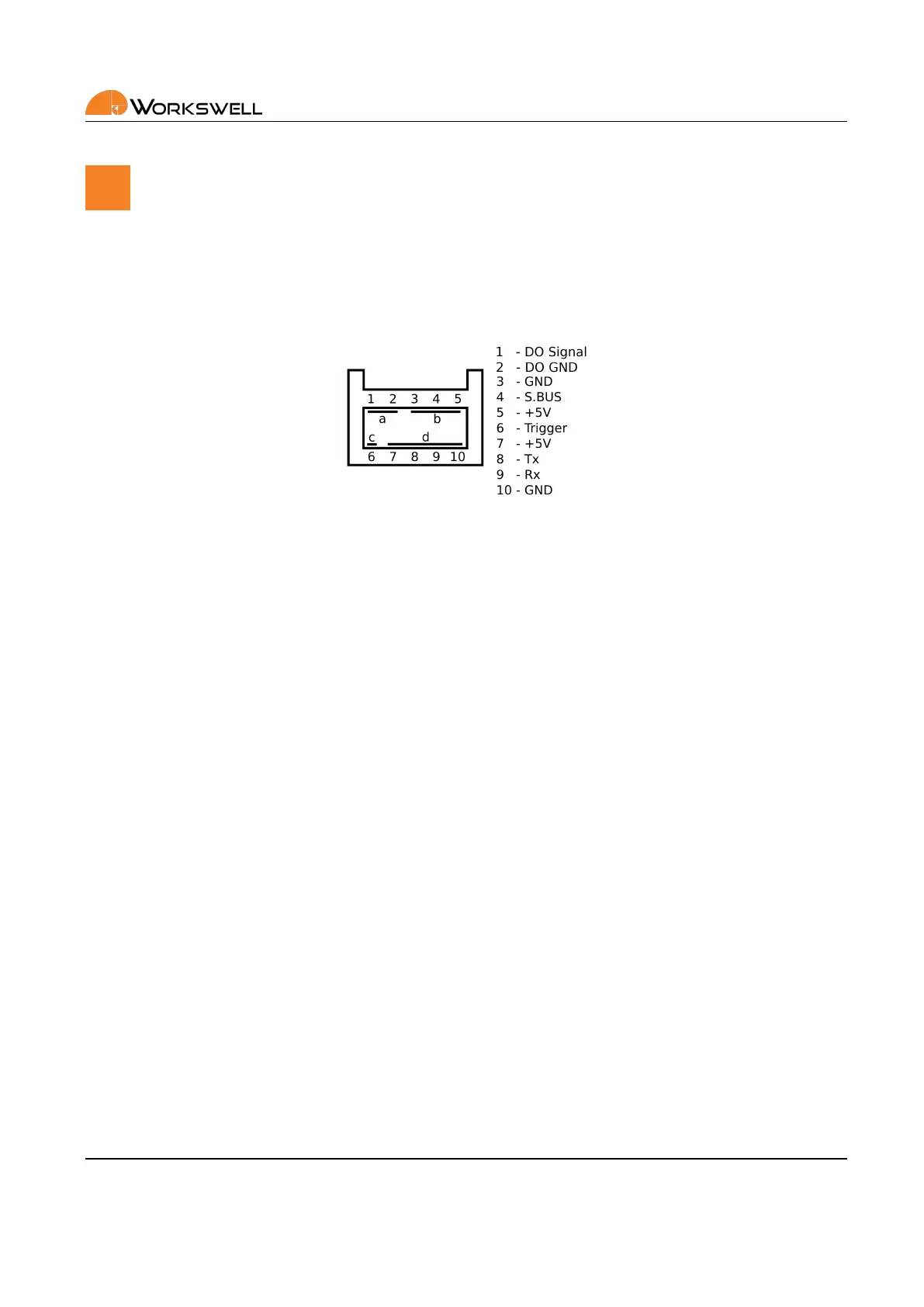

Figure 11.1: Connector pinout with Digital Outputs conguraon.
The default level is GND or logical low. It emits 100 milliseconds long 5V logical high pulse when image is nished
saving.
