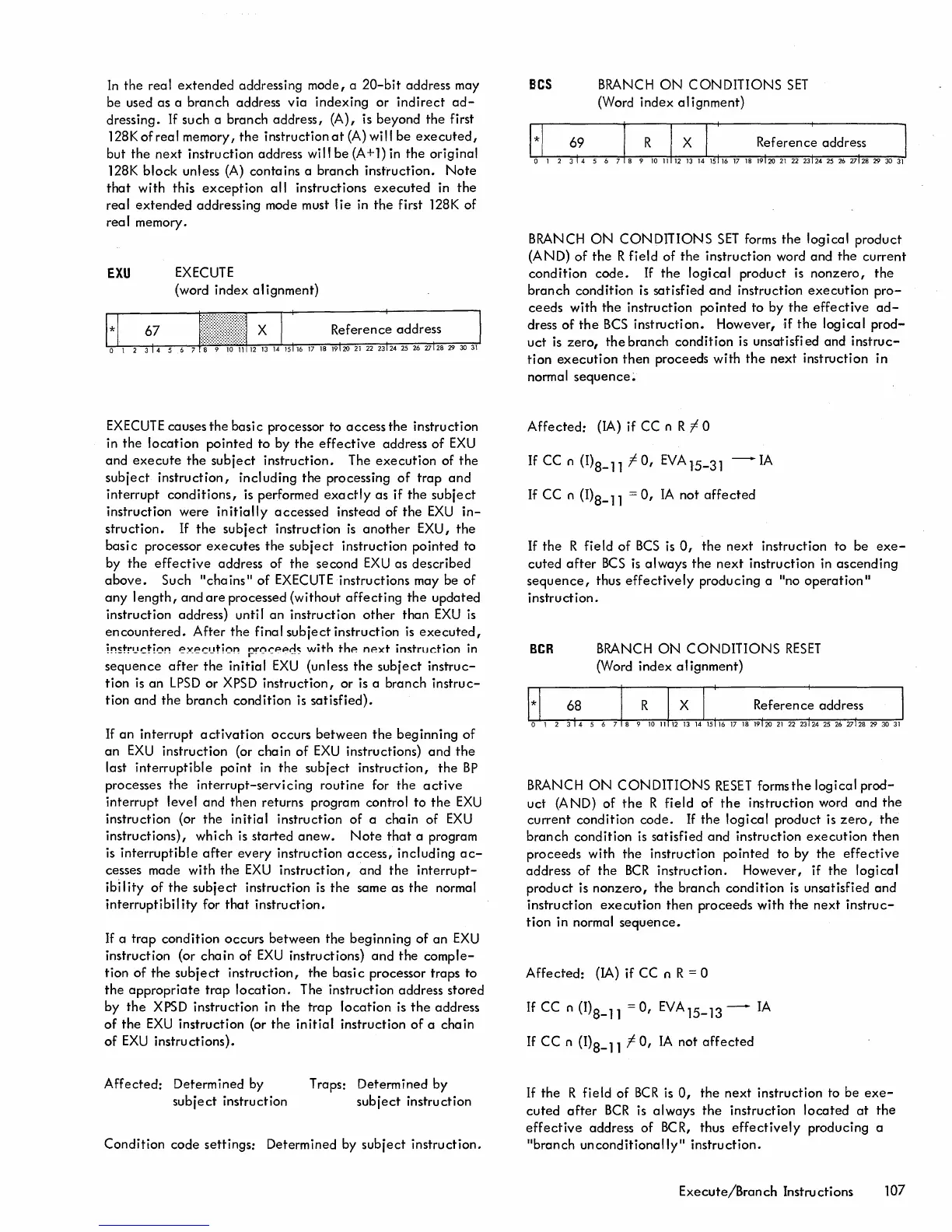

In
the
real
extended
addressing
mode,
a
20-bit
address may
be
used
as
a
branch
address
via
indexing
or
indirect
ad-
dressing. If such a
branch
address,
(A), is beyond
the
first
128Kofreal
memory,
the
instruction
at
(A) will
be
executed,
but
the
next
instruction
address will
be
(A+1) in
the
original
128K
block
unless (A)
contains
a
branch
instruction.
Note
that
with
this
exception
all
instructions
executed
in
the
real
extended
addressing mode must
lie
in
the
first 128K
of
rea
I memory.
EXU
EXECUTE
(word
index
alignment)
EXECUTE
causes
the
basic
processor to
access
the
instruction
in
the
location
pointed
to
by
the
effective
address
of
EXU
and
execute
the
subject
instruction.
The
execution
of
the
subject
instruction,
including
the
processing
of
trap
and
interrupt
conditions,
is
performed
exactly
as
if
the
subject
instruction
were
initially
accessed
instead
of
the
EXU
in-
struction.
If
the
subject
instruction
is
another
EXU,
the
basic
processor
executes
the
subject
instruction
pointed
to
by
the
effective
address
of
the
second
EXU
as
described
above.
Such
"chains"
of
EXECUTE
instructions
may be
of
any
length,
and
are
processed
(without
affecting
the
updated
instruction
address) until
an
instruction
other
than
EXU
is
encountered.
After
the
final
subject
instruction
is
executed,
inc:for"rtit"ln
Pypr"tit"ln
nrt"lrpp,.lc;.
with
thp. np.xt
instruction
in
...
_
..
__
..
_--
-----------
r------_·
sequence
after
the
initial
EXU
(unless
the
subject
instruc-
tion
is
an
LPSD
or
XPSD
instruction,
or
is
a
branch
instruc-
tion
and
the
branch
condition
is
satisfied).
If
an
interrupt
activation
occurs
between
the
beginning
of
an
EXU
instruction
(or
chain
of
EXU
instructions)
and
the
last
interruptible
point
in
the
subject
instruction,
the
BP
processes
the
interrupt-servicing
routine
for
the
active
interrupt
level
and
then
returns program control
to
the
EXU
instruction
(or
the
initial
instruction
of
a
chain
of
EXU
instructions),
which
is
started
anew.
Note
that
a program
is
interruptible
after
every
instruction
access,
including
ac-
cesses made
with
the
EXU
instruction,
and
the
interrupt-
ibility
of
the
subject
instruction is
the
same
as
the
normal
interruptibility
for
that
instruction.
If
a
trap
condition
occurs
between
the
beginning
of
an
EXU
instruction (or
chain
of
EXU
instructions)
and
the
comple-
tion
of
the
subject
instruction,
the
basic
processor traps to
the
appropriate
trap
location.
The
instruction
address stored
by
the
XPSD
instruction
in
the
trap
location
is
the
address
of
the
EXU
instruction
(or
the
initial
instruction
of
a
chain
of
EXU
instructions).
Affected:
Determined
by
subject
instruction
T raps:
Determined
by
subject
instruction
Condition
code
settings:
Determined by
subject
instruction.
BCS
BRANCH
ON
CONDITIONS
SET
(Word
index
alignment)
BRANCH
ON
CONDITIONS
SET
forms
the
logical
product
(AND)
of
the
R
field
of
the
instruction
word
and
the
current
condition
code.
If
the
logical
product
is
nonzero,
the
branch
condition
is
satisfied
and
instruction
execution
pro-
ceeds
with
the
instruction
pointed
to
by
the
effective
ad-
dress
of
the
BCS
instruction.
However,
if
the
logical
prod-
uct
is
zero,
the
branch
condition
is unsatisfi ed and
instruc-
tion
execution
then
proceeds
with
the
next
instruction
in
normal
sequence.
Affected:
(lA)
if
CC n R f 0
If
CC n
(1)8_11/0,
EVA
15
-
31
-IA
If
CC
n (1)8-11 =
0,
IA
not
affected
If
the
R
field
of
BCS
is
0,
the
next
instruction
to
be
exe-
cuted
after
BCS
is
always
the
next
instruction
in
ascending
sequence,
thus
effectively
producing
a "no
operation
II
instruction.
BCR
BRANCH
ON
CONDITIONS
RESET
(Word
index
alignment)
BRANCH
ON
CONDITIONS
RESET
forms
the
logical
prod-
uct
(AND)
of
the
R
field
of
the
instruction
word
and
the
current
condition
code.
If
the
logical
product
is
zero,
the
branch
condition
is
satisfied
and
instruction
execution
then
proceeds
with
the
instruction
pointed
to by
the
effective
address
of
the
BCR
instruction.
However,
if
the
logical
product
is
nonzero,
the
branch
condition
is unsatisfied
and
instruction
execution
then
proceeds
with
the
next
instruc-
tion
in normal
sequence.
Affected:
(IA)
if
CC n R = 0
If
CC n (1)8-11 =
0,
EVA
15
_
13
-
IA
If
CC
n (1)8-11 10,
IA
not
affected
If
the
R
field
of
BCR
is
0,
the
next
instruction
to
be
exe-
cuted
after
BCR
is
always
the
instruction
located
at
the
effective
address
of
BCR,
thus
effectively
producing
a
"branch
unconditionally"
instruction.
Execute/Branch
Instructions 107
