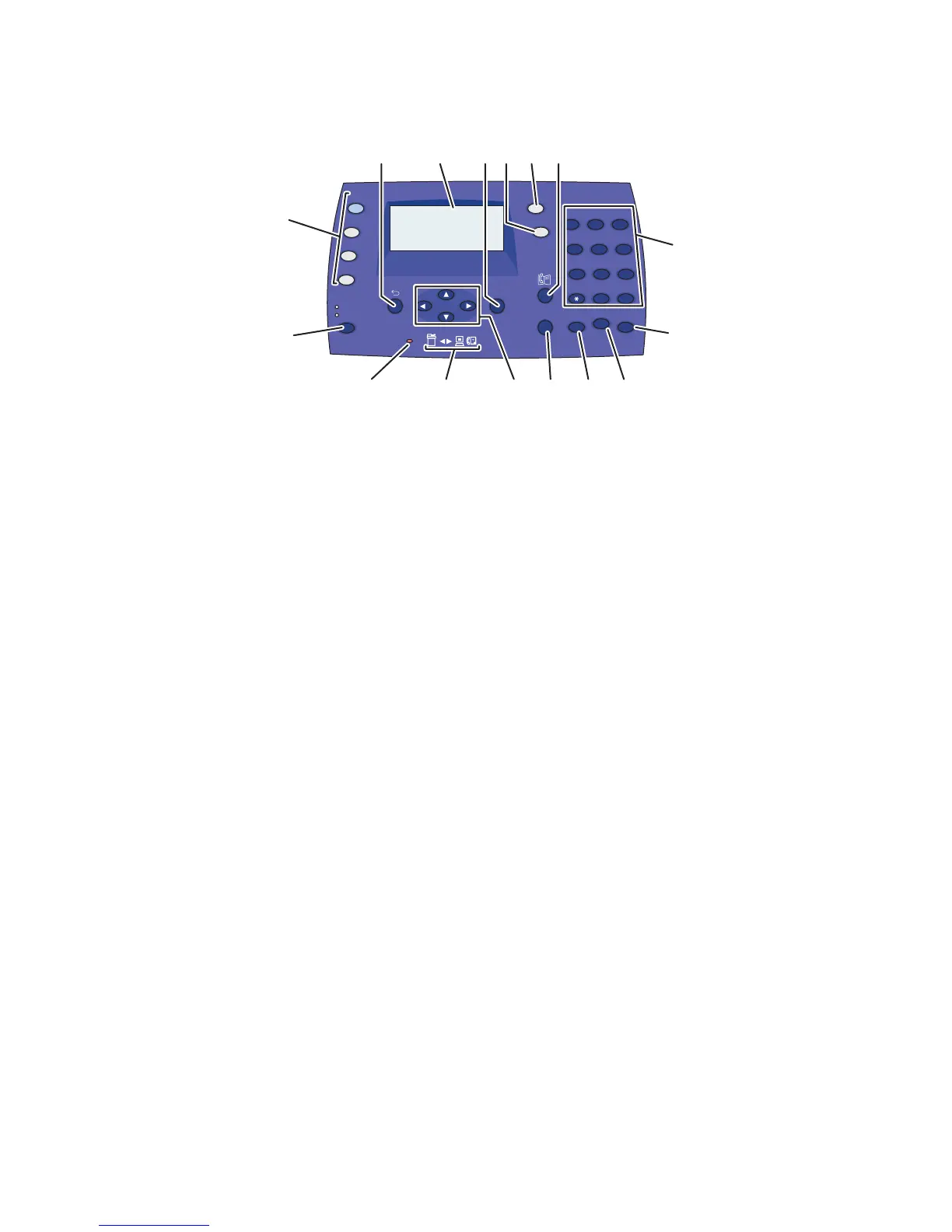

Control Panel
Phaser® 6180MFP Multifunction Printer
2-7
1. Press to use the Copy, Fax, E-mail, and
Scan menus on the display screen.
2. Color Mode button
Press to switch between Color and Black and
White modes for your copy, fax, and scan job.
3. Job in Memory LED
When illuminated, it indicates that there is a
job in the printer’s memory.
4. Arrow LEDs
These LEDs indicate the flow of data either
into or out of the printer.
5. Up Arrow button
Scrolls upward through the menus.
Down Arrow button
Scrolls downward through the menus.
Back Arrow button
Scrolls backwards through the menus, or
displays the Walk-Up Features menu.
Forward Arrow button
Scrolls forward through the menus.
6. Manual Dial button
When faxing, you can press this button to
quickly enter a fax number with the
alphanumeric key pad.
7. Redial/Pause button
Press the button to recall the last fax number
used or to insert pauses in fax numbers.
8. Clear button
Deletes a single character each time the
button is pressed. For use when entering email
addresses and telephone numbers.
9. Speed Dial button
Press to access directories of group or
individual fax telephone numbers.
10. Alphanumeric keypad
Use to enter numbers and letters for names
and phone numbers.
11. Address Book button
Press to access the Fax and Email address
books.
12. Job Status button
Press to check active job status and Walk-Up
printing jobs.
13. System button
Switches the display to the Setup menu.
14. OK button
Press to accept the setting selected.
15. Graphic display indicates status messages,
menus, and toner levels.
16. Exit button
Press to go up one level in the menu.
