Xerox WorkCentre 5020 System Administrator Guide

1 Before Using the Machine
8
Conventions
This section describes the conventions that are used throughout this System
Administration Guide.
WARNING: indicates statements that alert you to the possibility of personal harm.
CAUTION: indicates statements that suggest the possibility of mechanical damage
as a result of an action.
NOTE: indicates additional information on operations or features.
" ": indicates cross-references within this guide and input text
[ ]: indicates the values and error codes that appear in the Display, and also
indicates the names of menus, windows, dialog boxes, buttons, and other
items displayed on a computer monitor.
< >: indicates hardware buttons on the Control Panel of the machine and keys
on a computer keyboard.
This section also describes terms that are used throughout this System Asministration
Guide.
• Orientation is used to mean the direction of images on the page. When the image is
upright, the paper (or other media) can be either long edge feed or short edge feed.
• LEF (Long Edge Feed)
Loading documents and paper with one of the long edges to be fed into the machine
first.
• SEF (Short Edge Feed)
Loading documents and paper with one of the short edges to be fed into the machine
first.
• Paper is synonymous with media, and is used interchangeably.
• Machine is synonymous with Xerox WorkCentre 5020/DN, and is used
interchangeably.
• Computer refers to a personal computer or workstation.
• System Administrator refers to a person who is responsible for maintaining the
machine, such as setting up the machine, installing the print drivers, and managing
software.
Related Information Sources
The following sources of information are available for the machine:
• WorkCentre 5020/DN User Guide
• WorkCentre 5020/DN System Administration Guide
• WorkCentre 5020/DN Installation Guide

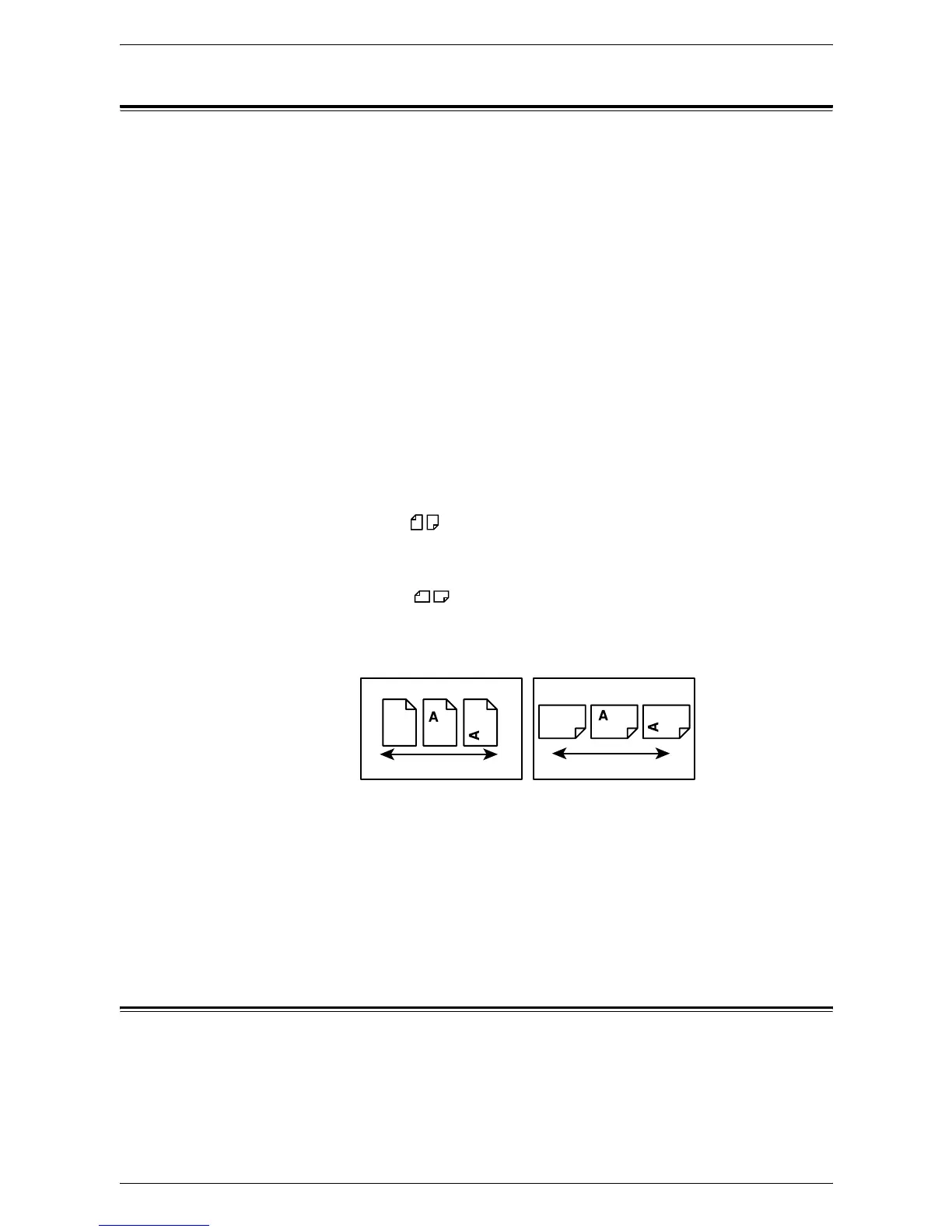

LEF Orientation
Paper feed direction
SEF Orientation
Paper feed direction

Xerox WorkCentre 5020 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Print Resolution	Up to 600 x 600 dpi
Max Paper Size	A3
Standard Paper Capacity	250 sheets
Bypass Tray Capacity	100 sheets
Duplex Printing	Manual
Copy Speed	Up to 20 cpm
First Page Out Time (Copying)	Less than 10 seconds
Scan Resolution	Up to 600 x 600 dpi
Operating System Compatibility	Windows, Mac OS
Automatic Document Feeder	50 sheets
Connectivity	USB 2.0
Functions	Print, Copy
Reduction / Enlargement	25% - 400%
Scan Destinations	USB, Email
Fax Transmission Speed	33.6 kbps
First Page Out Time (Printing)	Less than 8 seconds
