Installation and User Manual ADPRO Presidium by Xtralis
16 Doc. 12384_05

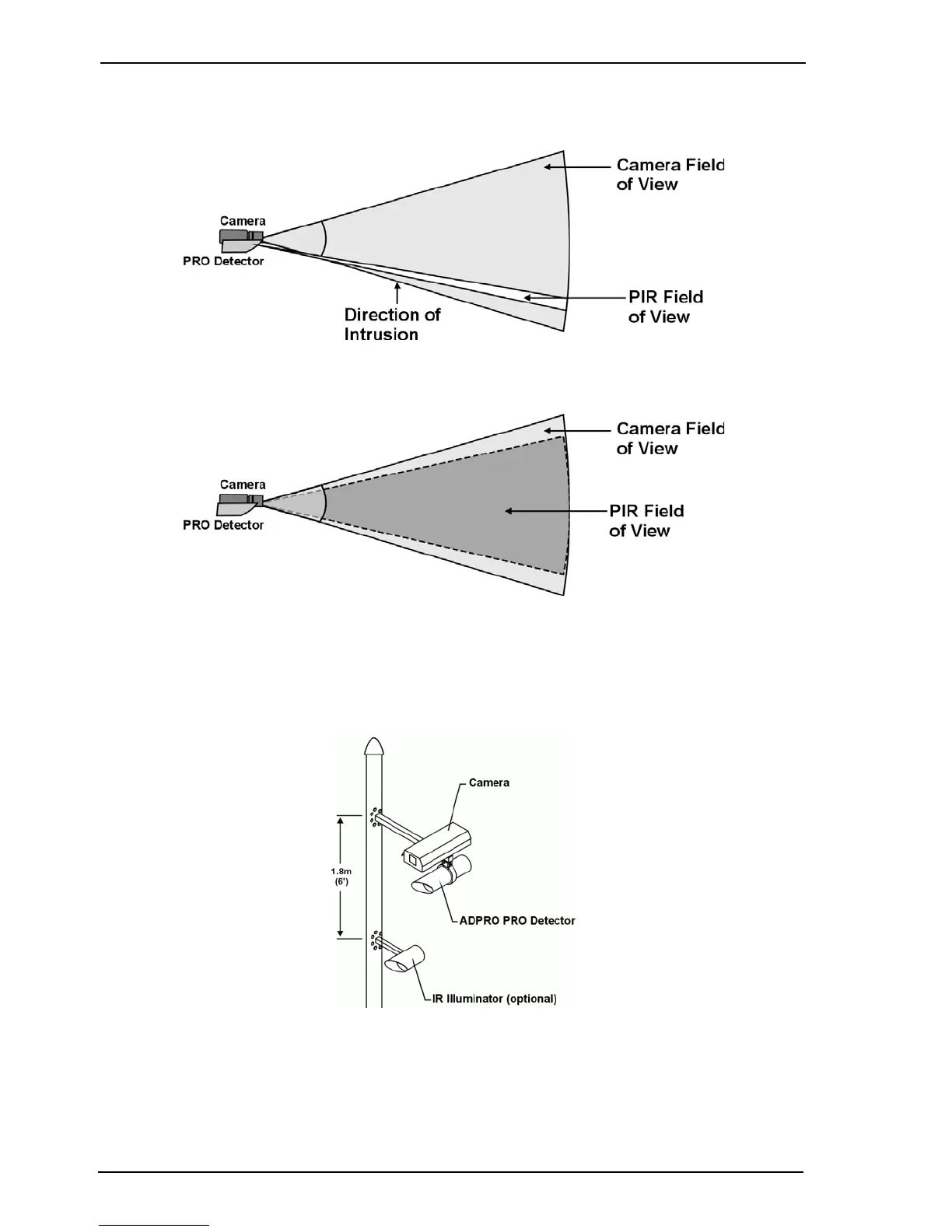

The following diagrams illustrate the alignment of a long range PIR with the camera field of view,
and a wide angle PIR with the camera FOV.
Figure 8: FOV of Curtain PIR with Camera
Figure 9: FOV of Wide angle PIR with Camera
To aid aligning the camera and the PIR it is recommended that the PIR is mounted as close to
the camera as possible, preferably mounting off the same bracket as the camera, as shown in
the following diagram:
Figure 10: Camera/PIR Mounting Details
