ADPRO Presidium by Xtralis Installation and User Manual
Doc. 12384_05 43
4 Installation / Configuration
Before installing the ADPRO Presidium, this section should be read thoroughly.
If any difficulties arise, contact your supplier or Xtralis Pty Ltd directly.
4.1 Unpacking
After unpacking the Presidium, carefully check for any signs of damage. Any damage should be
reported to your supplier, or to Xtralis Pty Ltd directly, before the Presidium is installed.
Check that the packing carton contains the following items:
• 1 detachable power cord
• 1 regulated 12 V plug pack - Presidium Mini only
• 1 I/O screw terminal connector to connect to the I/O connector (fitted to the unit)
• 1 EOL resistor pack
• 1 Presidium Quick Setup Guide
• 1 ADPRO Product Installation and Upgrade DVD
• 1 crossover Ethernet cable
• 1 fan cover (to be fitted before powering unit) - standard Presidium only
When supplied as a spare, each VM15 module is supplied with:
• 1 I/O screw terminal connector to connect to the Alarm connector. This connector will be
plugged into each VM15 module.
• 1 EOL resistor pack
4.2 Install Setup Utility
To set up the Presidium for operation, it must be connected to a PC installed with the Presidium
Setup Utility. The PC must also be configured with the required IP Address.
Note: If uninstalling the Presidium Setup Utility and reinstalling to a different directory, the
Presidium Setup Plugin and the Presidium Upgrade Plugin must be uninstalled
using Add/Remove Programs before reinstalling the Setup Utility.
To install the Presidium Setup Utility:
1. Insert the ADPRO Product DVD into the PC to autorun and show the following screen.

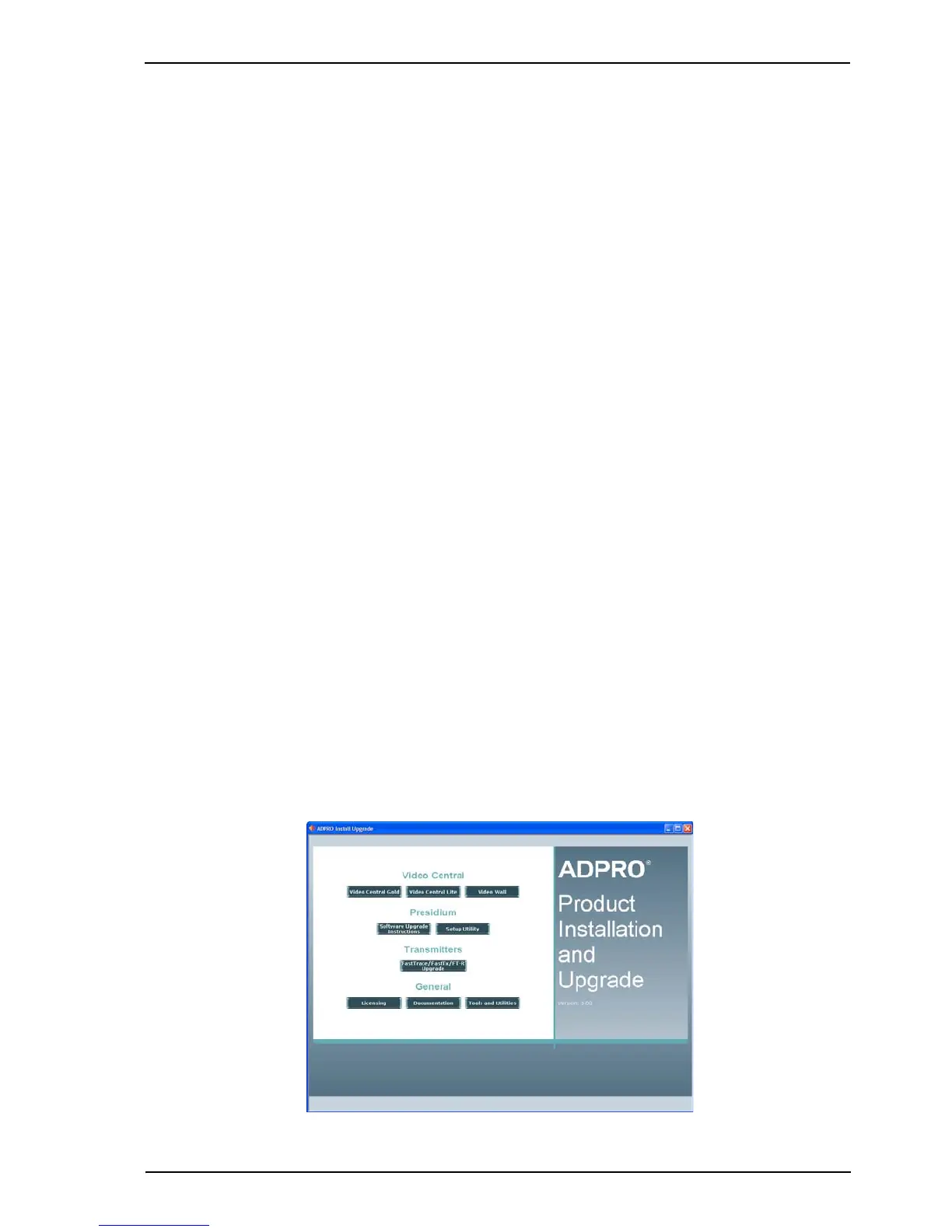

Figure 31: Installation Screen
