FUEL
4-
6885J11
4-11

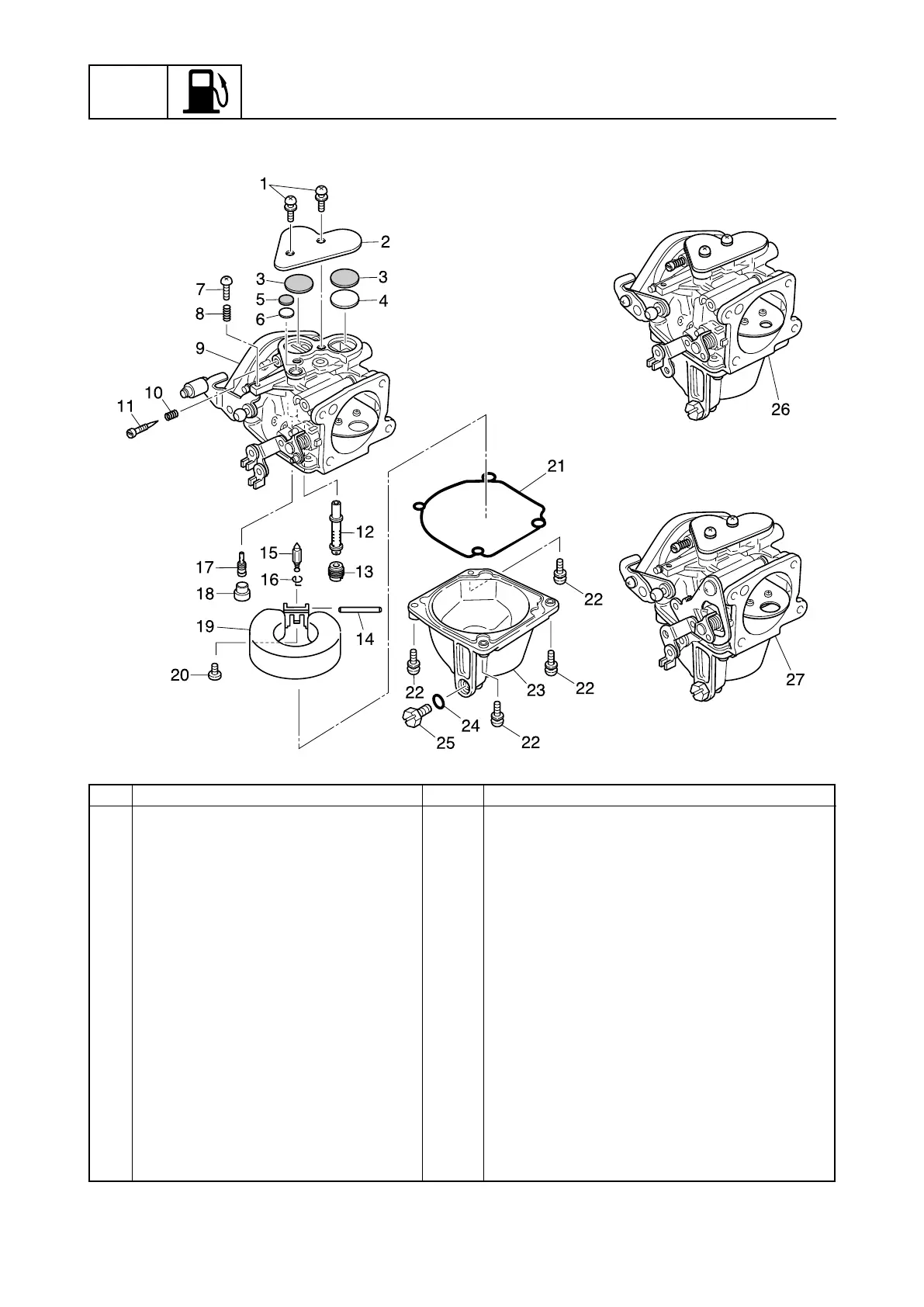

Fuel system
6884070E
No. Part name Q’ty Remarks
1 Screw 6 ø5 × 10 mm
2 Cover 3
3 Rubber seal 2 6
4 Plate 2 3
5 Rubber seal 1 3
6 Plate 1 3
7 Throttle stop screw 1
8 Spring 1
9 Carburetor body 3
10 Spring 3
11 Pilot screw 3
12 Main nozzle 3
13 Main jet 3
14 Float pin 3
15 Needle valve 3
16 Clip 3
17 Pilot jet 3
