STEERING HANDLE
BRKT

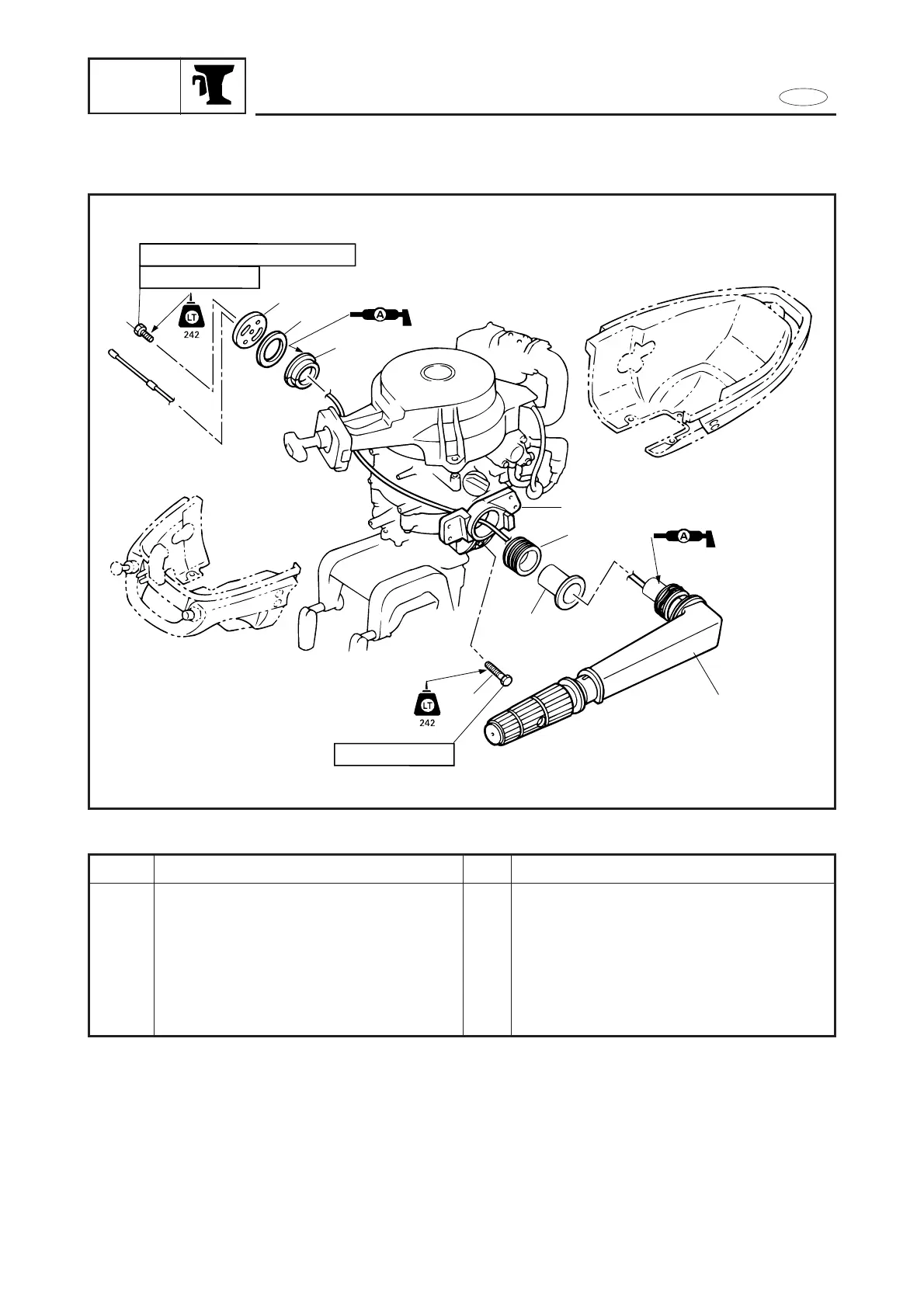

EXPLODED DIAGRAM
1
2
3
5
6
7
8
9
4
M8 x 25 mm
M8 x 30 mm
18 Nm (1.8m•kg, 13 ft•lb)
7-4
REMOVAL AND INSTALLATION CHART
Step
4
5
6
7
8
9
Q’ty
1
1
1
1
2
1
Service points
Reverse the removal steps for installation.
Procedure/Part name
Plate washer
Steering handle ass’y
Collar
Rubber bushing
Bolt (steering bracket)
Steering bracket
