119
MOTIF XS6/MOTIF XS7/MOTIF XS8
[Check item]
Check that the knobs are not stuck, values change smoothly and
that judgments are OK.
[Judgment indication]
OK
05 :
Knob
TEST
MOTIF XS Test Program
Knob 1
Knob 2
Knob 3
Knob 4
Knob 5
Knob 6
Knob 7
Knob 8
OK
OK
OK
OK
OK
OK
OK
OK
NG: No indication
[MIDI code output for judgment result]
OK: A0 06 02 <==
NG: No output
[How to quit test]
When the judgment is shown and output, the test will be
completed and item selection condition will be selected.
If the judgment is NG on the way, refer to “D. How to carry
out tests when judged as NG
” (page 113) to proceed the
test program.
[Others]
None

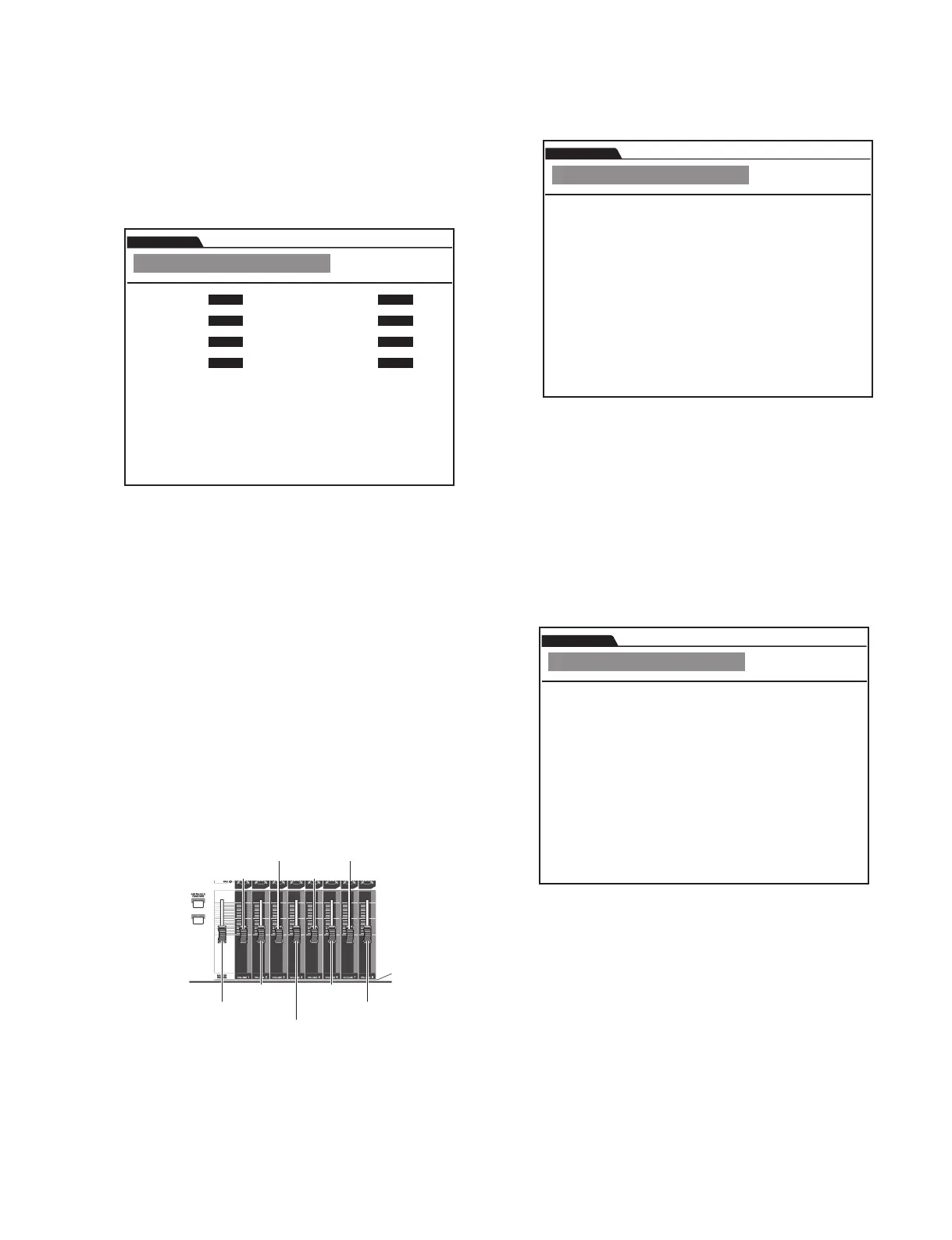

T06: Slider（VOLUME1 to 8）
(Test Code: A00700)
VOLUME1
VOLUME3
VOLUME5
VOLUME7
VOLUME2
VOLUME4
MASTER VOLUME
VOLUME6
VOLUME8
* MASTER VOLUME is checked at T14 and T15.
[First indication]
[Test contents]
Check that sliders 1 to 8 (VOLUME 1 to 8) work normally.
Compare the AD data (slider) from the EBUS controller with
the target value on the LCD.
[Test method]
Move each slider according to an LCD indication as follows
smoothly from bottom to top:
Slider 1 to 8 (VOLUME 1 to 8): 0 [min.] (0 to 1)
"
127 [max.] (126 to 127).
The order of the sliders to be checked is not designated.
Press
[ENTER]
06 :
Slider
TEST
MOTIF XS Test Program
[Check item]
Check that the knobs are not stuck, values change smoothly and
that judgments are OK.
06 :
Slider
TEST
MOTIF XS Test Program
yyy: Target value
xxx: Current value
Slider 1 < yyy > xxx
Slider 2 < yyy > xxx
Slider 3 < yyy > xxx
Slider 4 < yyy > xxx
Slider 5 < yyy > xxx
Slider 6 < yyy > xxx
Slider 7 < yyy > xxx
Slider 8 < yyy > xxx
To Next Page
