22
MOTIF XS6/MOTIF XS7/MOTIF XS8

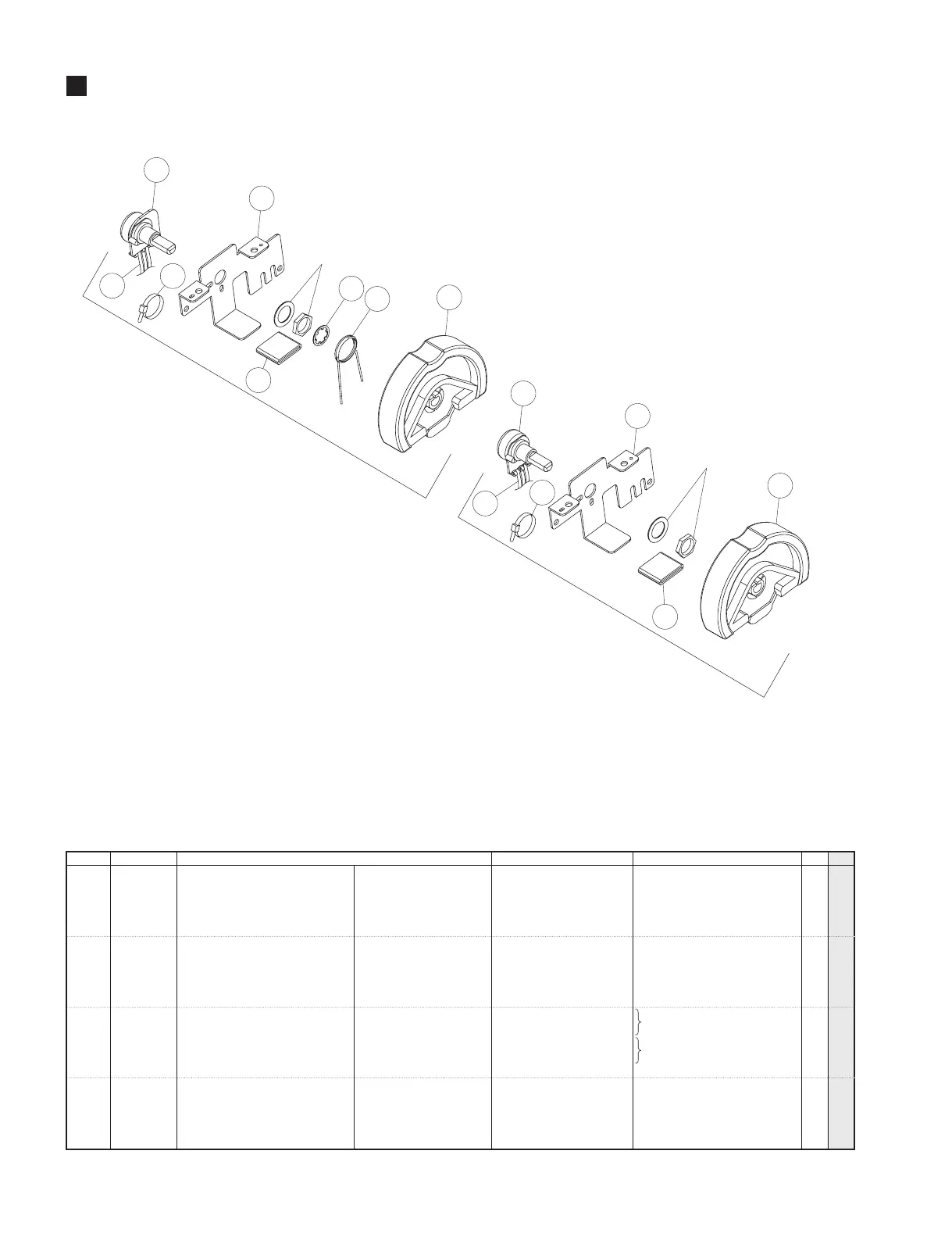

WHEEL ASSEMBLY
(ホイールAss'y)
40
40
10
10
90
80
80
90
60
20
20
30
50
70
MODULATION
PITCH BEND
Attachment for rotary VR
VR
付属品)
Attachment for rotary VR
VR
付属品)
WHEEL ASSEMBLY
ホイールAss'
MOTIF XS6/XS7/XS8
--
Wheel Assembly
ホイールAss'
MOTIF XS6/XS7 (WH16230)
--
Wheel Assembly
ホイールAss'
MOTIF XS8 (WH16240)
10
VF536800
Frame SECC-T1N T=1.0
フレーム
202
20
V4579900
Wheel Black EX
ホイールEX
204
30
VC792800
Spring
リターンSP
01
40
CB819020
Wheel Tube
ホイールチューブ
204
50
EW600110
Stop Ring 12.0
CS形止め輪
01
60
VQ764300
Rotary Variable Resistor 10.0K RK16311
ロータリーVR
PITCH 03
70
VN245400
Rotary Variable Resistor 10.0K RK16311
ロータリーVR
MODULATION 03
80
--
Connector Assembly WHRB67 PHR-8P/3P
WHRB67束線
MOTIF XS6/XS7 (WG98380)
80
--
Connector Assembly WHRB67 PHR-8P/3P
WHRB67束線
MOTIF XS6/XS7 (WG98381)
80
--
Connector Assembly WHRB8 PHR-8P/3P
WHRB8束線
MOTIF XS8 (WG98350)
80
--
Connector Assembly WHRB8 PHR-8P/3P
WHRB8束線
MOTIF XS8 (WG98351)
90
--
Cord Holder BK-1
インシュロックタイ
(CB06925) 2
REF NO.
PART NO.
DESCRIPTION
部品名
REMARKS
QTY
RANK
*
: New Parts RANK: Japan only
