MOTIF XS6/MOTIF XS7/MOTIF XS8
38

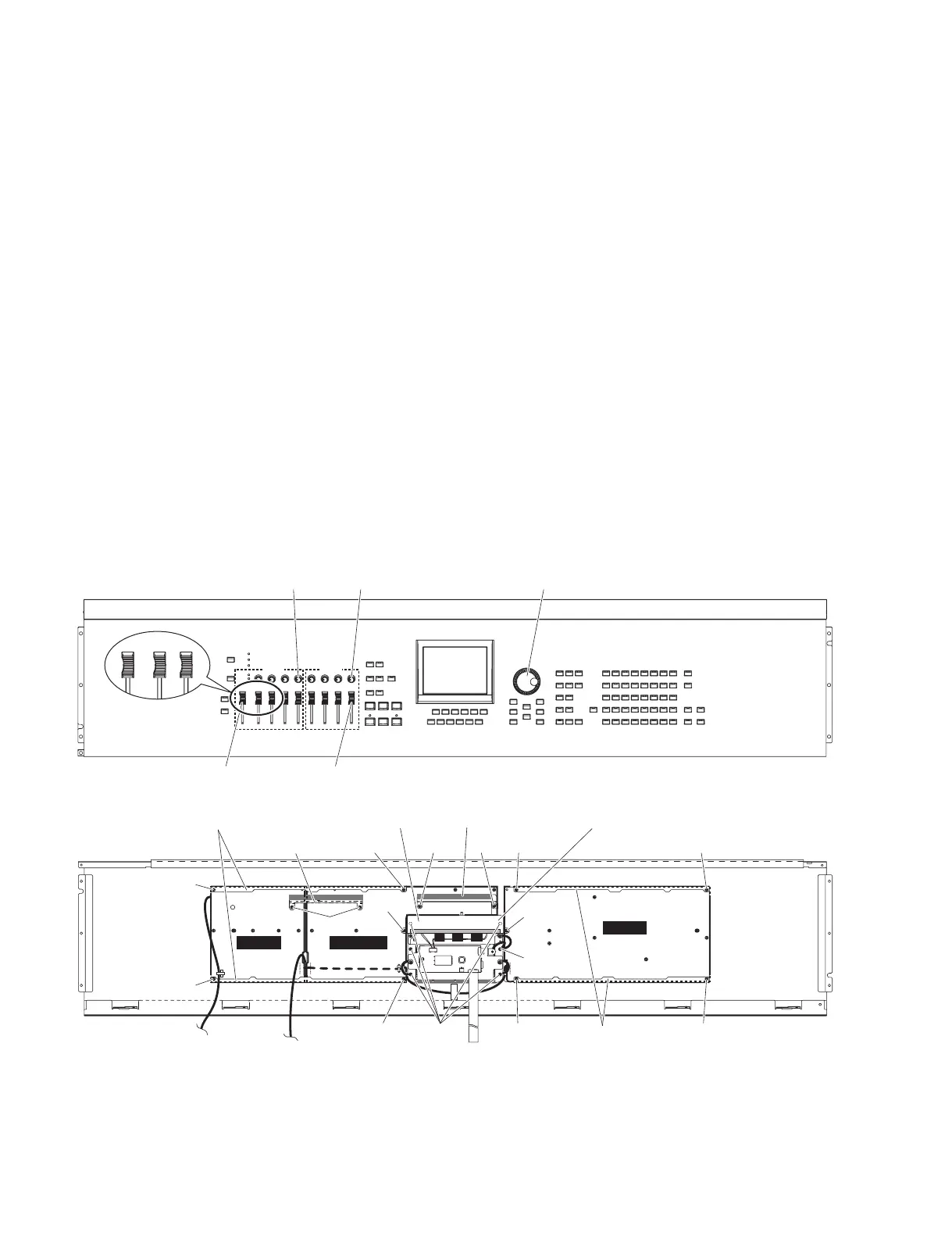

<Top view>
<Bottom view>
Slider knob
(スライダーノブ)
Slider knob
(スライダーノブ)
Knob
(ノブ)
Knob
(ノブ)
Encoder knob
(エンコーダーツマミ)
G
H
PNA
PNC
PNB-PN
PCB angle 1 (B)
(PCBアングル1(B))
PCB angle 1 (A)
(PCBアングル1(A))
EMC angle
(EMCアングル)
Support angle
(サポートアングル)
EMC cover
(EMCカバー)
Display assembly
(ディスプレイAssy)
[70B]
[70B]
[410]
[40B]
[70B] [110] [110][52B] [52A]
[70B] [110][110][130A]
[130B]
[90A]
7. Display Assembly
(Time required: About 5 minutes)
7-1
Remove the side cover R and side cover L. (See procedure 1.)
7-2
Remove the control panel assembly. (See procedure 2.)
7-3 Remove the screw marked [40B], the screw
marked [52A] and the screw marked [90A]. The
EMC cover can then be removed. (Fig. 8)
7-4 Remove the five (5) screws marked [130A] and
the screw marked [130B]. The display assembly
can then be removed. (Fig. 8)
8. JKAN-LC Circuit Board, LCD
8-1
Remove the side cover R and side cover L. (See procedure 1.)
8-2
Remove the control panel assembly. (See procedure 2.)
8-3
JKAN-LC Circuit Board (Time required: About 4 minutes)
8-3-1 Remove the screw marked [D80]. The JKAN-LC
circuit board can then be removed. (Fig. 9)
8-4 LCD (Time required: About 5 minutes)
8-4-1 Remove the EMC cover. (See procedure 7-3.)
8-4-2 Remove the four (4) screws marked [D60] and the
screw marked [130B]. The LCD can then be re-
moved together with the display angle. (Fig. 9)
8-4-3 Remove the screw marked [D50]. The LCD can
then be removed from the display angle. (Fig. 9)
7. ディスプレイ Assy(所要時間:約 5 分)
7-1 腕木 R と腕木 L を外します。(1 項参照)
7-2 コンパネ Assy を外します。(2 項参照)
7-3 [40B] のネジ 1 本と [52A] のネジ 1 本、[90A] のネ
ジ 1 本を外して、EMC カバーを外します。(図 8)
7-4 [130A] のネジ 5 本と [130B] のネジ 1 本を外して、
ディスプレイ Assy を外します。(図 8)
8. JKAN-LC シート、液晶ディスプレイ
8-1 腕木 R と腕木 L を外します。(1 項参照)
8-2 コンパネ Assy を外します。(2 項参照)
8-3 JKAN-LC シート(所要時間:約 4 分)
8-3-1 [D80] のネジ 1 本を外して、JKAN-LC シートを外
します。(図 9)
8-4 液晶ディスプレイ(所要時間:約 5 分)
8-4-1 EMC カバーを外します。(7-3 項参照)
8-4-2 [D60] のネジ 4 本と [130B] のネジ 1 本を外して、
ディスプレイアングルごと液晶ディスプレイを外
します。(図 9)
8-4-3 [D50] のネジ 1 本を外して、ディスプレイアング
ルから液晶ディスプレイを外します。(図 9)
Fig.8( 図 8)
[40B]: BindHeadTappingScrew-B(B タイト+ BIND)3.0X6MFZN2W3(WE936300)
[52A],[52B]:BindHeadTappingScrew-B(B タイト+ BIND)3.0X8MFZN2W3(WE774300)
[70B]: BindHeadTappingScrew-B(B タイト+ BIND)3.0X6MFZN2W3(WE936300)
[90A]: BindHeadTappingScrew-B(B タイト+ BIND)3.0X6MFZN2W3(WE936300)
[110]: BindHeadTappingScrew-B(B タイト+ BIND)3.0X6MFZN2W3(WE936300)
[130]: BindHeadTappingScrew-B(B タイト+ BIND)3.0X8MFZN2W3(WE774300)
[410]: BindHeadTappingScrew-B(B タイト+ BIND)3.0X6MFZN2W3(WE936300)
