Yamaha Motif XS Series User Manual

MOTIF XS6/MOTIF XS7/MOTIF XS8
56

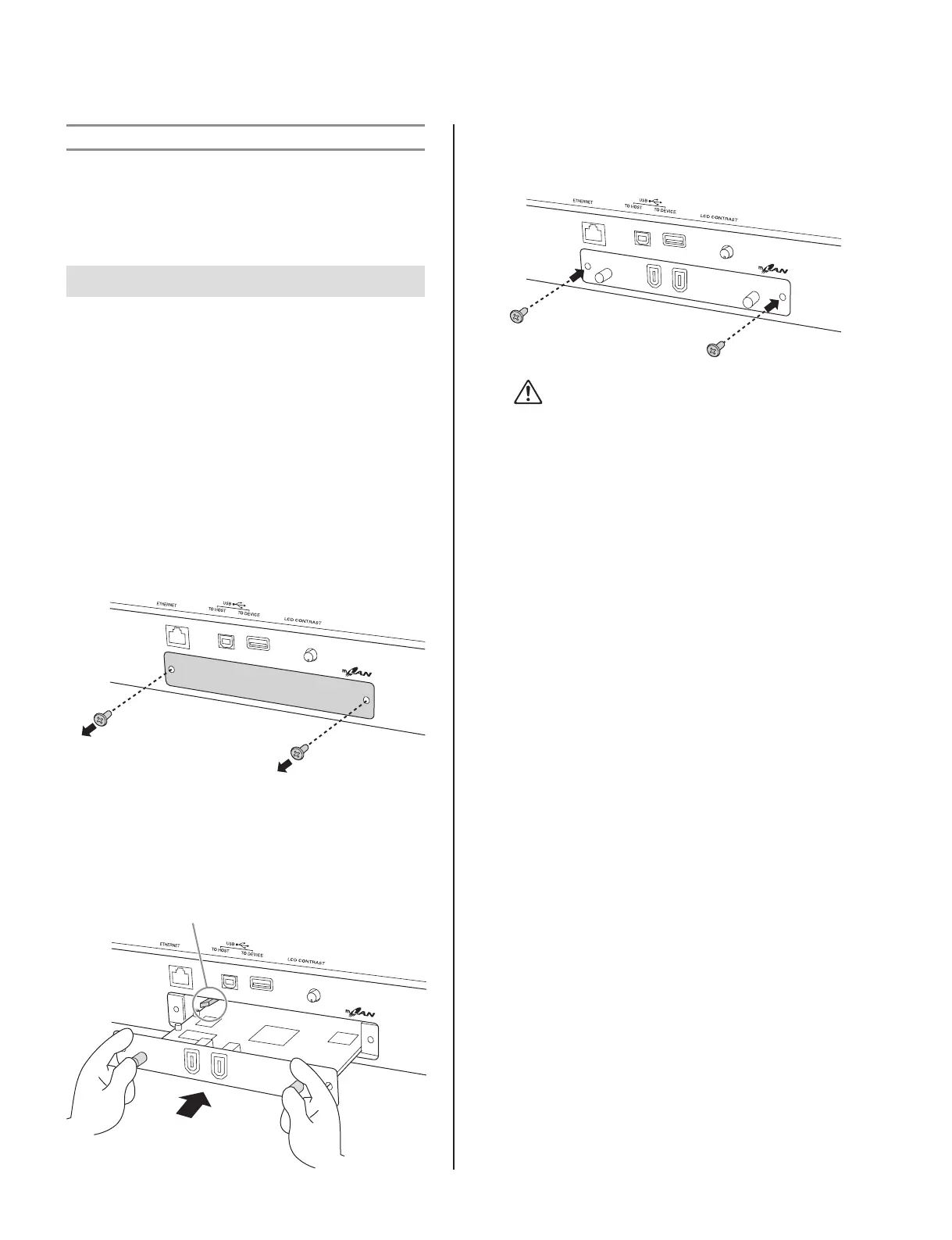

Installing the mLAN16E2
Turn the power of the MOTIF XS off, and
disconnect the AC power cord. Also, make
sure to disconnect the MOTIF XS from any
connected external devices.
Remove the cover for the mLAN16E2 from
the rear panel.
With the rear panel of this synthesizer facing you,
remove the two screws from the cover.
Important
Keep the removed screws in a safe place. They will be
used when installing the mLAN16E2. Be careful not to
misplace them. Keep the cover and fi xing screws in a
safe place for future use.
1
2
Insert the mLAN16E2 along the guide rails.
Push the mLAN16E2 all the way into the slot so
that the connector at the end of the mLAN16E2 is
correctly inserted into the connector inside the slot.
3
Replace the cover with the two screws you
removed in step 2 above.
4
mLAN16E2
The optionally available mLAN expansion board
(mLAN16E2) can be installed to the MOTIF XS6 and
MOTIF XS7. The MOTIF XS8 is equipped with two mLAN
connectors equivalent to the mLAN16E2 by default.
Guide rails
CAUTION
Malfunctions or incorrect operation may occur if the
mLAN16E2 is not properly fastened.

Yamaha Motif XS Series Specifications

General

Type	Workstation Synthesizer
Sound Engine	AWM2 with Expanded Articulation
Polyphony	128 notes
Wave ROM	355MB (when converted to 16-bit linear format)
Arpeggiator	6, 000 types
Effects	Reverb, chorus, part EQ
Sequencer	16-track sequencer, 130, 000 notes
Display	320 x 240 dot backlit LCD
Connectivity	USB, MIDI In/Out/Thru
Storage	USB storage device support
Keyboard	88-key (Motif XS8), 76-key (Motif XS7), 61-key (Motif XS6)
Number of Voices	1, 024 normal voices + 64 drum kits
