Yamaha Motif XS Series User Manual

MOTIF XS6/MOTIF XS7/MOTIF XS8
120

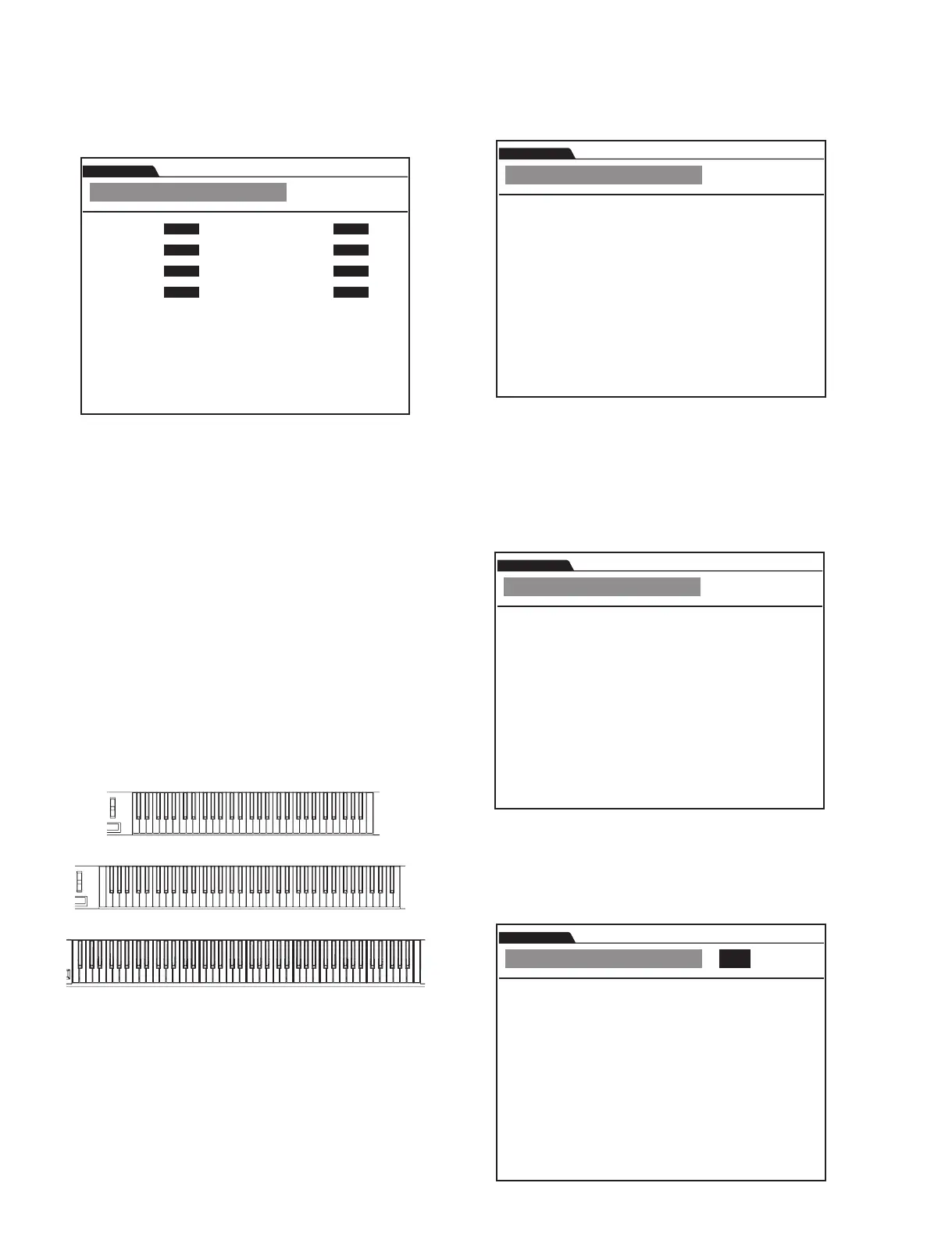

[Judgment indication]
OK
05 : Slider
TEST
MOTIF XS Test Program
Slider 1
Slider 2
Slider 3
Slider 4
Slider 5
Slider 6
Slider 7
Slider 8
OK
OK
OK
OK
OK
OK
OK
OK
NG: No indication
[MIDI code output for judgment result]
OK: A0 07 02 <==
NG: No output
[How to quit test]
When the judgment is shown and output, the test will be
completed and item selection condition will be selected.
If the judgment is NG on the way, refer to “D. How to carry
out tests when judged as NG
” (page 113) to proceed the
test program.
[Others]
None
T07: 1KeyOn
(Test Code: A00800)
XS6
XS7
XS8
C1 C2 C3 C4 C5 C6
C1E0 C2 C3 C4 C5 C6 G6
C1C0A-1 C2 C3 C4 C5 C6 C7
[First indication]
Press [ENTER] 07 : 1KeyOn
TEST
MOTIF XS Test Program
[Test contents]
Check that the keyboard works normally.
Compare the Key ON data from the EBUS controller with
<C3> Key ON.
[Test method]
Input KeyCode = C3. (Press C3 key)
[Check item]
Check the test result on the LCD.
[Judgment indication]
OK
Press [ C3 Key ] 07 : 1KeyOn
TEST
MOTIF XS Test Program
OK 07 : 1KeyOn
TEST
MOTIF XS Test Program

Yamaha Motif XS Series Specifications

General

Type	Workstation Synthesizer
Sound Engine	AWM2 with Expanded Articulation
Polyphony	128 notes
Wave ROM	355MB (when converted to 16-bit linear format)
Arpeggiator	6, 000 types
Effects	Reverb, chorus, part EQ
Sequencer	16-track sequencer, 130, 000 notes
Display	320 x 240 dot backlit LCD
Connectivity	USB, MIDI In/Out/Thru
Storage	USB storage device support
Keyboard	88-key (Motif XS8), 76-key (Motif XS7), 61-key (Motif XS6)
Number of Voices	1, 024 normal voices + 64 drum kits
