Yamaha Motif XS Series User Manual

MOTIF XS6/MOTIF XS7/MOTIF XS8
12
POWER
ON/ OFF
AC IN
LCD CONTRASTETHERNET
USB
TO DEV ICETO H OST
POWER
ON/ OFF
AC IN
LCD CONTRASTETHERNET
USB
TO DEVICETO HO ST
POWER
ON/ OFF
AC IN
USB
TO DEVICETO HO ST
LCD CONTRASTETHERNET
/
)01
24
MOTIF XS6
MOTIF XS7
MOTIF XS8
/
)01
24
/
)01
6
4
C
C'

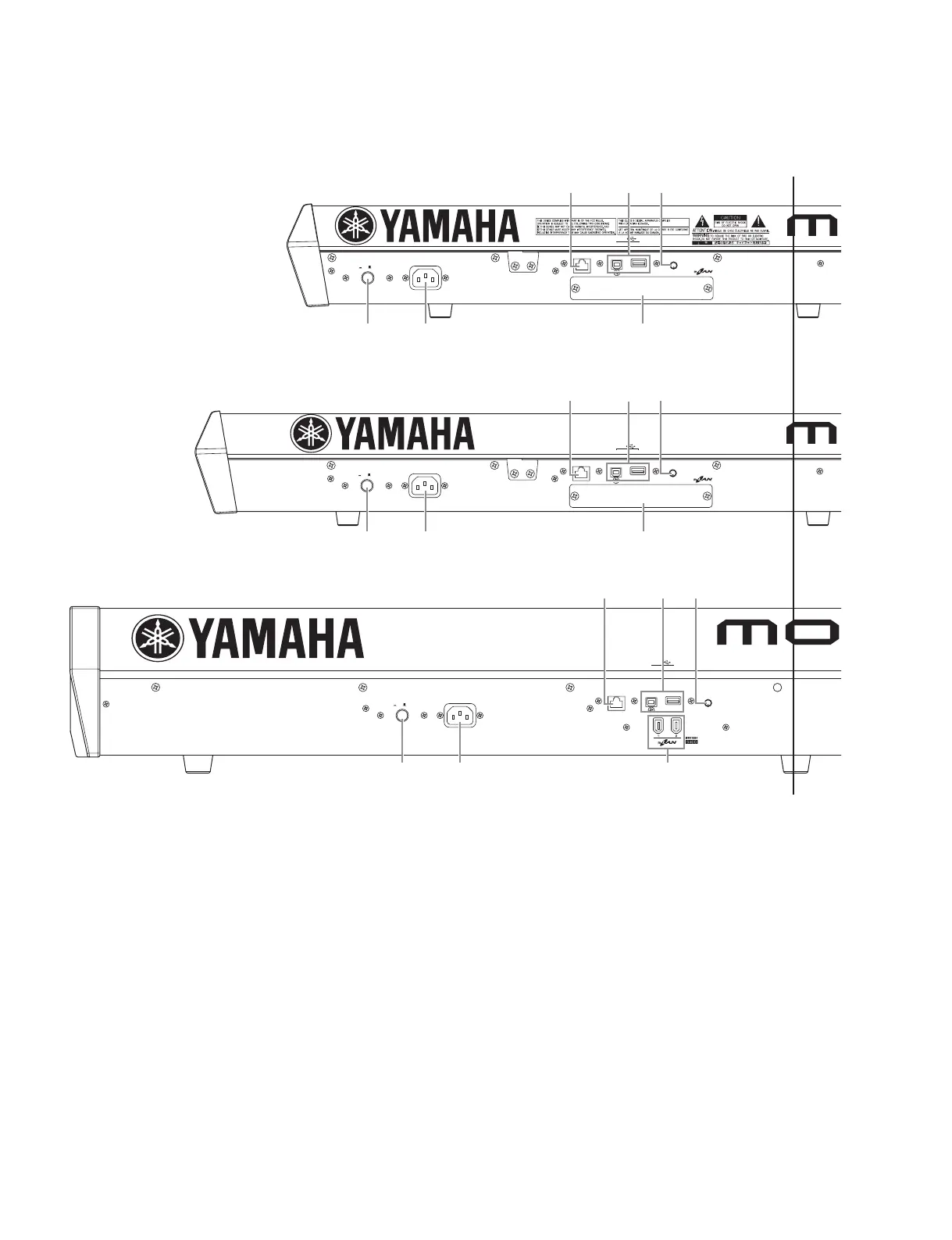

• Rear Panel（リアパネル）
q [POWER ON/OFF] switch
w [AC IN] (AC Power Cord Socket)
e [ETHERNET] connector
r [USB] connectors
t [LCD CONTRAST] Control
y [mLAN 1, 2] (IEEE 1394) connectors
(only MOTIF XS8)
u mLAN expansion board (mLAN16E2)
cover (MOTIF XS6, MOTIF XS7)
i [DIGITAL OUT] connector
q [POWERON/OFF](パワーオン/オフ)スイッチ
w [ACIN](ACイン)端子
e [ETHERNET](イーサーネット)端子
r [USB]端子
t [LCDCONTRAST](LCDコントラスト)ノブ
y [mLAN1,2](IEEE1394)端子
 (MOTIFXS8のみ)
u mLAN拡張ボード(mLAN16E2)取り付け口
 (MOTIFXS6/7のみ)
i [DIGITALOUT](デジタルアウトプット)端子

Yamaha Motif XS Series Specifications

General

Type	Workstation Synthesizer
Sound Engine	AWM2 with Expanded Articulation
Polyphony	128 notes
Wave ROM	355MB (when converted to 16-bit linear format)
Arpeggiator	6, 000 types
Effects	Reverb, chorus, part EQ
Sequencer	16-track sequencer, 130, 000 notes
Display	320 x 240 dot backlit LCD
Connectivity	USB, MIDI In/Out/Thru
Storage	USB storage device support
Keyboard	88-key (Motif XS8), 76-key (Motif XS7), 61-key (Motif XS6)
Number of Voices	1, 024 normal voices + 64 drum kits
