Yamaha Motif XS Series User Manual

MOTIF XS6/MOTIF XS7/MOTIF XS8
46
18. Rear Panel
18-1 Turn the unit upside down and remove the two (2)
screws marked [32A], seven (7) screws marked
[35], the screw marked [45B] and the screw
marked [55B]. (Fig. 12)
18-2 Remove the side cover R and side cover L.
(See procedure 1.)
18-3 Remove the control panel assembly.
(See procedure 2.)
18-4 Remove the two (2) screws marked [32B], the
screw marked [49B], the screw marked [59B],
three (3) screws marked [115], two (2) screws
marked [180B], two (2) screws marked [185B],
two (2) screws marked [220B], fi ve screws marked
[253B], nine (9) screws marked [290] and two (2)
screws marked [540]. Then, while bending the arm
assemblies R and L a little outwards, remove the
rear panel. (Fig. 18, 19)
* One each bushing is inserted into the two (2)
threaded holes marked [220A]. Take care not to
lose them as they can be easily removed.
18. リアパネル
18-1 本体を裏向きにして、[32A] のネジ 2 本、[35] の
ネジ 7 本、[45B] のネジ 1 本と [55B] のネジ 1 本
を外します。（図 12）
18-2 腕木 R と腕木 L を外します。（1 項参照）
18-3 コンパネ Assy を外します。（2 項参照）
18-4 [32B] のネジ 2 本、[49B] のネジ 1 本、[59B] のネ
ジ1本、[115]のネジ 3 本、[180B] のネジ 2 本、[185B]
のネジ 2 本、[220B] のネジ 2 本、[253B] のネジ 5
本、[290B] のネジ 9 本、[540] のネジ 2 本を外して、
左右の腕木 Assy を外側に広げながらリアパネル
を外します。（図 18、図 19）
※ [220A] のネジのネジ穴 2 箇所には、それぞれ 1 個
ずつブッシュが差し込まれています。外れやすい
ので、無くさないように気を付けてください。
[32B] [32B]
Rear panel
（リアパネル）

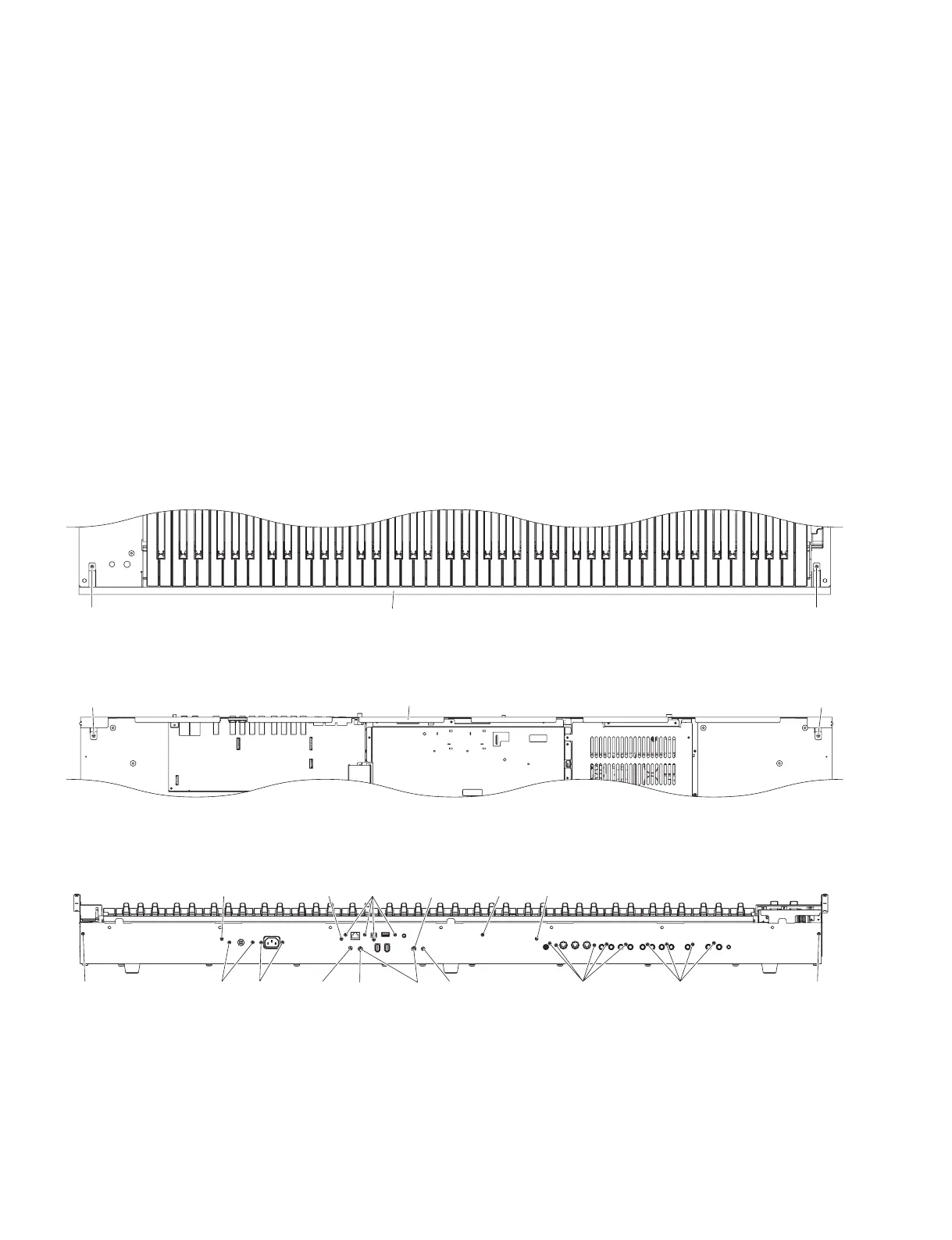

Fig.17( 図 17)
Fig.19( 図 19)
[49B]: BindHeadTappingScrew-B（B タイト＋ BIND）3.0X8MFZN2B3(WE774400)
[59B]: BindHeadTappingScrew-B（B タイト＋ BIND）3.0X8MFZN2B3(WE774400)
[115]: BindHeadTappingScrew-B（B タイト＋ BIND）3.0X8MFZN2B3(WE774400)
[180B]:BindHeadTappingScrew-B（B タイト＋ BIND）3.0X8MFZN2B3(WE774400)
[185B]:BindHeadTappingScrew-B（B タイト＋ BIND）3.0X8MFZN2B3(WE774400)
[220B]:BindHeadScrew（小ネジ＋ BIND）3.0X6MFZN2B3(WE878300)
[253B]:BindHeadScrew（小ネジ＋ BIND）3.0X6MFZN2B3(WE878300)
[290B]:BindHeadTappingScrew-B（B タイト＋ BIND）3.0X8MFZN2B3(WE774400)
[540]: BindHeadScrew（小ネジ＋ BIND）4.0X6MFZN2B3(WE878400)
Fig.18( 図 18)
[22B] [22B]
Front rail assembly
（口棒Assy）
[22B]:BindHeadTappingScrew-1（TP#1 ＋ BIND）3.5X12MFZN2W3(WE970900)
<Rear view>
[290B][290B]
[253B]
[253B]
[220B]Bushing
（ブッシュ）
Bushing
（ブッシュ）
[540] [540]
[115] [115] [115]
[49B] [180B] [59B][185B]
[32B]:BindHeadTappingScrew-1（TP#1 ＋ BIND）3.5X12MFZN2W3(WE970900)

Yamaha Motif XS Series Specifications

General

Type	Workstation Synthesizer
Sound Engine	AWM2 with Expanded Articulation
Polyphony	128 notes
Wave ROM	355MB (when converted to 16-bit linear format)
Arpeggiator	6, 000 types
Effects	Reverb, chorus, part EQ
Sequencer	16-track sequencer, 130, 000 notes
Display	320 x 240 dot backlit LCD
Connectivity	USB, MIDI In/Out/Thru
Storage	USB storage device support
Keyboard	88-key (Motif XS8), 76-key (Motif XS7), 61-key (Motif XS6)
Number of Voices	1, 024 normal voices + 64 drum kits
