MOTIF XS6/MOTIF XS7/MOTIF XS8
58

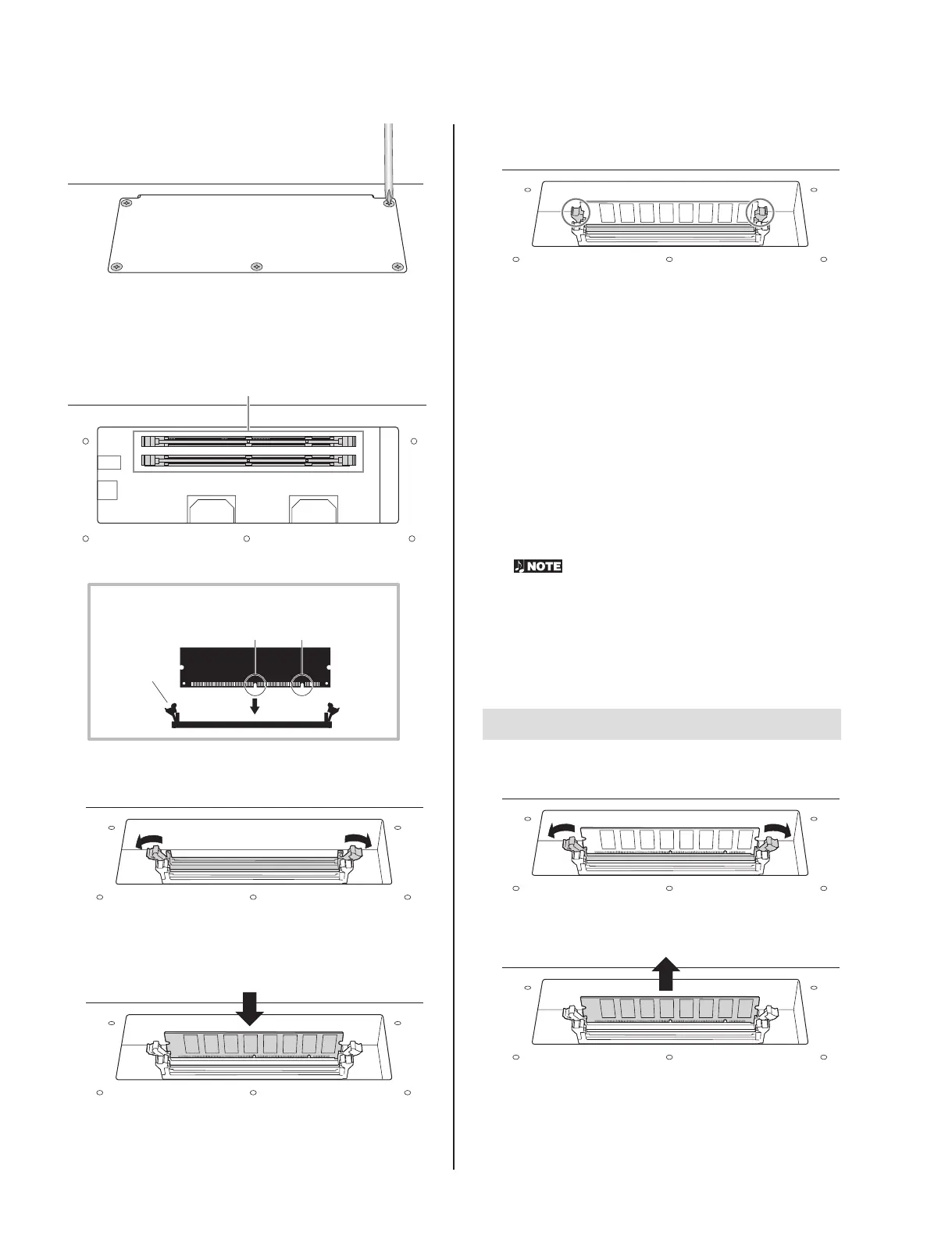

Insert the two DIMMs into the DIMM sockets.
4
4-1 Press the ejector levers to the outside of the
socket.
Re-install the cover you removed in step 3,
in reverse order.
Check that the installed DIMMs are function-
ing properly.
Set the MOTIF XS right-side up, and connect the
power cord to the rear-panel AC IN jack and an AC
outlet. Turn on the power, go to the Sampling display
by pressing the [INTEGRATED SAMPLING] button,
and press the [F6] Rec button then [SF6] INFO
button. If the DIMMs have been installed properly,
the appropriate available memory size is indicated in
the display.
NOTE If the DIMMs have not been installed
properly, the MOTIF XS may freeze when you
press the [INTEGRATED SAMPLING] button.
If this occurs, turn the power off, perform the
instructions above again, and make sure to install
the DIMMs fi rmly in step 4.
5
6
# Rear side
Bottom
Location for DIMM installation
DIMM sockets
Installing the DIMM modules to the sockets
Make sure that the DIMM module is aligned correctly
before you install it.
Notch for alignment
Ejector lever
4-2 Insert the DIMM vertically in the socket.
Press the DIMM in firmly until it “snaps” or
locks in place.
Confi rm whether or not both the levers are
fi rmly locked.
Removing DIMMs
Press the ejector lever until the DIMM unlocks.
1
Pull the DIMM vertically out of the socket.
2
To Next Page
