Yamaha Motif XS Series User Manual

6
MOTIF XS6/MOTIF XS7/MOTIF XS8

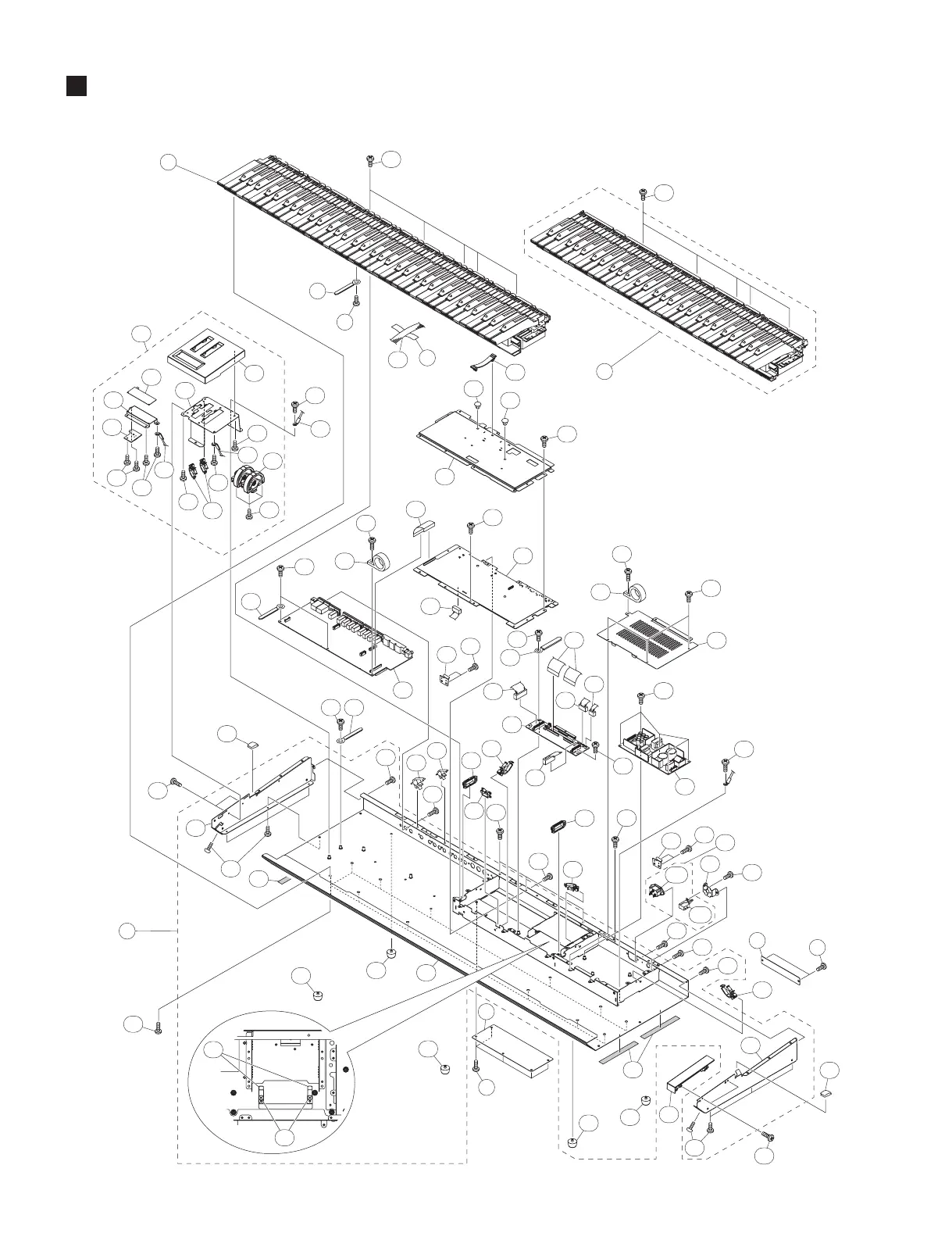

MOTIF XS6/XS7 BOTTOM ASSEMBLY
（MOTIFXS6/XS7ボトム Ass'y）
XS7
FSX keyboard assembly D: See page 18.
（FSX鍵盤D）
End block L assembly
（拍子木LAss'y）
Bottom unit
（ボトムユニット）
XS6
FSX keyboard assembly D: See page 16.
（FSX鍵盤D）
E20
E30
E40
E80
E80
E80
E80
160
B30
B50
B10
B50
B20
B40
B40
130
140
120
430
200
200
180
500
190
410
400
410
400
270
290
230
260
270
350
450
340
340
110
110
330
220
210
420
550
460
310
350
440
420
370
430
B50
B50
100
B50
120
390 380
360
385
510
530
320
300
540
290
380
E70
E10
E50
150
170
B40
B40
430
510
570
560
280
530
E60
90
80
70
60
500b
500a
XS7 only
XS6 only
60
40
50
10
20
30
E80
E80
E90
E90
165
390
383
267
265
285
460
B60
B60
B70
B80

Yamaha Motif XS Series Specifications

General

Type	Workstation Synthesizer
Sound Engine	AWM2 with Expanded Articulation
Polyphony	128 notes
Wave ROM	355MB (when converted to 16-bit linear format)
Arpeggiator	6, 000 types
Effects	Reverb, chorus, part EQ
Sequencer	16-track sequencer, 130, 000 notes
Display	320 x 240 dot backlit LCD
Connectivity	USB, MIDI In/Out/Thru
Storage	USB storage device support
Keyboard	88-key (Motif XS8), 76-key (Motif XS7), 61-key (Motif XS6)
Number of Voices	1, 024 normal voices + 64 drum kits
