Yamaha XZ550 1982 User Manual

1. Electric an motor
2.
Fan
1. Moteur de ventilateur electrique
2.
Ventilateur
1. Liif-termotor
2, Ligtar eIngeschaltet

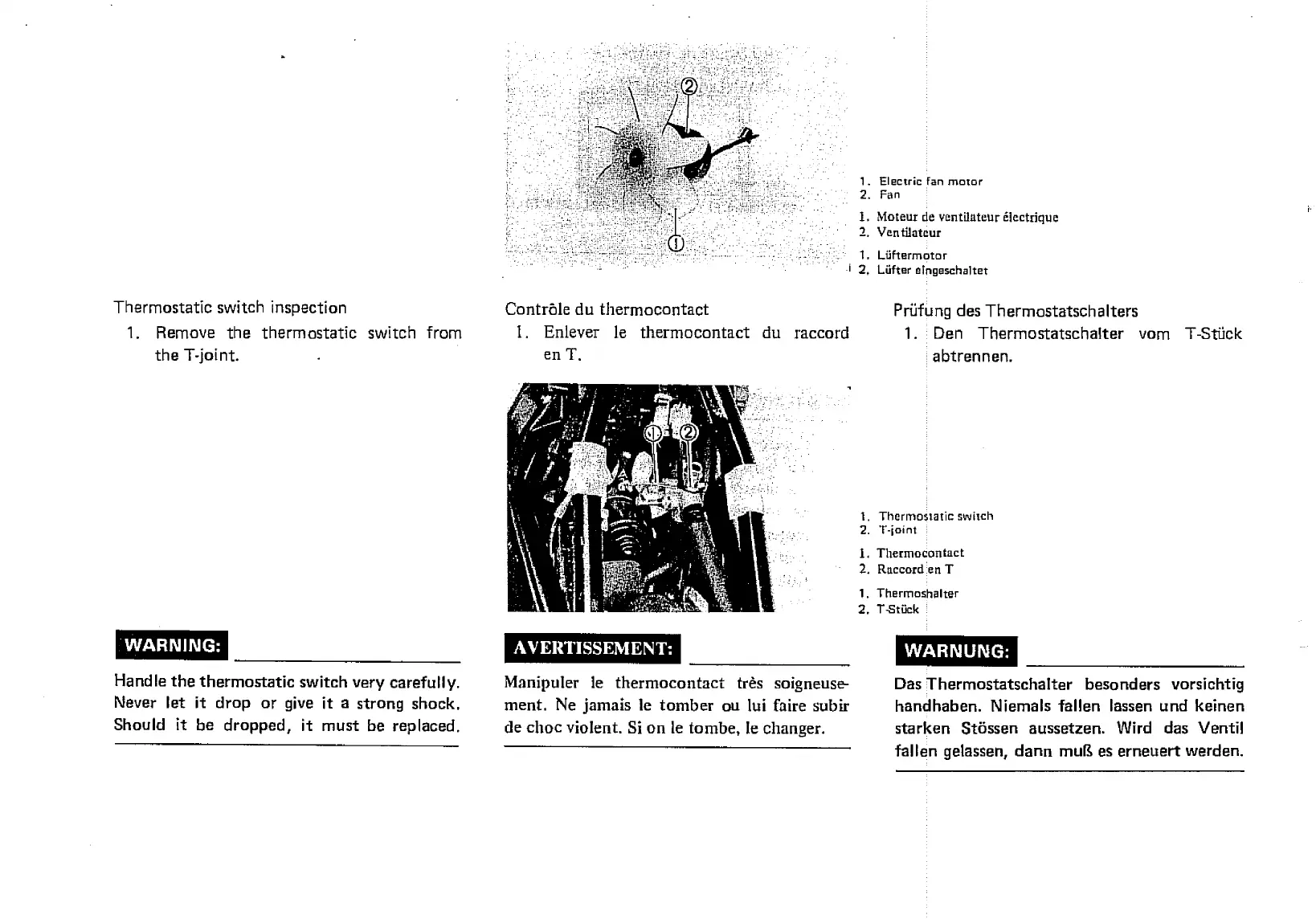

Thermostatic switch inspection
1. Remove the thermostatic switch from
the T-joint.
Conti-Ole du thermocontact
1. Enlever le thermocontact du raccord
en T.
Prilfung des Thermostatschalters
1. Den Thermostatschalter vonn T-Stiick
abtrennen.
1. Thermo tatic switch
2.
Tioint
1.
Thermocontact
2. Raccord en T
1. Thermoshalter
2. T-Stilck
WARNING:
Handle the thermostatic switch very carefully.
Never let it drop or give it a strong shock.
Should it be dropped, it must be replaced.
AVERTISSEMENT:
Manipuler le thermocontact tres soigneuse-
ment. Ne jamais le tomber ou lui faire subir
de choc violent. Si on le tombet le changer.
WARNUNG:
Das Thermostatschalter besonders vorsichtig
handhaben. Niemals fallen lassen und keinen
starken Stossen aussetzen. Wird das Ventil
fallen gelassen, dann mug es erneuert werden.

Yamaha XZ550 1982 Specifications

General

Year	1982
Manufacturer	Yamaha
Model	XZ550
Category	Motorcycle
Compression Ratio	10.0:1
Starting	Electric
Transmission	5-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Front Brake	Dual disc
Rear Brake	Single disc
Front Tire	100/90-18
Rear Tire	120/90-18
Engine Type	V-twin, four-stroke
Displacement	549 cc
Maximum Power	64 hp @ 9, 500 rpm
Maximum Torque	50 Nm @ 7500 rpm
Fuel System	Carburetor
Rear Suspension	Dual shock
Seat Height	790 mm
