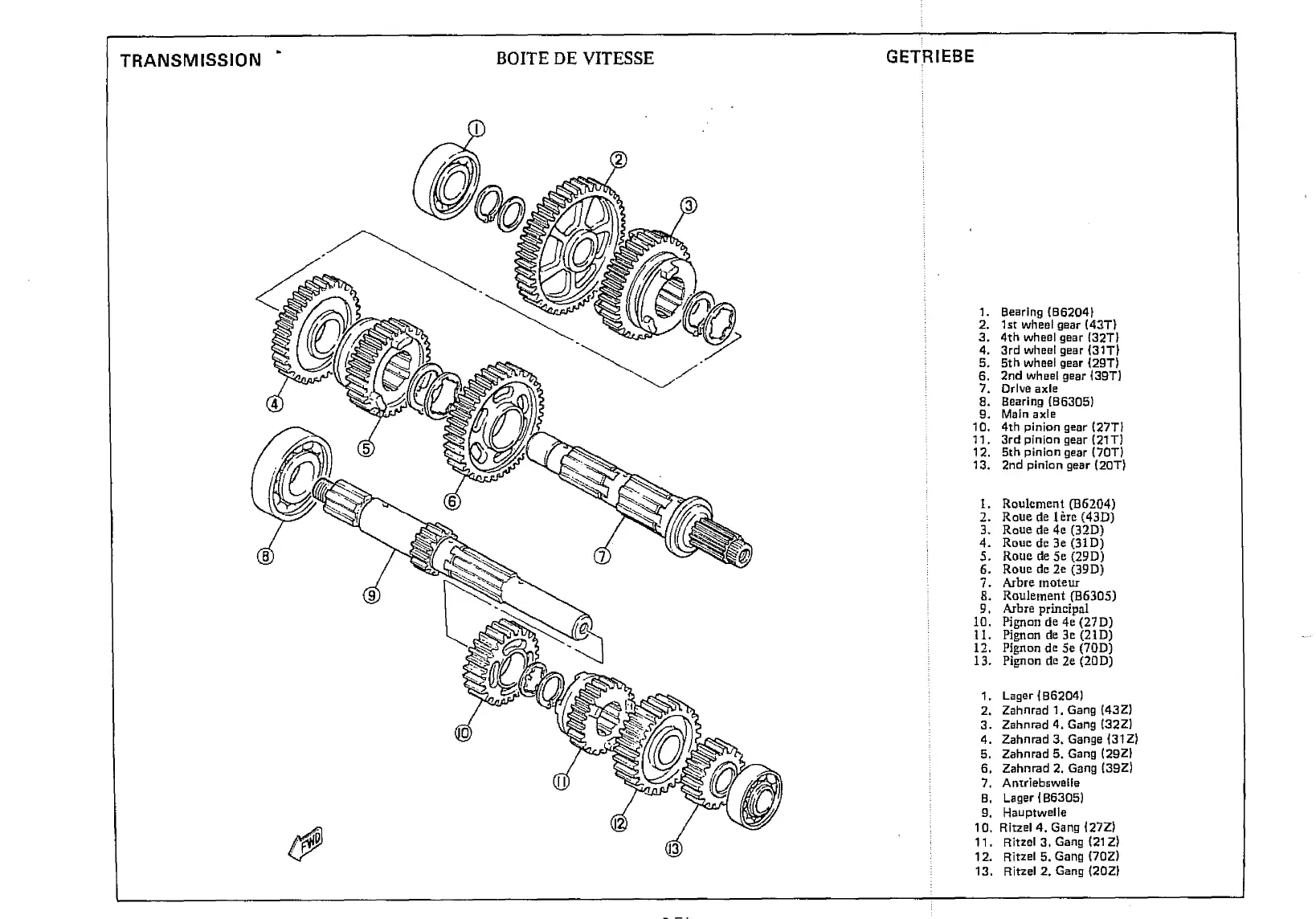

GETRIEBE
TRANSMISSION

BOITE DE VITESSE
1. Bearing (B6204)
2. let wheal gear 143T)
3.
4th wheel gear 132T)
4.
3rd wheel gear (31T)
5. 5th wheel gear (29T)
6.
2nd wheel gear 139T)
7. Drive axle
8. Bearing (B6305)
9.
Main axle
10. 4th pinion gear (2711
11.
3rd pinion gear (21T)
12.
5th pinion gear (70T)
13. 2nd pinion gear (20T)
1, Roulement (B6204)
2. Roue de Jere (43D)
3.
Roue de 4e (32D)
4.
Roue de 3e (31D)
S. Roue de Se (29D)
6. Roue de 2e (39D)
7.
Arbre moteur
8.
Roulement (B6305)
9. Arbre principal
10. Pignon de 4e (27D)
11.
Pignon de 3e (21D)
12.
Pignon de Se (70D)
13. Pignon de 2e (20D)
1. Lager (B6204)
2.
Zahnrad 1. Gang (43Z)
3.
Zahnrad 4. Gang (32Z)
4.
Zahnrad 3. Gange (31Z)
5.
Zahnrad 5. Gang (292)
6.
Zahnrad 2. Gang (39Z)
7.
Antriebsweile
B. Lager (B6305)
9.
Hauptwelle
10.
Ritzel 4. Gang (27Z)
11.
Ritzel 3. Gang (21Z)
12.
Ritzel 5. Gang (70Z)
13.
Ritzel 2, Gang (20Z)

Yamaha XZ550 1982 Specifications

General

Year	1982
Manufacturer	Yamaha
Model	XZ550
Category	Motorcycle
Compression Ratio	10.0:1
Starting	Electric
Transmission	5-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Front Brake	Dual disc
Rear Brake	Single disc
Front Tire	100/90-18
Rear Tire	120/90-18
Engine Type	V-twin, four-stroke
Displacement	549 cc
Maximum Power	64 hp @ 9, 500 rpm
Maximum Torque	50 Nm @ 7500 rpm
Fuel System	Carburetor
Rear Suspension	Dual shock
Seat Height	790 mm
