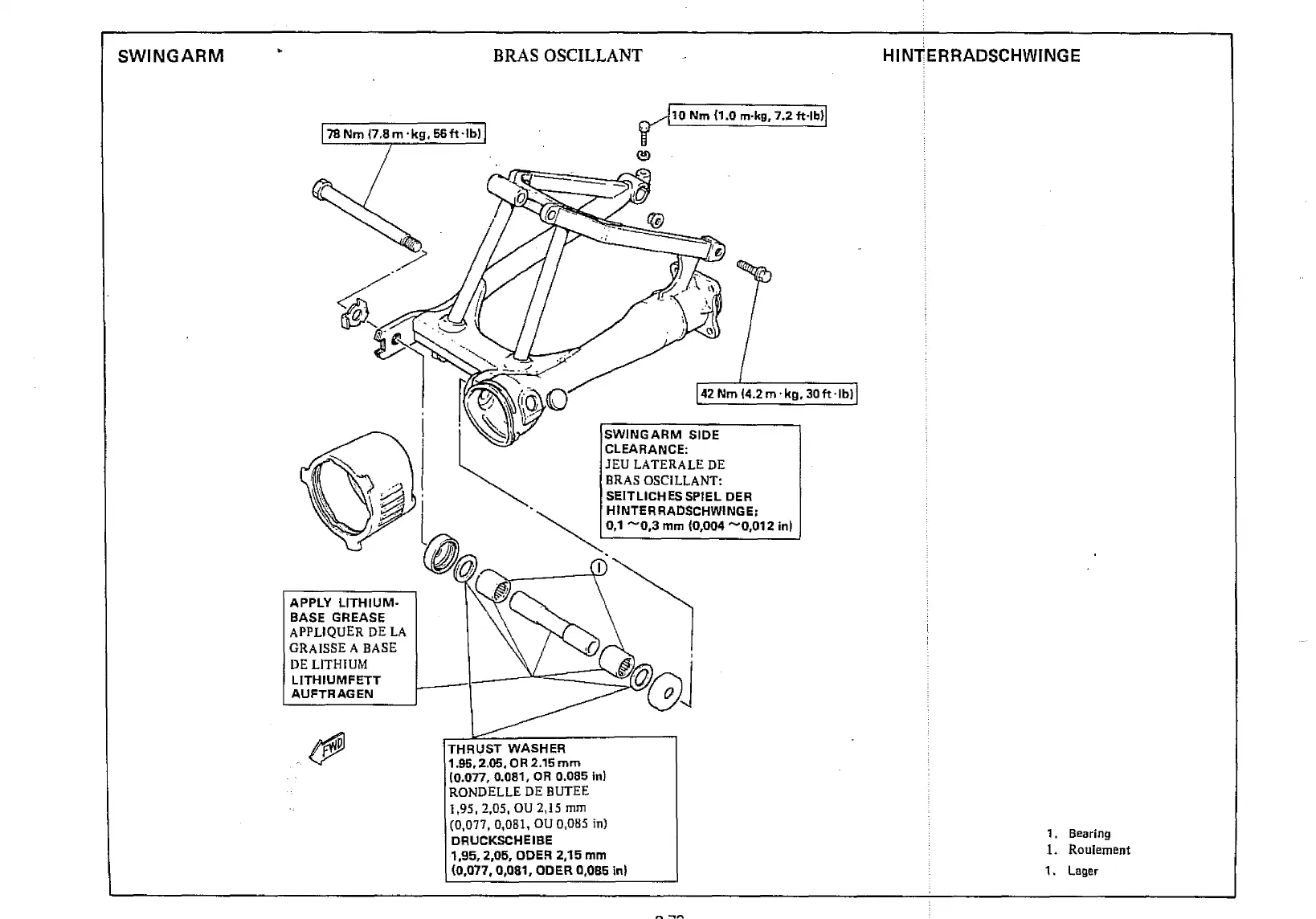

Yamaha XZ550 1982 User Manual

APPLY LITHIUM-
BASE GREASE
APPLIQUER DE LA
GRAISSE A BASE
DE LITHIUM
LITHIUMFETT
AUFTR AG EN
SWINGARM

BRAS OSCILLANT
e
10 Nm (1.0 m•kg, 7.2 ft•lb)
eD
78 Nm 17.8 m • kg, 56 ft•lb)
42 Nm (4.2 m • kg, 30 ft • lb)
SWINGARM SIDE
CLEARANCE:
JEU LATERALE DE
BRAS OSCILLANT:
SEITLICH ES SPIEL DER
HINTERRADSCHWINGE;
0,1 "-'0,3 mm (0,004 0,012 in)
THRUST WASHER
1.95, 2.05, OR 2.15 mm
(0.077, 0.081, OR 0.085
in)
RONDELLE DE BUTEE
1,95, 2,05, OU 2,15 mm
(0,077, 0,081, OU 0,085 in)
DRUCKSCHEIBE
1,95, 2,05, ODER 2,15 mm
(0,077, 0,081, ODER 0,085 in)
HINTERRADSCHWINGE
1. Bearing
1. Roulement
1. Lager

Yamaha XZ550 1982 Specifications

General

Year	1982
Manufacturer	Yamaha
Model	XZ550
Category	Motorcycle
Compression Ratio	10.0:1
Starting	Electric
Transmission	5-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Front Brake	Dual disc
Rear Brake	Single disc
Front Tire	100/90-18
Rear Tire	120/90-18
Engine Type	V-twin, four-stroke
Displacement	549 cc
Maximum Power	64 hp @ 9, 500 rpm
Maximum Torque	50 Nm @ 7500 rpm
Fuel System	Carburetor
Rear Suspension	Dual shock
Seat Height	790 mm
