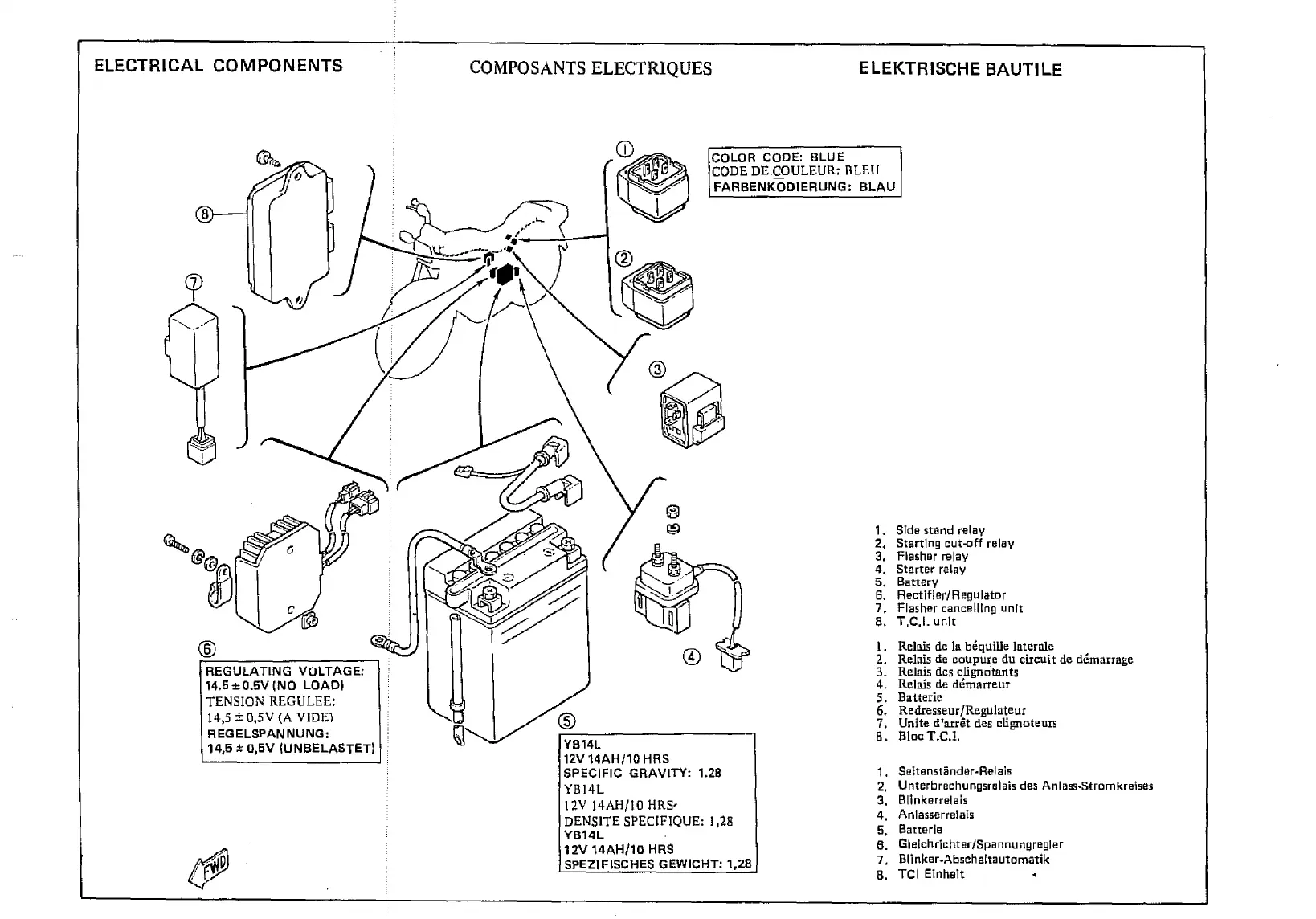

ELECTRICAL COMPONENTS

COMPOSANTS ELECTRIQUES

ELEKTRISCHE BAUTILE
COLOR CODE: BLUE
CODE DE COULEUR; BLEU
FARBENKODIERUNG: BLAU
REGULATING VOLTAGE:
14.5 ± 0.5V (NO LOAD)
TENSION REGULEE:
14,5 ± 0,5V (A VIDE)
REGELSPANNUNG:
14,5 ± 0,5V IUNBELASTET)
YB14L
12V 14AH/10 HRS
SPECIFIC GRAVITY: 1.28
YBI4L
12V 14AH/10 FIRS ,
DENSITE SPECIFIQUE: 1,28
YB14L
12V 14AH/10 HRS
SPEZIFISCHES GEWICHT: 1,28
1.
Side stand relay
2.
Starting cut-off relay
3.
Flasher relay
4.
Starter relay
5. Battery
6.
Rectifier/Regulator
7. Flasher cancelling unit
8. T.C.I. unit
1. Relais de la bequille laterale
2. Relais de coupure du circuit de dernarrage
3. Relais des clignotants
4.
Relais de denuirreur
5.
Batterie
6.
Redresseur/Regulateur
7, Unite d'arret des clignoteurs
B. Bloc T.C.I,
1, Seltenstgnder-Relais
2. Unterbrechungsrelais des Anlass-Stromkreises
3, Blinkerrelais
4. Anlasserrelais
5, Batterie
6. Gleichrichter/Spannuneregler
7, Blinker-Abschaltautomatik
B. TCI Einheit

Yamaha XZ550 1982 Specifications

General

Year	1982
Manufacturer	Yamaha
Model	XZ550
Category	Motorcycle
Compression Ratio	10.0:1
Starting	Electric
Transmission	5-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Front Brake	Dual disc
Rear Brake	Single disc
Front Tire	100/90-18
Rear Tire	120/90-18
Engine Type	V-twin, four-stroke
Displacement	549 cc
Maximum Power	64 hp @ 9, 500 rpm
Maximum Torque	50 Nm @ 7500 rpm
Fuel System	Carburetor
Rear Suspension	Dual shock
Seat Height	790 mm
