YASKAWA L1000A CIMR-LC F Series User Manual

2 Brake Monitoring (Unintended Car Movement)
10 YASKAWA TOEPC710616134G AC Drive L1000A Technical Manual Addendum

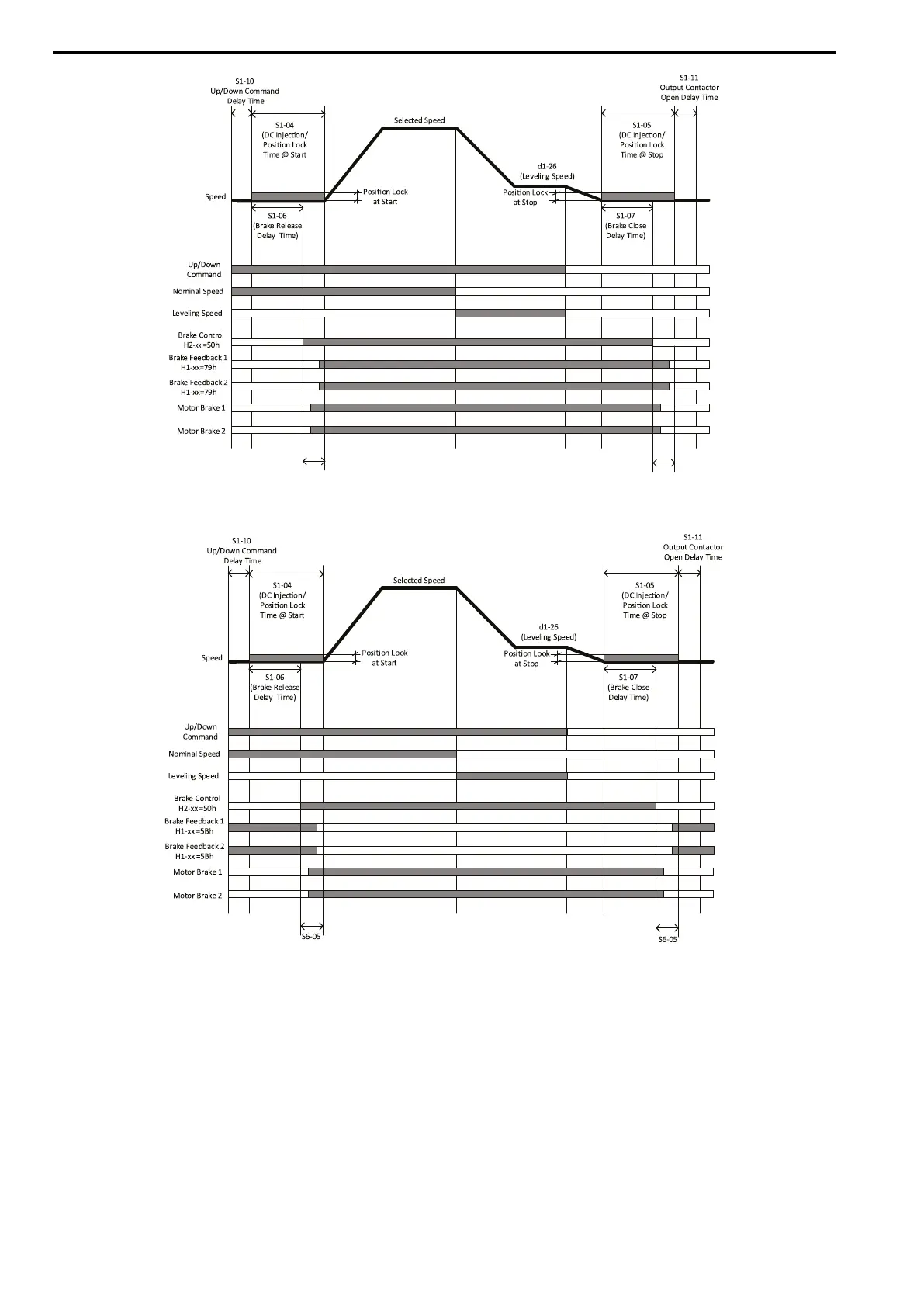

Figure 2.2 Normal Operation with MFDOs set to 79h (N.O.)
Figure 2.3 Normal Operation with MFDOs set to 5Bh (N.C.)
Fault During Start or Stop
If both Brake Feedback Inputs do not change their logic state within the time set in parameter S6-05, the drive
stops the start/stop sequence and triggers an SE4 [Brake Response Error] fault.
S 6 - 05
S 6 - 05
