YASKAWA SGDA series User Manual

USING THE DIGITAL OPERATOR

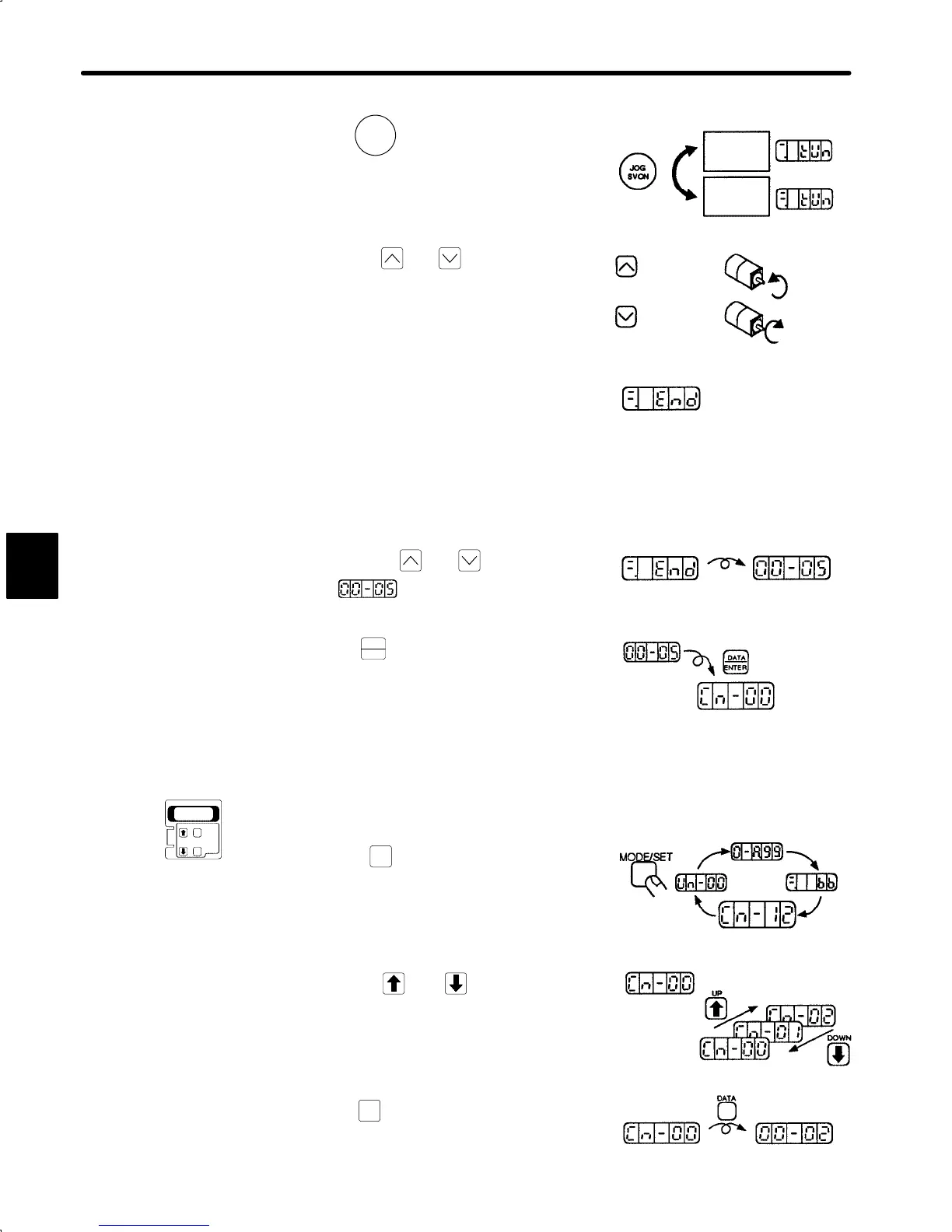

4.2.3 Autotuningcont.
192
8) Press
JOG
SVON
to set the servo ON status.
Select Servo ON/Servo OFF
9) Press the
and keys to operate the
motor.
Motor Forward/Reverse Rotation
10) When autotuning is complete, the END
message is displayed, as shown to the
right.
Servo OFF status is automatically se-
lected. If Servo ON/Servo OFF is selected
by a signal from an external contact, turn
this signal OFF.
11) Release the
and keys to revert to
the
display.
12) Press
DATA
ENTER
to return to the setting mode
display. This ends the autotuning opera-
tion.
• Refer to sub-section 3) on page 194 for the precautions relating to autotuning.
For JUSP-OP03A
1) Press
MODE/SET
to select the user constant
setting mode.
2) Press the
UP
and
DOWN
keys to select the
user constant number Cn-00.
(User constant Cn-00 is selected when the
power is turned ON.)
3) Press
DATA
to display the current data for
the user constant Cn-00.
4
to change.
Servo ON
- motor ON
Servo OFF
- base block
Press
Motor runs
forward while
this key is
pressed.
Motor runs
backward while
this key is
pressed.
Motor
Forward
Rotation
Motor
Reverse
Rotation
Autotuning Complete
Setting Mode Display
JUSP-OP03A
Setting Mode
Select Cn-00.
User Constant Number
Data
