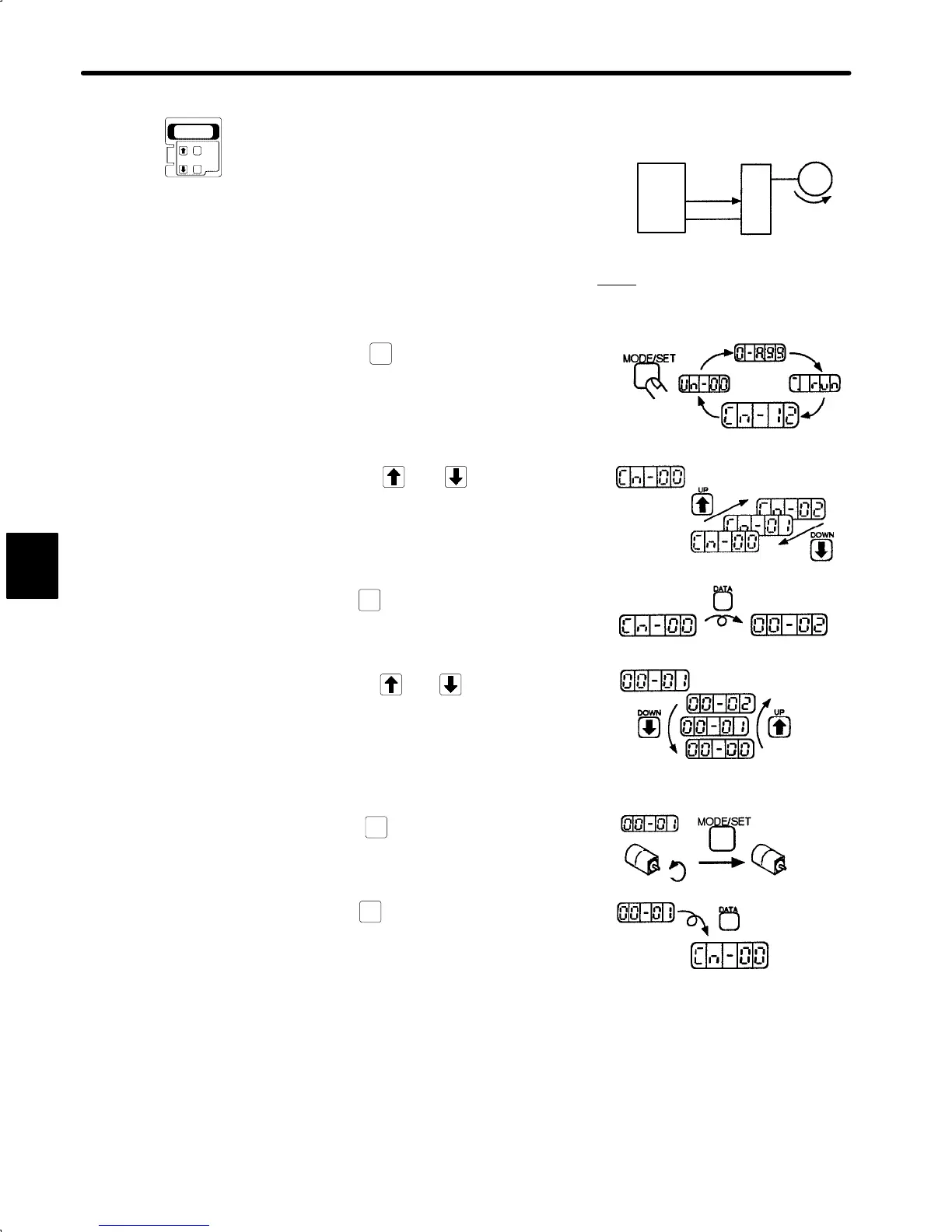

USING THE DIGITAL OPERATOR
4.2.4 Reference Offset Automatic Adjustmentcont.
198
For JUSP-OP03A
1) Follow the procedure below to set the mo-
tor into operating mode.
(1) Input the (intended) 0V reference voltage
from the host controller or external circuit.
(2)Then, turn ON the servo ON (1CN-14, S-ON
) signal.
2) Press
MODE/SET
to select the user constant
setting mode.
3) Press the
UP
and
DOWN
keys to select the
user constant number Cn-00.
(User constant Cn-00 is selected when the
power is turned ON.)
4) Press
DATA
to display the current data for
the user constant Cn-00.
5) Press the
UP
and
DOWN
keys to change the
data to 01.
6) Press
MODE/SET
to automatically adjust the
reference offset. The motor rotation stops.
7) Press
DATA
to return to the setting mode
display. This ends reference offset auto-
matic adjustment.
4
JUSP-OP03A
Host
Controller
0 V Speed
Reference
or Torque
Reference
Servo ON
Motor
Slow Rotation
Servopack
Setting Mode
Select Cn-00.
User Constant Number Data
Set to 00-01.
Value changes
rapidly when key
held down.
Slow
Rotation
Motor Stops
Setting Mode Display
To Next Page
