USING THE DIGITAL OPERATOR
4.2.5 Speed Reference Offset Manual Adjustment Modecont.
200
2) Follow the procedure below to manually adjust the reference voltage.
For JUSP-OP02A-1
1) Press
DSPL
SET
to select the user constant
setting mode.
2) Select the user constant number Cn-00.
(User constant Cn-00 is selected when the
power is turned ON.)
Press the
and keys to select the
digit.
Press
and keys to change the
value.
3) Press
DATA
ENTER
to display the current data for
the user constant Cn-00.
4) Press the
and keys to change the
data to 03.
5) Press
DSPL
SET
to select the speed refer-
ence offset manual adjustment mode.
(The amount of speed reference offset is
displayed.)
6) Press the
and keys to adjust the
amount of offset.
(Adjust the speed references.)
7) Press
DSPL
SET
to return to the user constant
data display.
8) Press
DATA
ENTER
to return to the setting mode
display. This ends the reference offset
manual adjustment.
4

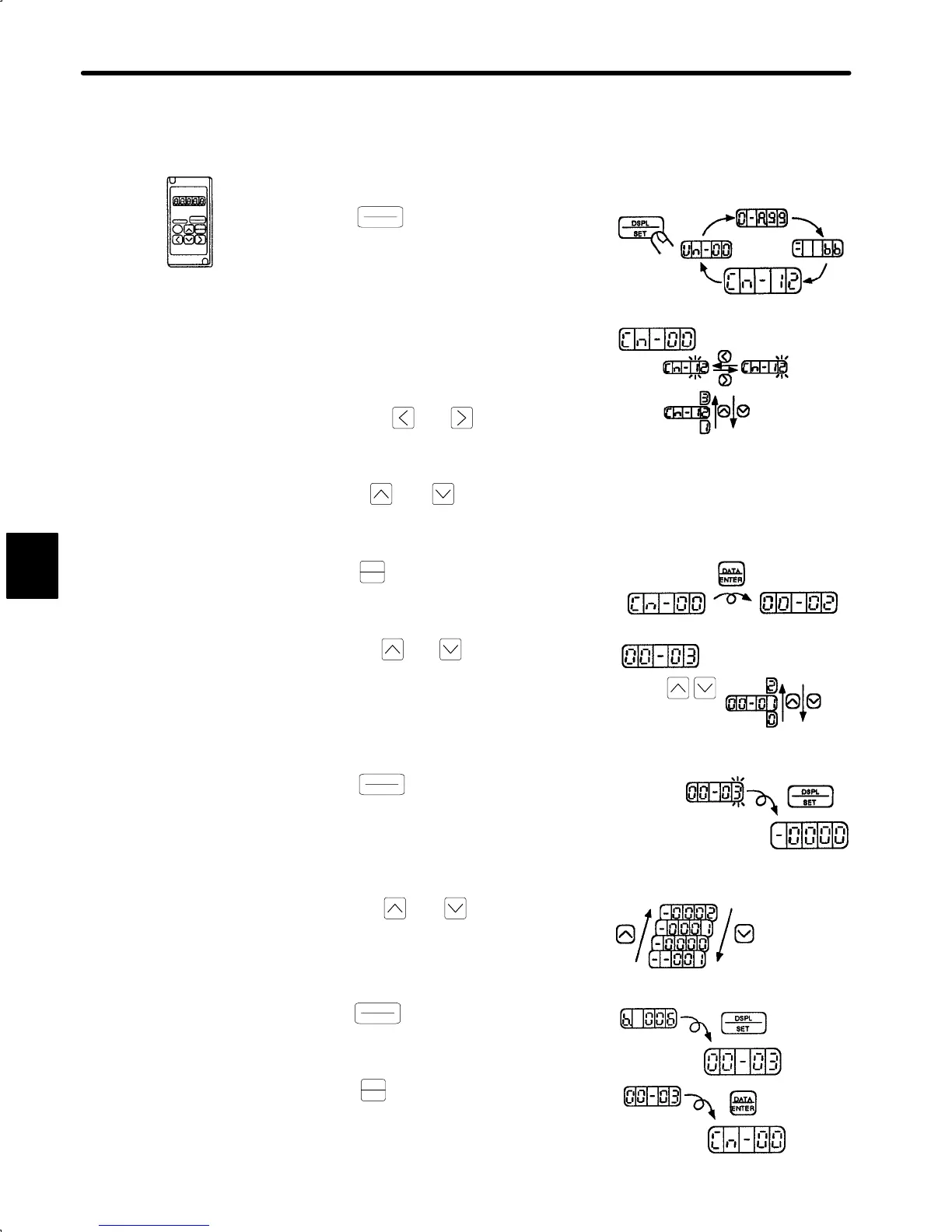

JUSP-OP02A-1
Setting Mode
Select Cn-00.
The selected digit
flashes.
User Constant Number
Data
Set to 00-03.
keys to change the
value.
Press the
Speed Reference Offset
Manual Adjustment Mode
Setting Mode Display
