SERVO SELECTION AND DATA SHEETS
5.2.1 Ratings and Specificationscont.
224

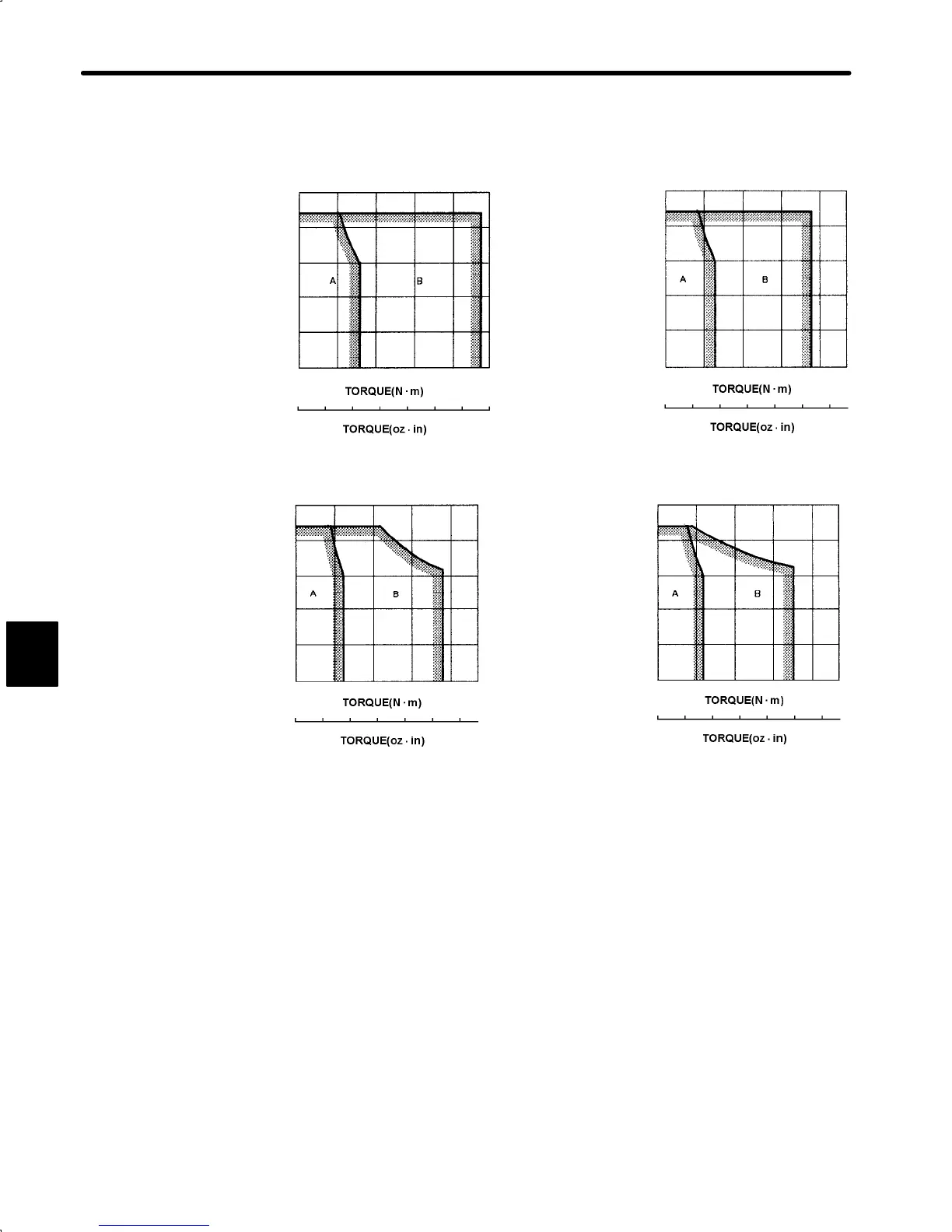

J 200-VAC SGMP Servomotor Torque-Motor Speed Characteristics
SGMP-01A
SGMP-02A
SGMP-04A
SGMP-08A
Motor
Speed
(r/min)
Motor
Speed
(r/min)
Motor
Speed
(r/min)
Motor
Speed
(r/min)
4000
3000
2000
1000
0
0 0.2 0.4 0.6 0.8
0 40 80 120
4000
3000
2000
1000
0
0 0.5 1 1.5 2
0 100 200 300
4000
3000
2000
1000
0
01 23 4
0 200 400 600
4000
3000
2000
1000
0
0246 8
0 400 800 1200
A: Continuous Duty Zone
B: Intermittent Duty Zone
5
