2.3 Connection and Wiring
31

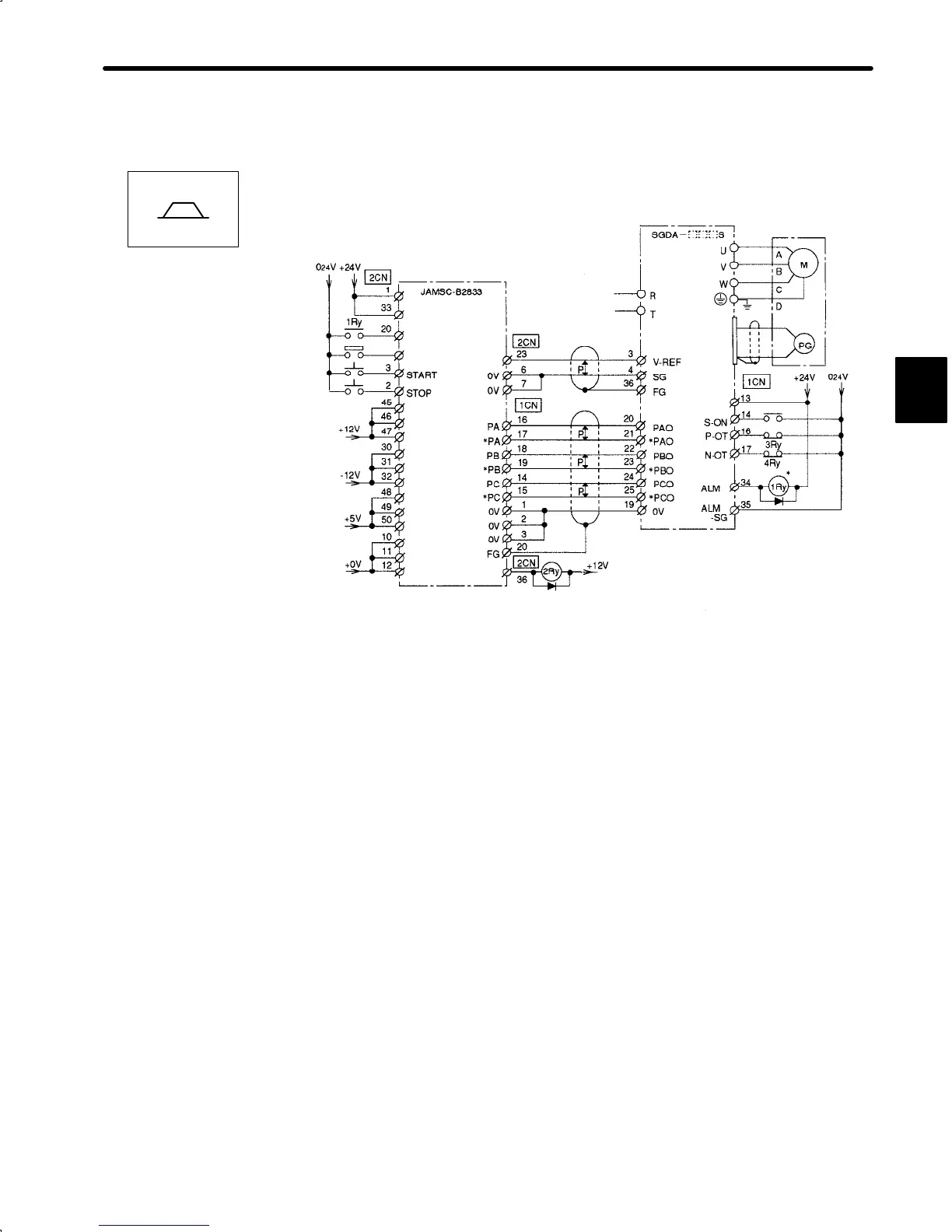

3) Example of Connecting to GL-Series Positioning Module B2833
Servopack for Speed/Torque Control
*1
(MADE BY YASKAWA)
SERVO NORMAL
DECEL LS
D/A OUTPUT
ALARM
SERVOPACK
* These signals are output for approximately
two seconds when the power is turned ON.
Take this into consideration when designing a
power ON sequence.
Relay 1Ry is used to stop main circuit power
supply to the Servopack.
35
2
SGDA-jjj S
Speed/Torque
