2.3 Connection and Wiring
33

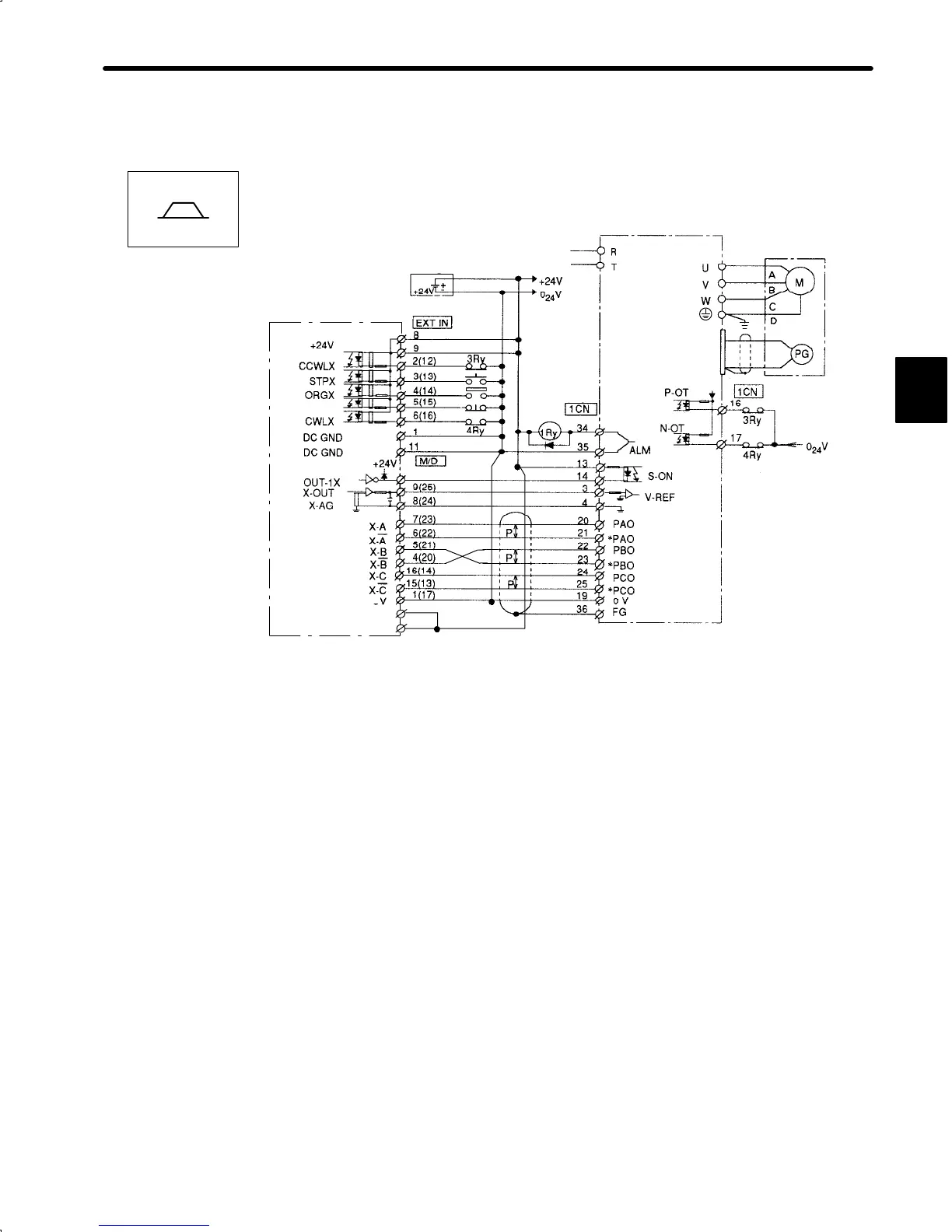

5) Example of Connecting to OMRON Position Control Unit C500-NC222
Servopack for Speed/Torque Control
C500-NC222
(MADE BY OMRON)
I/O POWER
SUPPLY
X-AXIS (Y-AXIS)
(ON when
positioning is
stopped)
(ON when
proximity is
detected)
Servopack
*1 These signals are output for approximately two seconds when the power is turned
ON. Take this into consideration when designing a power ON sequence. Relay 1Ry is
used to stop main circuit power supply to Servopack.
Note The signals shown here are applicable only to OMRON Sequencer
C500-NC222 and Yaskawa Servopack SGDA-VVVS.
SERVOX
*1
0
11
12
2 (3)
SGDA-VVVS
2
SGDA-jjj S
Speed/Torque
To Next Page
