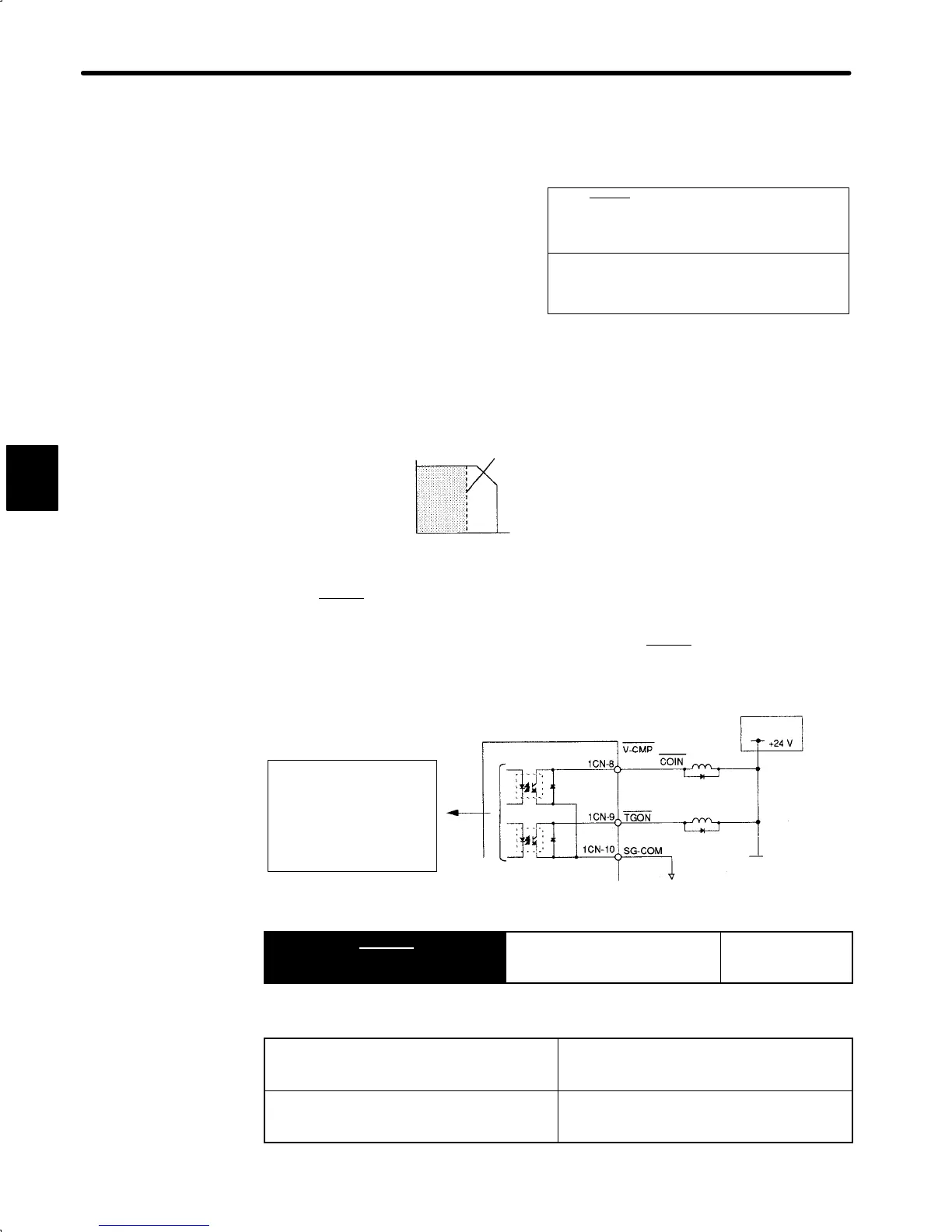

APPLICATIONS OF Σ-SERIES PRODUCTS
3.1.3 Restricting Torquecont.
60
Sets the maximum torque values for
forward rotation and reverse rotation,
respectively.
Sets these user constants when torque
must be restricted according to ma-
chine conditions.
This torque restriction function always
monitors torque, and outputs the signal
shown on the right when the limit value
is reached.
Specifies a torque limit value in terms of
a percentage of the rated torque.
Output Signal for Torque Restric-
tion Function
D TGON
(1CN-9)
D Status indication mode bit data
D Monitor mode (Un-05) bit 4
User Constant Setting:
Memory switch (Cn-01) bit 4 = 1
Example of Use: Machine Protection
Motor speed
Torque limit
Torque
Note that too small a torque limit val-
ue will result in torque shortage at ac-
celeration or deceleration.
• Using TGON
Signal
This section describes how to use contact output signal TGON
as a torque limit output
signal.
Photocoupler Output
Per output:
Maximum operation
voltage: 30 VDC
Maximum output
current: 50 mA DC
Servopack
I/O power
supply
or
Output → TGON 1CN-9
Torque Limit Output (Running
Output)
For Speed/Torque
Control and
Position Control
This signal indicates whether motor output torque (current) is being restricted.
ON status: The circuit between 1CN-9 and
1CN-10 is closed.
1CN-9 is at low level.
Motor output torque is being restricted.
(Internal torque reference is greater than the
preset value.)
OFF status: The circuit between 1CN-9 and
1-CN10 is open.
1CN-9 is at high level.
Motor output torque is not being restricted.
(Internal torque reference is equal to or below
the preset value.)
