4 Trial Operation
4.6.3 Operating Procedure
4-14
4.6.3 Operating Procedure

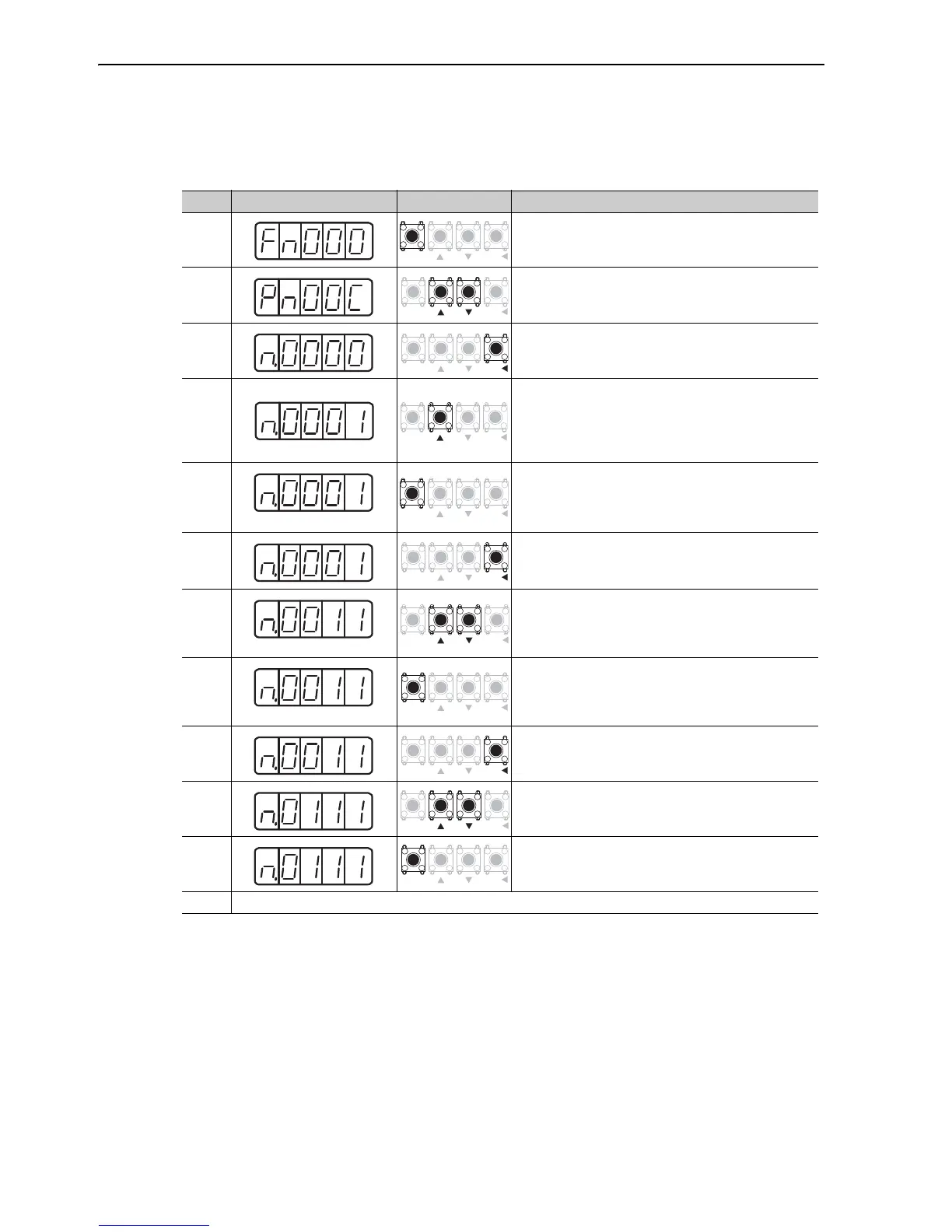

Follow the steps below to execute the test without motor using panel operator.
Step Display after Operation Keys Description
1
Press the MODE/SET Key to select the utility function
mode.
2 Press the UP or DOWN Key to select the Pn00C.
3
Press the DATA/SHIFT Key for approximately one sec-
ond. The current data of Pn00C is displayed.
4
To enable the test without motor, press the UP Key to
change the setting from n.0 (factory setting) to
n.1.
n.0: Test without motor disabled.
n.1: Test without motor enabled.
5
(Display blinks)
Press the MODE/SET Key. The display began to blink
and the test without motor is enabled.
6
Press the DATA/SHIFT Key once to select the first digit
of the data.
7
Press the UP or DOWN Key to select the encoder resolu-
tion.
n.0 : 13 bit (factory setting)
n.1 : 20 bit
8
(Display blinks)
Press the MODE/SET Key. The display began to blink
and the encoder resolution is set to 20 bit.
9
Press the DATA/SHIFT Key once to select the second
digit of the data.
10
Press the UP or DOWN Key to select the encoder type.
n.0 : incremental encoder (factory setting)
n.1 : absolute encoder
11
Press the MODE/SET Key. The display began to blink
and the incremental encoder is selected.
12 To enable the change in the setting, turn the power OFF and ON again.
To Next Page
