2.5 How to Read a Parameter Explanation
2-5
2
Panel Operator
2.5 How to Read a Parameter Explanation

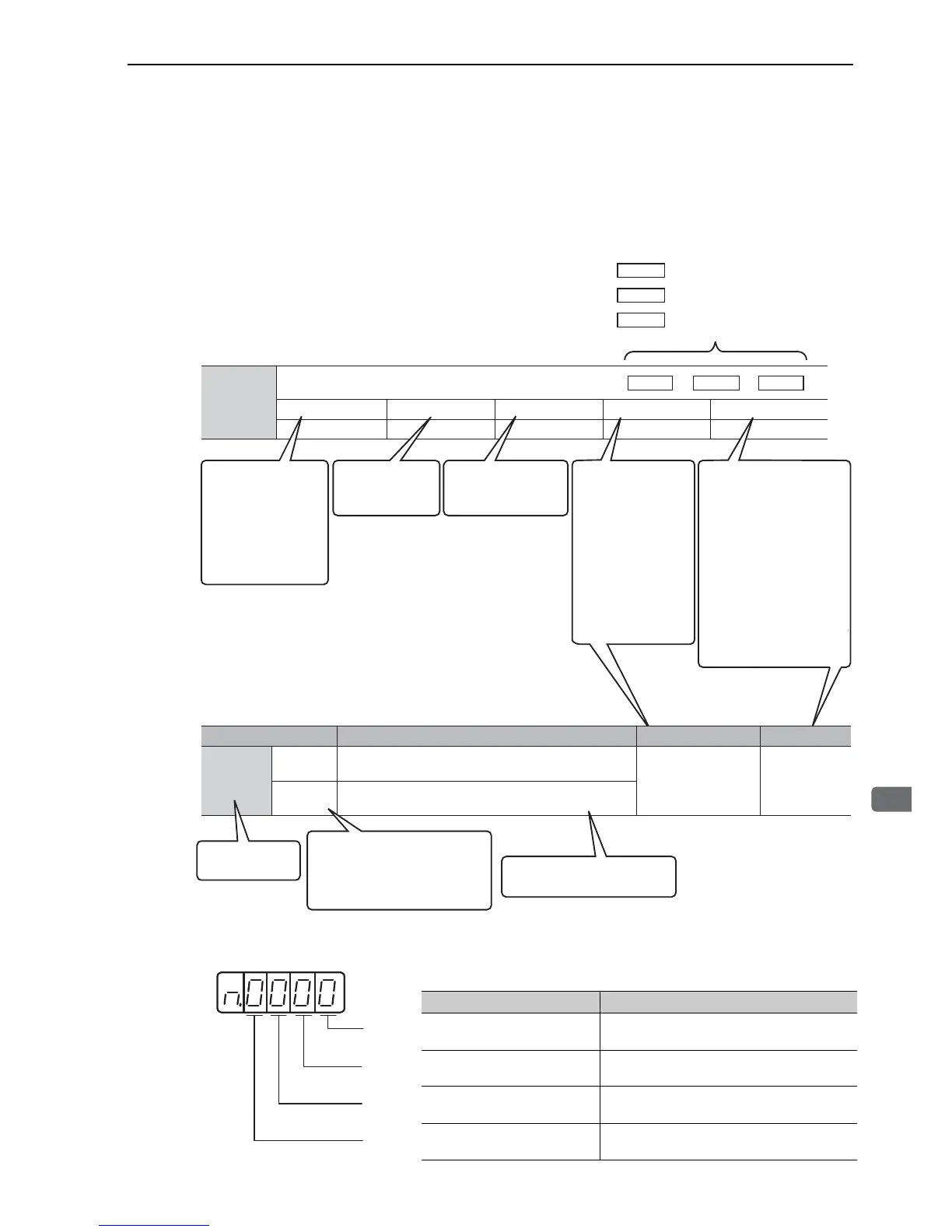

In this manual, each parameter is explained using the following example.
2.5.1 Explanation Method for Parameter Setting Type
Parameters of the function selection type are used to select and set the function allocated to each digit dis-
played on the panel operator. Each digit is expressed as explained below.
Pn406
Emergency Stop Torque
Setting Range
0 to 800 1% 800 After restart
Setting Unit Factory Setting When Enabled
Setup
Classification
Position
Speed
Torque
Position
Torque
Control mode for which the parameter is
available
Speed
: Speed control and
internally set speed control
: Position control
: Torque control
Indicates setting range
for the parameter.
The range is decided
so that the maximum
value can be set even
in combination with a
servomotor with
different specifications.
Indicates minimum
setting unit for the
parameter.
Indicates parameter
value before shipment
(Factory setting).
Indicates if the power
has to be turned OFF
and ON again to
validate setting
changes.
"After restart"
indicates the change
will be effective after
turning OFF the power
and ON again, or
resetting software
(Fn030).
"Setup" indicates the
parameter used for basic
setting for operation.
"Tuning" indicates the
parameter used for tuning
of servo performance.
Note: The parameters clas-
sified as "tuning" are
not displayed at ship-
ment. For displaying
the tuning parameters,
refer to (3) Explanation
Method for Tuning
Parameters.
Pn50A
n.2
n.8
Parameter Meaning ClassificationWhen Enabled
Input the forward run prohibited signal (P-OT) from
CN1-42 (Factory setting).
SetupAfter restart
Forward run prohibited signal (P-OT) is disabled
(Forward rotation allowed).
The number of the
parameter
This section explains the
details of the function selection.
This blank shows the setting
value of the function selection,
as well as the status condition
on the panel operator and the
digital operator (JUSP-OP05A).
2.5.2 Explanation Method for Function Selection Type
refer to 2.5.3 .
Display Example for Pn000
Indications Meaning
Pn000.0 or n.x
Indicates the value for the 1st digit of
parameter Pn000.
Pn000.1 or n.x
Indicates the value for the 2nd digit of
parameter Pn000.
Pn000.2 or n.x
Indicates the value for the 3rd digit of
parameter Pn000.
Pn000.3 or n.x
Indicates the value for the 4th digit of
parameter Pn000.
1st digit
2nd digit
3rd digit
4th digit
